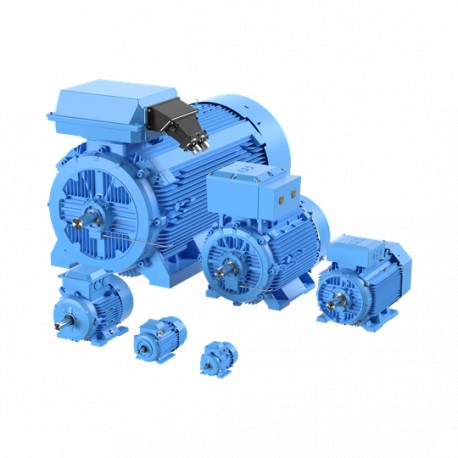

M3JP 400LA 3GJP403510-BDK ABB No Description Available

Additional Information

• ABB Type Designation:

  M3JP 400LA 6


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6324/C3


• Bearing NDE:

  6319/C3


• Country of Origin:

  Finland (FI)


• Customs Tariff Number:

  85015394


• EX-Protection:

  Exdb


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	T4	50 Hz	690 V	400.00 kW	993 r/min	424.00 A	0.820	95.80 %	3846.00 N·m	7.10
  D	T4	50 Hz	400 V	400.00 kW	993 r/min	731.00 A	0.820	95.80 %	3846.00 N·m	7.10
  D	T4	50 Hz	415 V	400.00 kW	994 r/min	719.00 A	0.800	95.80 %	3844.00 N·m	7.70
  D	T4	60 Hz	460 V	400.00 kW	1194 r/min	637.00 A	0.820	95.80 %	3200.00 N·m	8.20

• Gas Group:

  IIB


• Gross Weight:

  3220kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 95.8 %
  Partial Load (75%) 95.6 %
  Partial Load (50%) 95.0 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 95.8 %
  Partial Load (75%) 95.6 %
  Partial Load (50%) 94.8 %


• IM Class:

  IMB5 IM3001


• IP Rating:

  IP55


• Insulation Class:

  ICLF


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  6


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  3180kg


• Product Type:

  3JP3__M3JP_IE3_Flameproof_Exd_motor


• Quote Only:

  No


• SCIP:

  297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland (FI)


• Selling Unit of Measure:

  piece


• Temperature Class Default:

  T4


• Terminator Box Location:

  Top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
