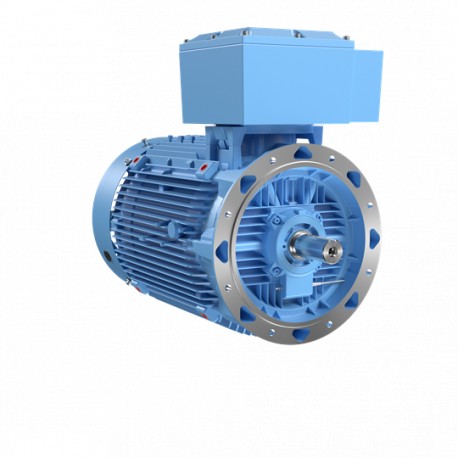

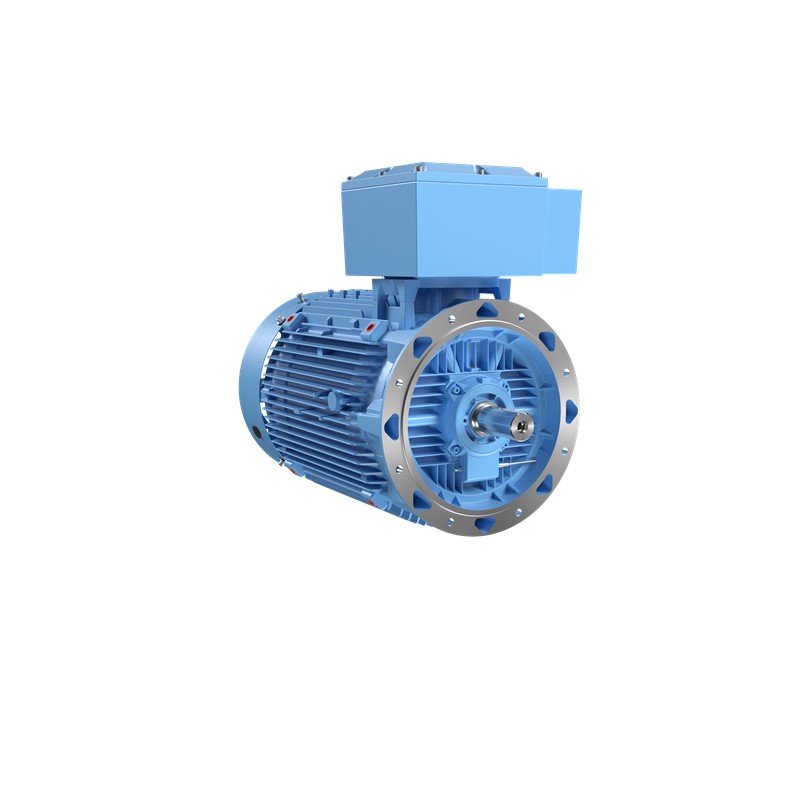

M3JP 355 LKA 3GJP352810-BDK ABB No Description Available

Additional Information

• ABB Type Designation:

  M3JP 355LKA 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6322/C3


• Bearing NDE:

  6316/C3


• Country of Origin:

  Finland (FI)


• Customs Tariff Number:

  85015394


• Direction of Rotation:

  Both sides


• EX-Protection:

  Exdb


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	T4	50 Hz	690 V	500.00 kW	1490 r/min	501.00 A	0.860	96.00 %	3204.00 N·m	6.80
  D	T4	50 Hz	400 V	500.00 kW	1490 r/min	865.00 A	0.860	96.00 %	3204.00 N·m	6.80
  D	T4	50 Hz	415 V	500.00 kW	1491 r/min	843.00 A	0.850	96.00 %	3202.00 N·m	7.30
  D	T4	60 Hz	460 V	500.00 kW	1791 r/min	763.00 A	0.850	96.20 %	2666.00 N·m	8.00

• Gas Group:

  IIB


• Gross Weight:

  0kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 96.0 %
  Partial Load (75%) 96.0 %
  Partial Load (50%) 95.1 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 96.2 %
  Partial Load (75%) 95.7 %
  Partial Load (50%) 94.4 %


• IM Class:

  IMB5 IM3001


• IP Class:

  IP55


• Insulation Class:

  ICLF


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  2690kg


• Product Type:

  3JP3__M3JP_IE3_Flameproof_Exd_motor


• Quote Only:

  No


• SCIP:

  297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland (FI)


• Selling Unit of Measure:

  piece


• Temperature Class Default:

  T4


• Terminator Box Location:

  Top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
