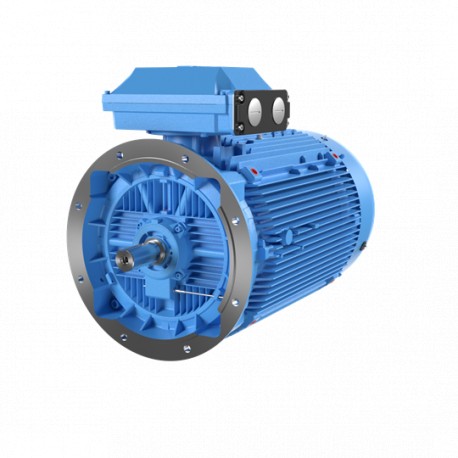

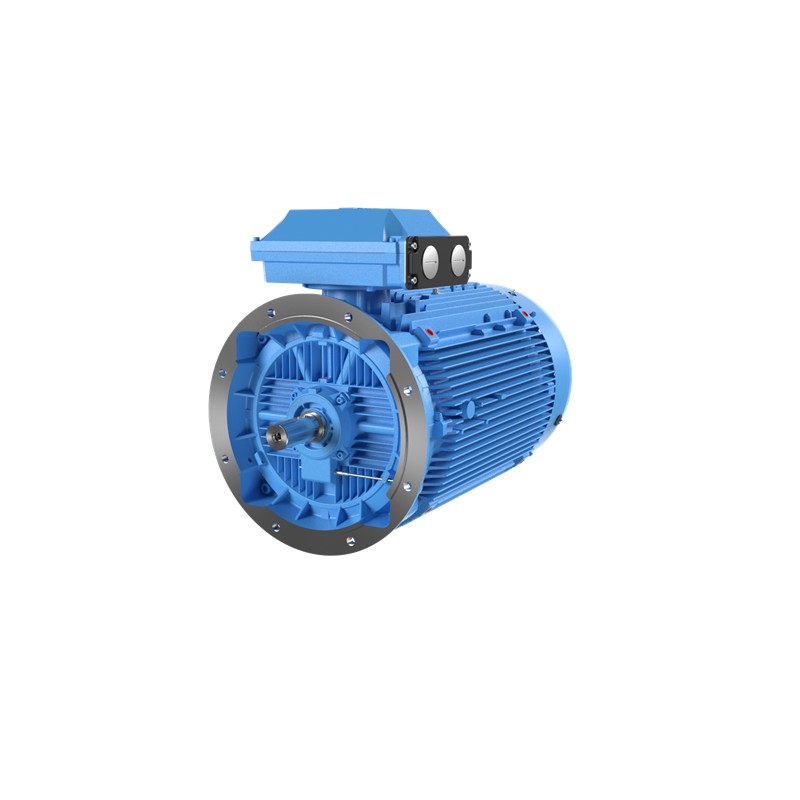

M3BP 355MLC 3GBP351430-BDM ABB No Description Available

Additional Information

• ABB Type Designation:

  M3BP 355MLC 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6316M/C3


• Bearing NDE:

  6316M/C3


• Country of Origin:

  Finland (FI)
  China (CN)


• Customs Tariff Number:

  85015394


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	450.00 kW	2983 r/min	431.00 A	0.900	96.50 %	1440.00 N·m	7.90
  D	--	50 Hz	400 V	450.00 kW	2983 r/min	743.00 A	0.900	96.50 %	1440.00 N·m	7.90
  D	--	50 Hz	415 V	450.00 kW	2985 r/min	725.00 A	0.900	96.50 %	1440.00 N·m	8.60

• Gross Weight:

  0kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE4
  Full Load (100%) 96.5 %
  Partial Load (75%) 96.5 %
  Partial Load (50%) 95.6 %


• IM Class:

  IMB5 IM3001


• IP Rating:

  IP55


• Insulation Class:

  ICLF


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  2080kg


• Product Type:

  3BP4__M3BP_IE4_CI


• Quote Only:

  No


• SCIP:

  54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)


• Selling Unit of Measure:

  piece


• Temperature Class Default:

  --


• Terminator Box Location:

  Top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
