ABBMotors for process industry M3BPIE3 71-250M3BP 180MLC 4 3GBP182430-ADK ABB Three-phase squirrel cage motor

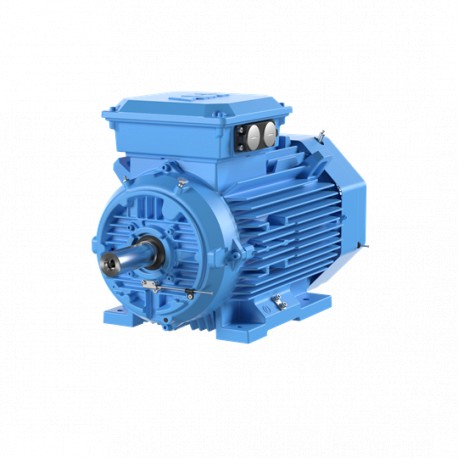

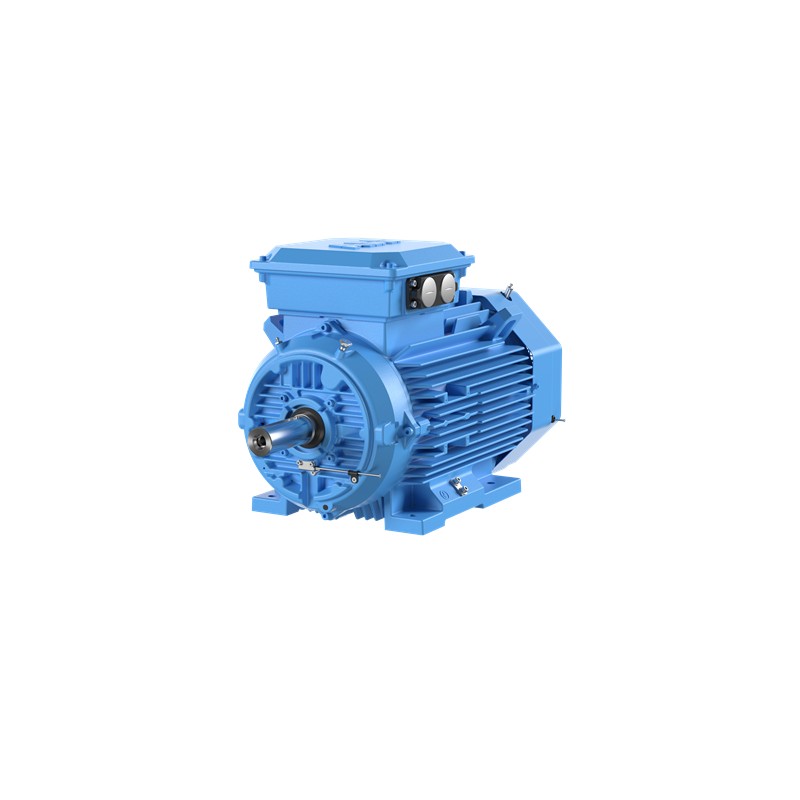

ABB M3BP 180MLC 4 3GBP182430-ADK - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

M3BP 180MLC 4 3GBP182430-ADK ABB Three-phase squirrel cage motor

Reference: M3BP 180MLC 4

Code: 3GBP182430-ADK

Manufacturer: ABB

Description:

Three-phase squirrel cage motor
IE3 Premium Efficiency Cast Iron Motor, 28 kW, 400 V (3GBP182430-ADK)

Categories:

  • ABB > Motors for process industry M3BP > IE3 71-250

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Product ID:
    3GBP182430-ADK
  • ABB Type Designation:
    M3BP 180MLC 4
  • Catalog Description:
    IE3 Premium Efficiency Cast Iron Motor, 28 kW, 400 V (3GBP182430-ADK)

Ordering

  • ABB Type Designation:
    M3BP 180MLC 4
  • Invoice Description:
    M3BP 180MLC 4
  • Product Name:
    3-Phase squirrel cage motor
  • Product Type:
    3BP3__M3BP_IE3_CI
  • Made To Order:
    No
  • Minimum Order Quantity:
    1 piece
  • Order Multiple:
    1 piece
  • Selling Unit of Measure:
    piece
  • Country of Origin:
    Finland (FI)
    China (CN)
    Poland (PL)
  • Customs Tariff Number:
    85015230
  • Stocked At (Warehouses):
    Menden, Germany

Electrical

  • Electrical Data:
    ConnTemp ClassFreqVoltagePowerSpeedCurrentPower FactorEfficiencyTorqueIS/IN
    Y--50 Hz690 V28.00 kW1482 r/min32.50 A0.77093.40 %180.37 N·m8.20
    D--50 Hz400 V28.00 kW1482 r/min56.50 A0.77093.40 %180.36 N·m8.20
    Y--50 Hz660 V28.00 kW1481 r/min32.00 A0.82093.40 %180.60 N·m7.90
    D--50 Hz380 V28.00 kW1480 r/min55.40 A0.82093.40 %180.62 N·m7.90
    D--50 Hz415 V28.00 kW1484 r/min58.80 A0.71093.40 %180.22 N·m8.20
    D--60 Hz460 V28.00 kW1786 r/min48.30 A0.77094.10 %149.75 N·m9.60
  • Connection Configuration:
    D
  • Temperature Class Default:
    --
  • Input Voltage (Uin):
    400 V
  • Frequency (f):
    50 Hz
  • Output Power:
    28 kW
  • Altitude:
    1000 m
  • Ambient Temperature:
    40 °C
  • IC Class:
    IC411
  • IE Class Data (50 Hz):
    IE Class IE3
    Full Load (100%) 93.4 %
    Partial Load (75%) 93.0 %
    Partial Load (50%) 91.7 %
  • IE Class Data (60 Hz):
    IE Class IE3
    Full Load (100%) 94.1 %
    Partial Load (75%) 93.7 %
    Partial Load (50%) 92.4 %
  • IP Class:
    IP55
  • Insulation Class:
    ICLF
  • Direction of Rotation:
    Both sides
  • Number of Poles (High):
    4
  • Two Speed Motor:
    No
  • Type of Duty:
    S1
  • Voltage Code:
    D

Mechanical

  • Frame Material:
    Cast Iron
  • Frame Size:
    180
  • Bearing:
    6310/C3
  • Bearing NDE:
    6209/C3
  • IM Class:
    IMB3 IM1001
  • Terminator Box Location:
    D-End top

Dimensions

  • Package Level 1 Units:
    0 pallet (lift)
  • Product Net Depth / Length:
    726mm
  • Product Net Height:
    461mm
  • Product Net Width:
    340mm
  • Product Net Weight:
    235kg
  • Gross Weight:
    245kg

Classifications

  • UNSPSC:
    26101100

Environmental

  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)
  • SCIP:
    54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)
