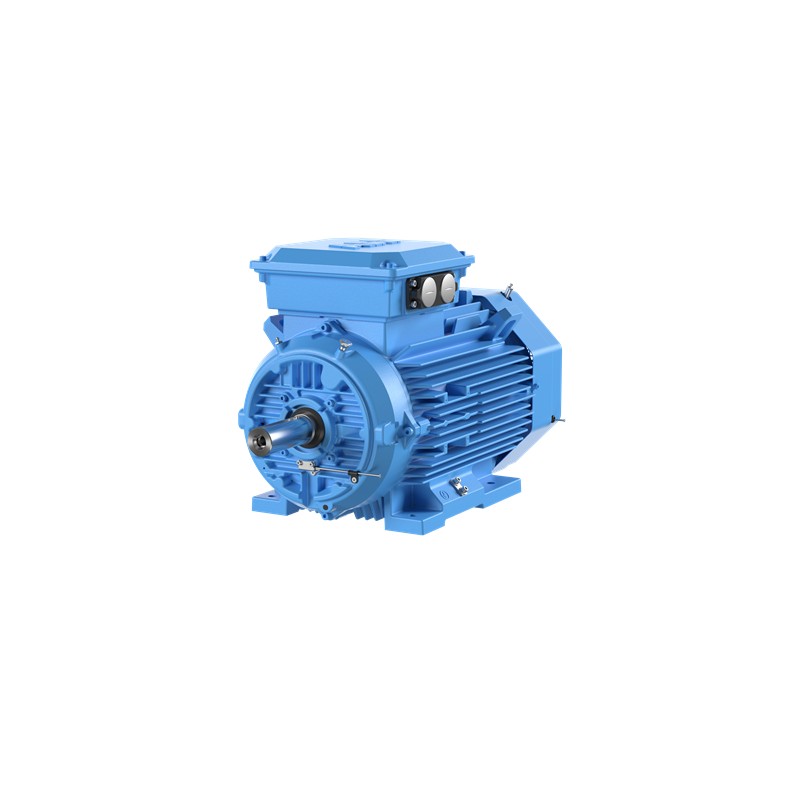

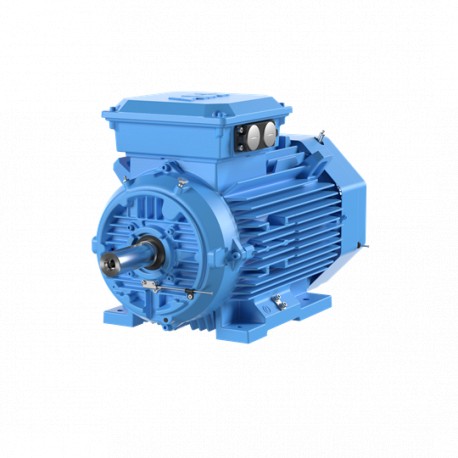

M3BP 180MLC 3GBP182430-ADM ABB IE4 Super Premium Efficiency Cast Iron Motors, 22 kW, 400 V (3GBP182430-ADM)

Additional Information

• ABB Type Designation:

  M3BP 180MLC 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6310/C3


• Bearing NDE:

  6209/C3


• Connection Configuration:

  D


• Country of Origin:

  Finland (FI)
  China (CN)
  Poland (PL)


• Customs Tariff Number:

  85015230


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	22.00 kW	1479 r/min	23.60 A	0.810	94.50 %	141.46 N·m	9.40
  D	--	50 Hz	400 V	22.00 kW	1479 r/min	40.70 A	0.810	94.50 %	141.46 N·m	9.40
  D	--	50 Hz	415 V	22.00 kW	1486 r/min	40.20 A	0.790	94.50 %	141.46 N·m	9.80
  D	--	60 Hz	460 V	22.00 kW	1787 r/min	35.90 A	0.820	94.50 %	141.46 N·m	10.70

• Frame Material:

  Cast Iron


• Frame Size:

  180


• Frequency (f):

  50 Hz


• Gross Weight:

  256.6kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE4
  Full Load (100%) 94.5 %
  Partial Load (75%) 94.4 %
  Partial Load (50%) 93.7 %


• IE Class Data (60 Hz):

  IE Class IE4
  Full Load (100%) 94.5 %
  Partial Load (75%) 94.5 %
  Partial Load (50%) 93.8 %


• IM Class:

  IMB3 IM1001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M3BP 180MLC 4


• IP Rating:

  IP55


• Made To Order:

  No


• Medium Description:

  22kW, 4 Poles, Frame Size 180, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBP182430-ADM)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Output Power:

  22 kW


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  726mm


• Product Net Height:

  461mm


• Product Net Weight:

  246.6kg


• Product Net Width:

  340mm


• Product Type:

  3BP4__M3BP_IE4_CI


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GBP182420-ADM


• SCIP:

  54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  22kW, 4P, Frame Size 180, 3PH, 400V, 50Hz, IP55, IMB3/IM1001


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
