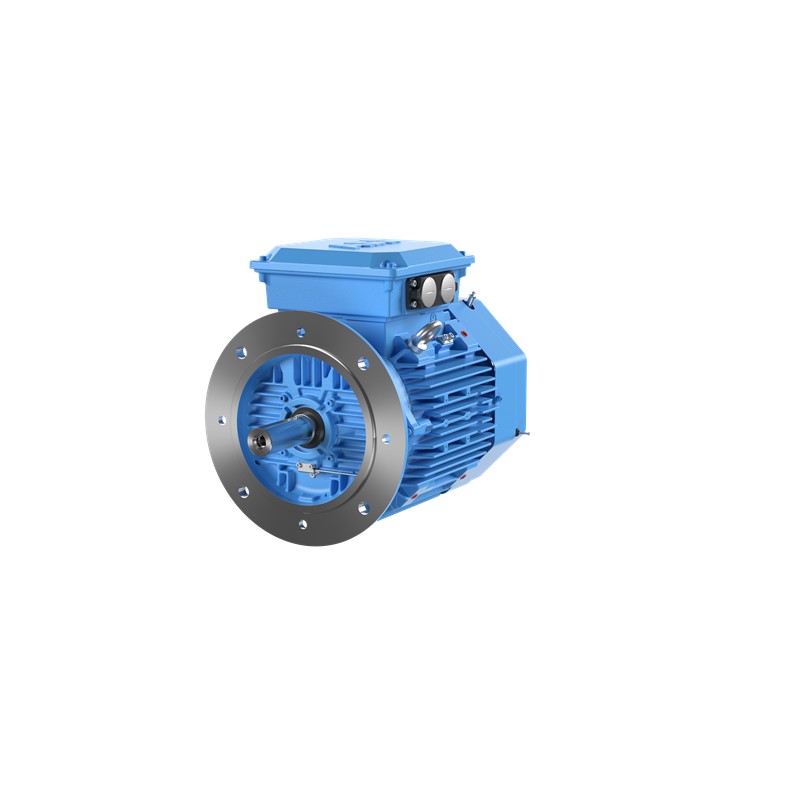

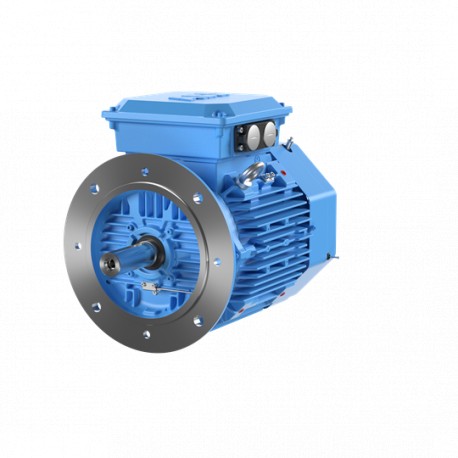

M3BP 160MLA 3GBP161410-ADM ABB No Description Available

Additional Information

• ABB Type Designation:

  M3BP 160MLA 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6309/C3


• Bearing NDE:

  6209/C3


• Country of Origin:

  Finland (FI)
  China (CN)


• Customs Tariff Number:

  85015230


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	11.00 kW	2953 r/min	11.30 A	0.880	92.60 %	35.57 N·m	8.30
  D	--	50 Hz	400 V	11.00 kW	2953 r/min	19.50 A	0.880	92.60 %	35.57 N·m	8.30
  D	--	50 Hz	415 V	11.00 kW	2957 r/min	18.50 A	0.900	92.60 %	35.57 N·m	9.30
  D	--	60 Hz	460 V	11.00 kW	3558 r/min	16.60 A	0.900	92.40 %	29.50 N·m	9.90

• Gross Weight:

  150.6kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE4
  Full Load (100%) 92.6 %
  Partial Load (75%) 92.9 %
  Partial Load (50%) 92.2 %


• IE Class Data (60 Hz):

  IE Class IE4
  Full Load (100%) 92.4 %
  Partial Load (75%) 92.4 %
  Partial Load (50%) 91.1 %


• IM Class:

  IMB3 IM1001


• IP Class:

  IP55


• Insulation Class:

  ICLF


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 pallet (lift)


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  140.6kg


• Product Type:

  3BP4__M3BP_IE4_CI


• Quote Only:

  No


• SCIP:

  54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)


• Selling Unit of Measure:

  piece


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  4. Large Equipment (Any External Dimension More Than 50 cm)
