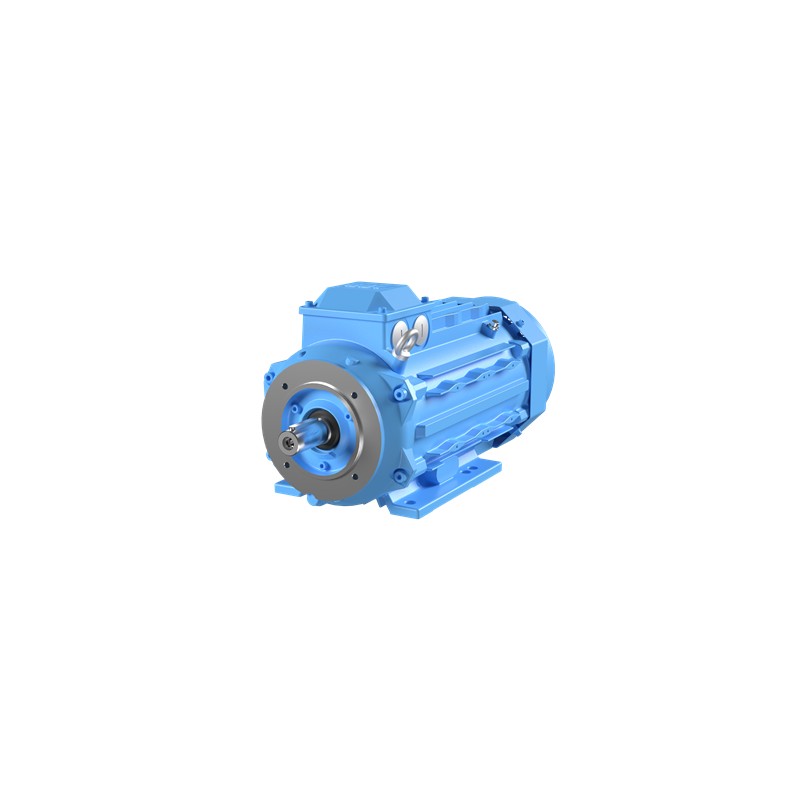

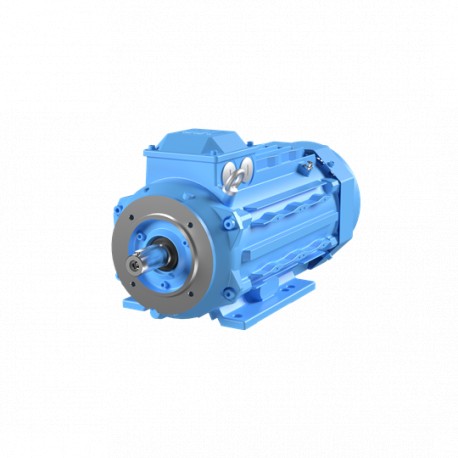

M3BP 100LKA 3GBP101810-BDM ABB No Description Available

Additional Information

• ABB Type Designation:

  M3BP 100LKA 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6206-2Z/C3


• Bearing NDE:

  6206-2Z/C3


• Country of Origin:

  Finland (FI)


• Customs Tariff Number:

  85015220


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	3.00 kW	2920 r/min	3.20 A	0.900	89.10 %	10.00 N·m	9.60
  D	--	50 Hz	400 V	3.00 kW	2920 r/min	5.41 A	0.900	89.10 %	10.00 N·m	9.60
  D	--	50 Hz	415 V	3.00 kW	2924 r/min	5.20 A	0.890	89.10 %	9.80 N·m	9.90
  D	--	60 Hz	460 V	3.00 kW	3518 r/min	4.90 A	0.890	89.50 %	8.40 N·m	11.30

• Gross Weight:

  62kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE4
  Full Load (100%) 89.1 %
  Partial Load (75%) 88.5 %
  Partial Load (50%) 85.8 %


• IE Class Data (60 Hz):

  IE Class IE4
  Full Load (100%) 89.5 %
  Partial Load (75%) 89.6 %
  Partial Load (50%) 88.1 %


• IM Class:

  IMB5 IM3001


• IP Rating:

  IP55


• Insulation Class:

  ICLF


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  57kg


• Product Type:

  3BP4__M3BP_IE4_CI


• Quote Only:

  No


• SCIP:

  54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland (FI)


• Selling Unit of Measure:

  piece


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100
  39120000


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
