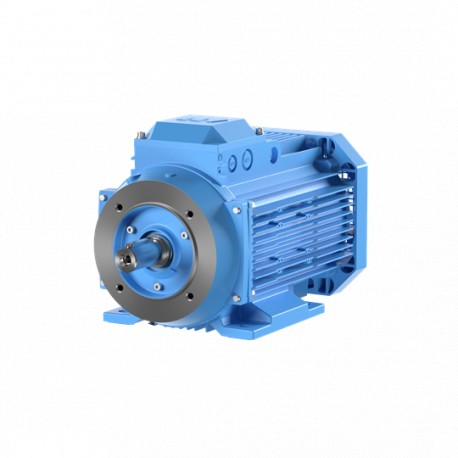

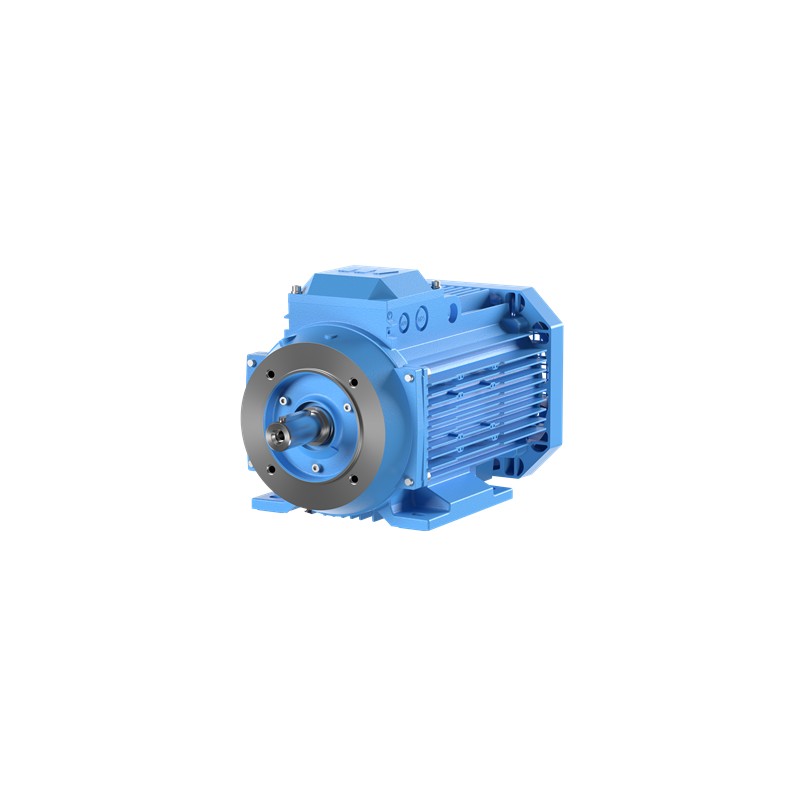

M3AA 80ME 4 3GAA082350-BSK843 ABB IE3 aluminum motor

Additional Information

• ABB Type Designation:

  M3AA 80ME 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6204-2Z/C3


• Bearing NDE:

  6203-2Z/C3


• Country of Origin:

  Romania (RO)


• Customs Tariff Number:

  85015100


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	400 V	0.75 kW	1440 r/min	1.68 A	0.760	82.60 %	4.90 N·m	7.90
  D	--	50 Hz	230 V	0.75 kW	1440 r/min	2.92 A	0.760	82.50 %	4.90 N·m	7.90
  Y	--	50 Hz	380 V	0.75 kW	1431 r/min	1.70 A	0.800	82.50 %	5.00 N·m	7.40
  D	--	50 Hz	220 V	0.75 kW	1431 r/min	2.93 A	0.800	82.50 %	5.00 N·m	7.40
  Y	--	50 Hz	415 V	0.75 kW	1445 r/min	1.67 A	0.740	82.50 %	4.90 N·m	8.30
  Y	--	60 Hz	460 V	0.75 kW	1748 r/min	1.48 A	0.740	85.50 %	4.00 N·m	9.50

• Gross Weight:

  16.5kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 82.5 %
  Partial Load (75%) 82.1 %
  Partial Load (50%) 79.4 %


• IE Class Data (60 Hz):

  IE Class IE4
  Full Load (100%) 85.5 %
  Partial Load (75%) 84.4 %
  Partial Load (50%) 81.6 %


• IM Class:

  IMB5 IM3001


• IP Rating:

  IP55


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 80ME 4


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Pre Modified Motor Product ID:

  3GAA082350-BSK


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  13.5kg


• Product Type:

  3AA3__M3AA_IE3_AA


• Quote Only:

  No


• Selling Unit of Measure:

  piece


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  S
