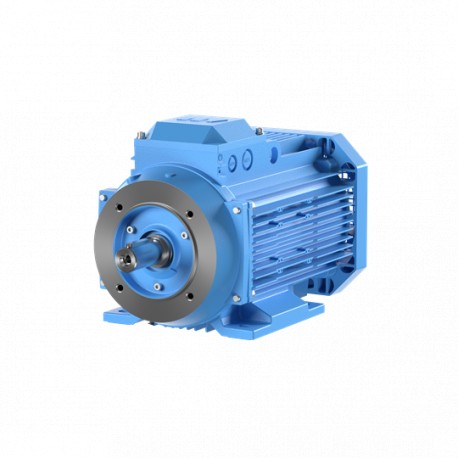

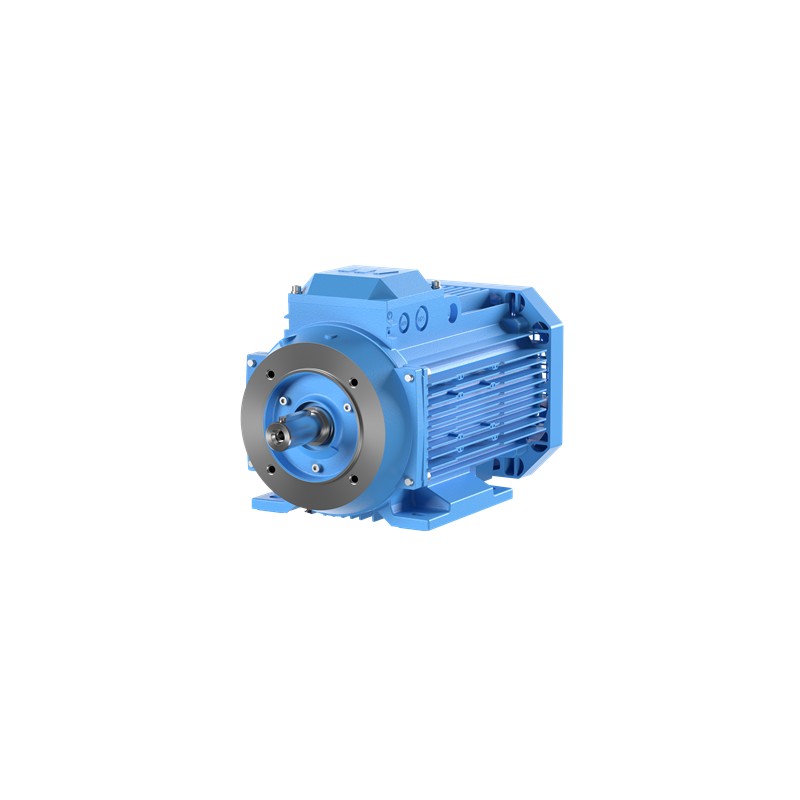

M3AA 80 C 3GAA083313-CDE ABB No Description Available

Additional Information

• ABB Type Designation:

  M3AA 80C 6


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6204-2Z/C3


• Bearing NDE:

  6203-2Z/C3


• Country of Origin:

  Romania (RO)


• Customs Tariff Number:

  85015100


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  D	--	50 Hz	400 V	0.55 kW	905 r/min	1.42 A	0.760	73.10 %	5.80 N·m	4.40
  D	--	60 Hz	460 V	0.55 kW	1123 r/min	1.24 A	0.710	68.00 %	4.67 N·m	5.30

• Gross Weight:

  18kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 73.1 %
  Partial Load (75%) 75.9 %
  Partial Load (50%) 75.1 %


• IE Class Data (60 Hz):

  IE Class IE2
  Full Load (100%) 68.0 %
  Partial Load (75%) 69.2 %
  Partial Load (50%) 66.0 %


• IM Class:

  IMB14 IM3601


• IP Class:

  IP55


• Insulation Class:

  ICLF


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  6


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Pre Modified Motor Product ID:

  3GAA083313-BDE


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  15kg


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• SCIP:

  27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)


• Selling Unit of Measure:

  piece


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  Top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D
