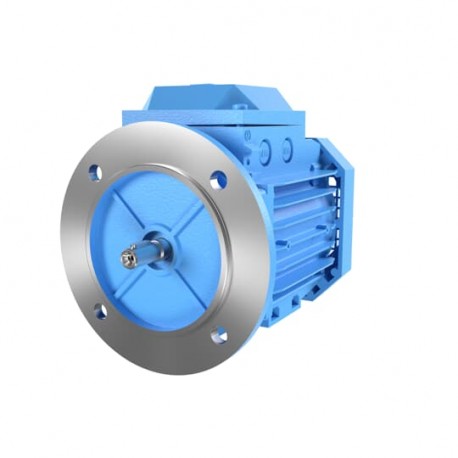

M3AA 80 A 3GAA062312-BDF ABB No Description Available

Additional Information

• ABB Type Designation:

  M3AA 63B 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6201-2Z/C3


• Bearing NDE:

  6201-2Z/C3


• Country of Origin:

  China (CN)


• Customs Tariff Number:

  85015100


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	0.18 kW	1380 r/min	0.34 A	0.680	65.90 %	1.25 N·m	3.60
  D	--	50 Hz	400 V	0.18 kW	1380 r/min	0.58 A	0.680	65.90 %	1.25 N·m	3.60
  D	--	60 Hz	460 V	0.18 kW	1700 r/min	0.53 A	0.620	69.70 %	1.00 N·m	3.50

• Gross Weight:

  5.4kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 65.9 %
  Partial Load (75%) 64.1 %
  Partial Load (50%) 57.4 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 69.7 %
  Partial Load (75%) 67.3 %
  Partial Load (50%) 60.0 %


• IM Class:

  IMB5 IM3001


• IP Rating:

  IP55


• Insulation Class:

  ICLF


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  4.4kg


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA062312-BFC
  3GVA062002-BDC
  3GAA062002-BDC
  3GAA062062-BDA
  3GAA062002-BDE


• Selling Unit of Measure:

  piece


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D
