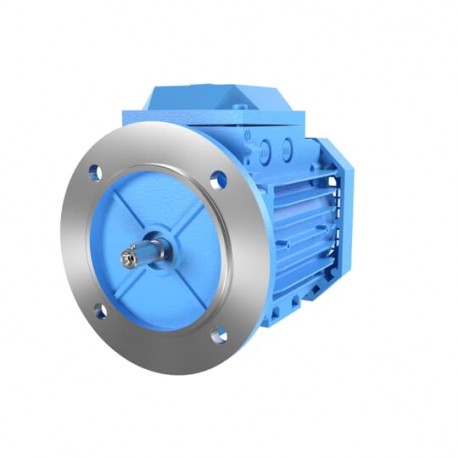

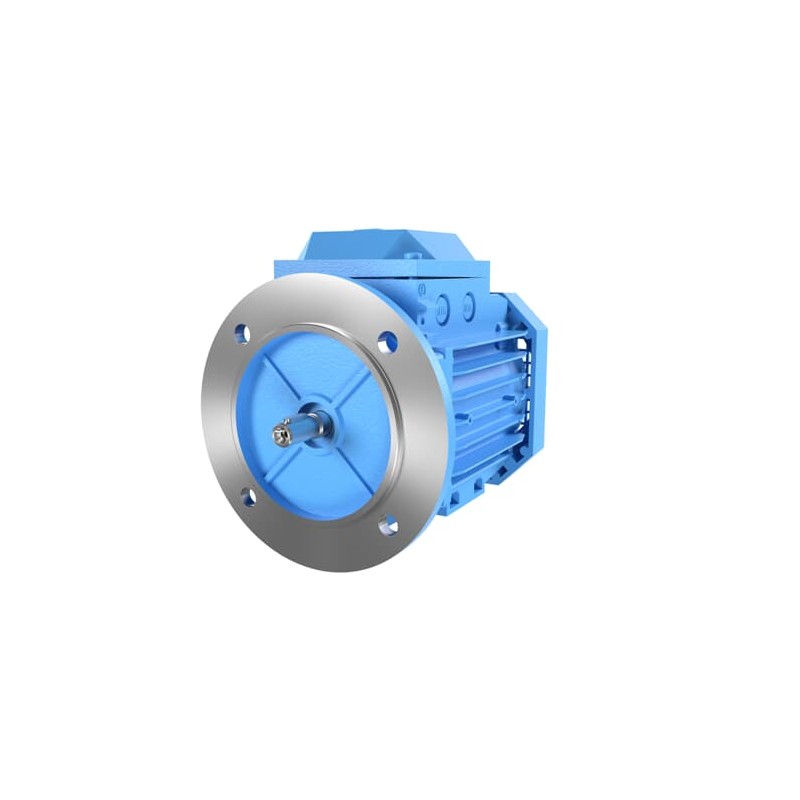

M3AA 71 B 3GAA062311-BDF ABB No Description Available

Additional Information

• ABB Type Designation:

  M3AA 63A 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6201-2Z/C3


• Bearing NDE:

  6201-2Z/C3


• Country of Origin:

  China (CN)


• Customs Tariff Number:

  85015100


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  D	--	60 Hz	460 V	0.12 kW	1724 r/min	0.38 A	0.560	64.00 %	0.66 N·m	3.30
  Y	--	50 Hz	690 V	0.12 kW	1402 r/min	0.24 A	0.630	59.10 %	0.82 N·m	2.90
  D	--	50 Hz	400 V	0.12 kW	1402 r/min	0.41 A	0.630	59.10 %	0.82 N·m	2.90

• Gross Weight:

  4.7kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 59.1 %
  Partial Load (75%) 55.8 %
  Partial Load (50%) 47.1 %


• IE Class Data (60 Hz):

  IE Class IE2
  Full Load (100%) 64.0 %
  Partial Load (75%) 59.6 %
  Partial Load (50%) 50.9 %


• IM Class:

  IMB5 IM3001


• IP Rating:

  IP55


• Insulation Class:

  ICLF


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  3.7kg


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA062001-BDE


• Selling Unit of Measure:

  piece


• Stocked At (Warehouses):

  Menden, Germany


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D
