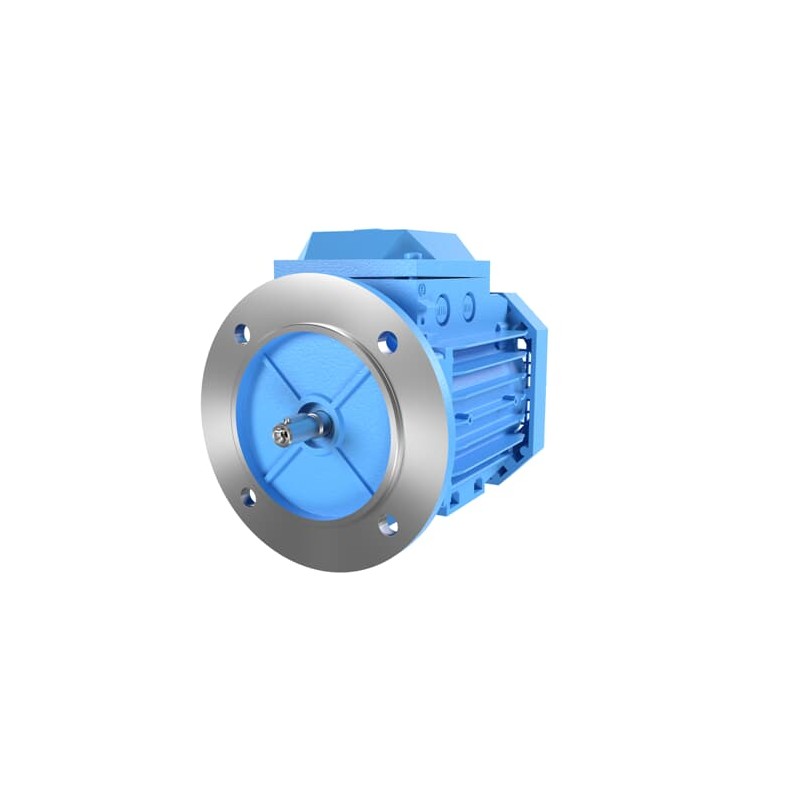

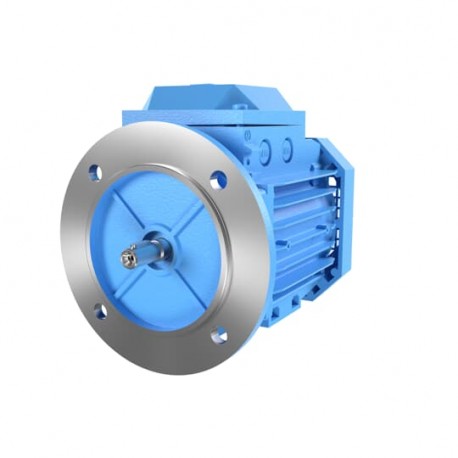

M3AA 56A 3GAA052311-CSF ABB No Description Available

Additional Information

• ABB Type Designation:

  M3AA 56A 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6201-2Z/C3


• Bearing NDE:

  6201-2Z/C3


• Country of Origin:

  China (CN)
  Poland (PL)


• Customs Tariff Number:

  85015100


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	400 V	0.06 kW	1390 r/min	0.30 A	0.540	52.80 %	0.41 N·m	3.20
  D	--	50 Hz	230 V	0.06 kW	1390 r/min	0.51 A	0.540	52.80 %	0.41 N·m	3.20
  Y	--	60 Hz	460 V	0.06 kW	1710 r/min	0.28 A	0.480	55.00 %	0.33 N·m	3.60

• Frame Material:

  Aluminum


• Gross Weight:

  3.9kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class NA
  Full Load (100%) 52.8 %
  Partial Load (75%) 49.6 %
  Partial Load (50%) 40.8 %


• IE Class Data (60 Hz):

  IE Class NA
  Full Load (100%) 55.0 %
  Partial Load (75%) 49.3 %
  Partial Load (50%) 40.1 %


• IM Class:

  IMB14 IM3601


• IP Rating:

  IP55


• Insulation Class:

  ICLF


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Pre Modified Motor Product ID:

  3GAA052311-BSF


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  2.9kg


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA052001-CSA
  3GAA052001-CSE


• Selling Unit of Measure:

  piece


• Stocked At (Warehouses):

  Menden, Germany
  Sant Quirze del Vallés - BCN, Spain
  Vittuone, Italy


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  S
