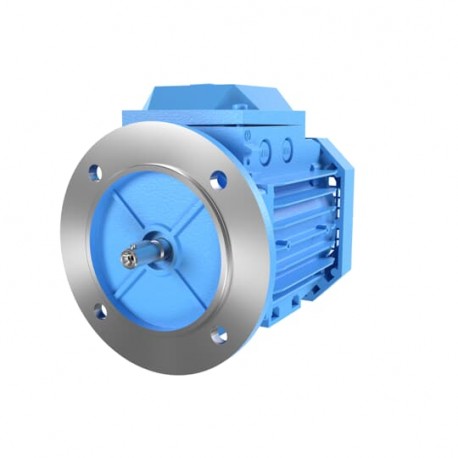

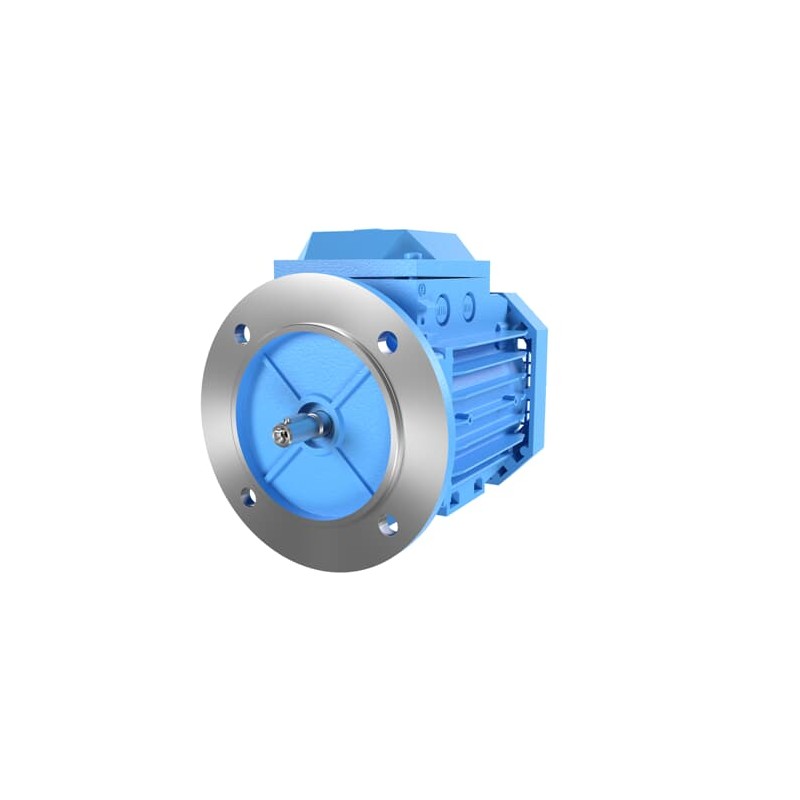

M3AA 63A 3GAA063311-CSF ABB No Description Available

Additional Information

• ABB Type Designation:

  M3AA 63A 6


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6201-2Z/C3


• Bearing NDE:

  6201-2Z/C3


• Country of Origin:

  Spain (ES)
  China (CN)


• Customs Tariff Number:

  85015100


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	400 V	0.09 kW	890 r/min	0.41 A	0.620	50.70 %	0.96 N·m	2.80
  D	--	50 Hz	230 V	0.09 kW	890 r/min	0.71 A	0.620	50.70 %	0.96 N·m	2.80
  Y	--	60 Hz	460 V	0.09 kW	1110 r/min	0.38 A	0.550	53.40 %	0.76 N·m	3.20

• Gross Weight:

  5.2kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class NA
  Full Load (100%) 50.7 %
  Partial Load (75%) 48.5 %
  Partial Load (50%) 42.0 %


• IE Class Data (60 Hz):

  IE Class NA
  Full Load (100%) 53.4 %
  Partial Load (75%) 48.9 %
  Partial Load (50%) 40.6 %


• IM Class:

  IMB14 IM3601


• IP Class:

  IP55


• Insulation Class:

  ICLF


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  6


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Pre Modified Motor Product ID:

  3GAA063311-BSF


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  4.2kg


• Product Type:

  3AA2__M3AA_IE2_AA


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GAA063001-CSE
  3GAA063311-CSE
  3GAA063311-CSC
  3GAA063001-CSA
  3GAA063001-CSC


• Selling Unit of Measure:

  piece


• Stocked At (Warehouses):

  Menden, Germany
  Sant Quirze del Vallés - BCN, Spain


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  S
