ABBContactors and overload relaysLK96-4F 1SBN073452R2000 ABB LK96-4F TERMINALS CONTROL CONNECTION.BEYON

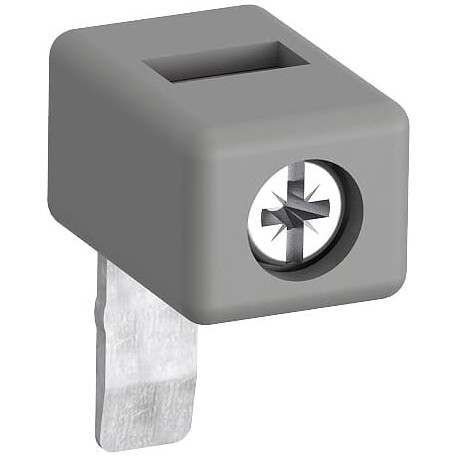

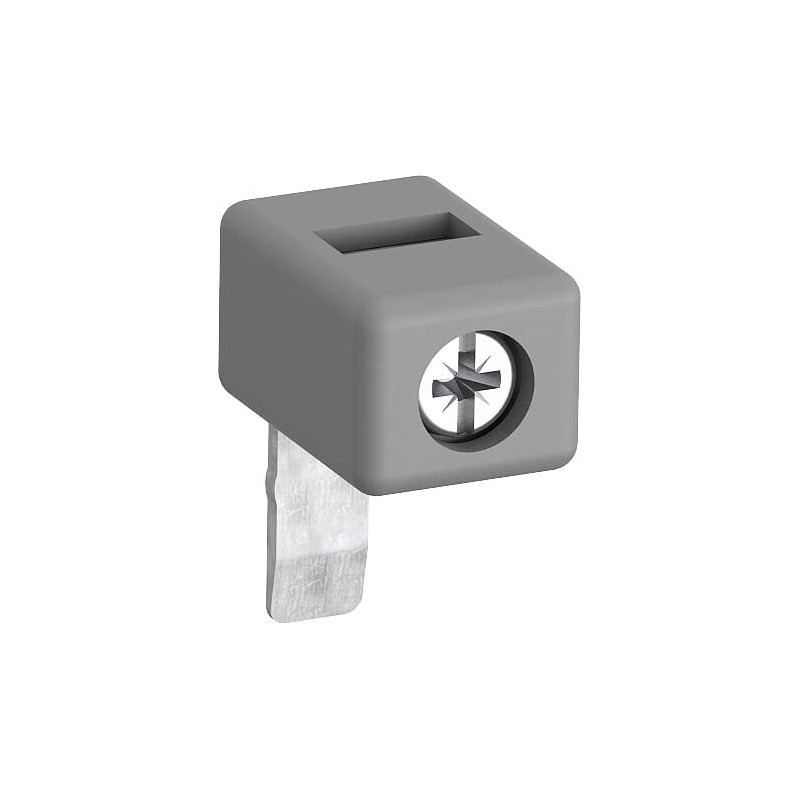

ABB LK96-4F 1SBN073452R2000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

LK96-4F 1SBN073452R2000 ABB LK96-4F TERMINALS CONTROL CONNECTION.BEYON

Reference: LK96-4F

Code: 1SBN073452R2000

Manufacturer: ABB

Description:

LK96-4F TERMINALS CONTROL CONNECTION.BEYON
LK96-4F CONTROL TERMINALS CONNEX. ADVANCE
LK96-4F Terminals for Control Lead Connections

Categories:

  • Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
  • ABB > Contactors and overload relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Ordering
Minimum Order Quantity2 piece
Customs Tariff Number85389099
Popular Downloads
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width10.1 mm
Product Net Depth / Length15 mm
Product Net Height21 mm
Product Net Weight0.005 kg
Technical
StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
Rated Frequency (f)Control Circuit 50 / 60 Hz
Connecting Capacity Control CircuitFlexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 2.5 mm²
Wire Stripping Length10 mm
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
Terminal TypeScrew Terminals
Suitable ForAF40
AF52
AF65
AF80
AF96
Technical UL/CSA
Tightening Torque UL/CSAControl Circuit 11 in·lb
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Information2CMT2021-006277
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
Declaration of Conformity - CE1SBD250055U1000
Declaration of Conformity - UKCA1SBD250057U1000
UL CertificateUL-US-L312527-1141-10303102-9
UL-CA-L312527-4141-10303102-9
Container Information
Package Level 1 Unitsbag 2 piece
Package Level 1 Width90 mm
Package Level 1 Depth / Length160 mm
Package Level 1 Height30 mm
Package Level 1 Gross Weight0.01 kg
Package Level 1 EAN3471523131019
Package Level 3 Units12960 piece
Classifications
ETIM 4EC002498 - Accessories for low-voltage switch technology
ETIM 5EC002498 - Accessories for low-voltage switch technology
ETIM 6EC002498 - Accessories for low-voltage switch technology
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.1 : 27371392
UNSPSC39121432
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals
