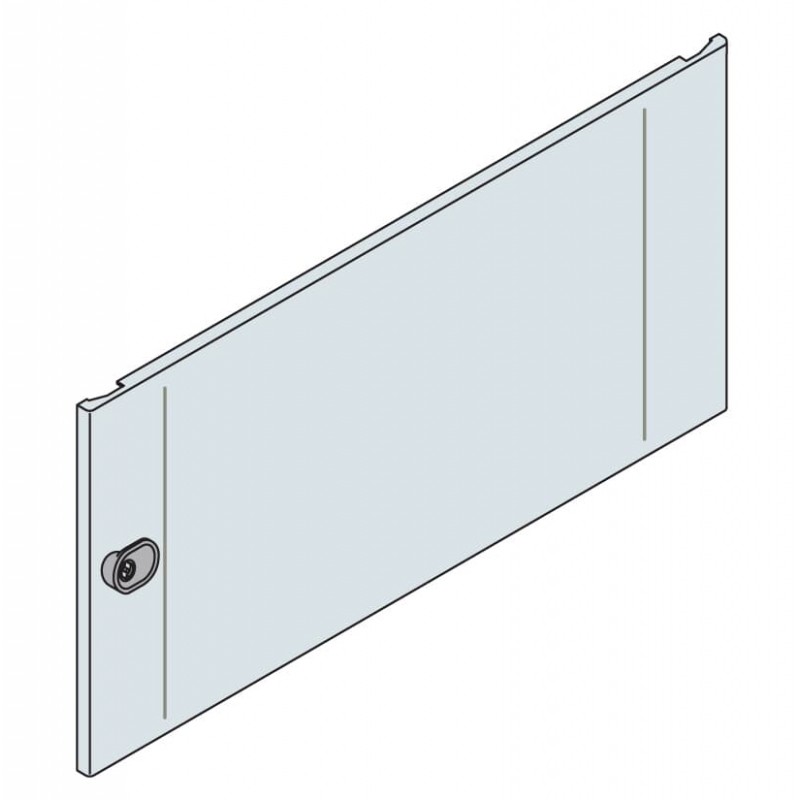

EH1061K ABB BLIND PANELXSEPAR.CELL 1000X600MM 7035
EH1061K
ABB
BLIND PANELXSEPAR.CELL 1000X600MM 7035
IS2 PAN. FRON. H1000,A600, RAL7035 CELLS
Control and Automation Board W 600 mm H 1800 mm D 400 mm
Cabinet enclosures > Door/operating panel (switchgear cabinet)
Automation and Control enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Product Type | 5B5B30B370 |
| Door Type | Panel Door |
| Door Surface Finishing | Opaque |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Pickled steel sheet |
| Door Material | Steel Sheet |
| RAL Number | RAL 7035 - Light Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| SCIP | 52187e19-7959-4d91-ab80-d021b281d7d4 Italy |
| Simplified SCIP | 4cb5e09e-4af5-4f28-b5fd-cd3ab10fe988 Norway |
| 18ad1b78-60b0-42de-b08e-6888702c98dd Finland | |
| 17ca69ef-36af-4a7c-862e-670928752358 Belgium | |
| e016a3dd-ca6d-47e4-9370-7728800a879d Germany | |
| b2d539e2-06ef-4029-be43-6276a9c579b3 Denmark | |
| 16c38c7c-8000-4b91-b2c7-04afd49ed4c3 Germany | |
| ea90bb12-80e4-4935-9e59-59d487d6b5be Croatia | |
| 6671b827-c919-49ef-a78f-f8b471715974 Czech Republic | |
| 0aafd875-200e-4b7c-96a0-6daef154b09c Poland | |
| cdfb6e6a-1c10-4698-8ce2-f60d33522fab Netherlands | |
| 694ce97d-68e5-418e-a3e7-1867e2063edf Hungary | |
| c7c70eb1-b8fc-42c6-bc16-570405c77421 Estonia | |
| 9db4e2d6-1277-46a5-b1d8-34a739ba2ca0 Greece | |
| b1b0b305-711c-4bc6-9412-b0a33379d2f9 Bulgaria | |
| 320b5d37-716b-4117-b168-77fca919ee37 Sweden | |
| af99dc6b-3136-4a31-978a-04158878243a Poland | |
| 6bfad797-70a5-4f82-a488-b27af4c881b5 France | |
| fc20d57a-27e1-4e00-b78f-b034a2b03b09 Sweden | |
| 9f0717f7-123e-414a-b328-8b50027b1ca2 Germany | |
| 18c2cc60-ea25-4c3b-afb6-45724268d04f Spain | |
| 48baa78a-b26b-48b6-86e1-e214add02ee3 Portugal | |
| 333080c9-7b2d-4e2e-bd20-58edb42faf63 Germany | |
| 25e926a3-21fb-4f35-a2d3-169372e69dc7 France | |
| 1a0895be-c5c0-4579-a5dc-f5d821645af1 Hungary | |
| b410d6e8-a3da-4bb9-8a38-2e963a5d6689 Belgium | |
| 7d5a7222-1896-4fa6-9780-7b51bebaf684 Germany | |
| c88b4c25-bf5d-4f98-b6c9-95be1c16223a Poland | |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 578.4 mm |
| Product Net Height | 975 mm |
| Product Net Depth / Length | 16 mm |
| Product Net Weight | 13.910 kg |
| Reference Depth/Length | 400 mm |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 1800 mm |
| 2000 mm | |
| 2200 mm | |
| Reference Width | 600 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 14.190 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0006 |
| Mounting Type | Pre assembled |
| Kit | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.1 : 27182204 |
| Object Classification Code | U |
| Standards | See code for structure |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ABB GENERAL ENCLOSURES 2024 EN.pdf | 138 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES 2024 EN.pdf | 45 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES EN.pdf | 32 Mbytes |
|
