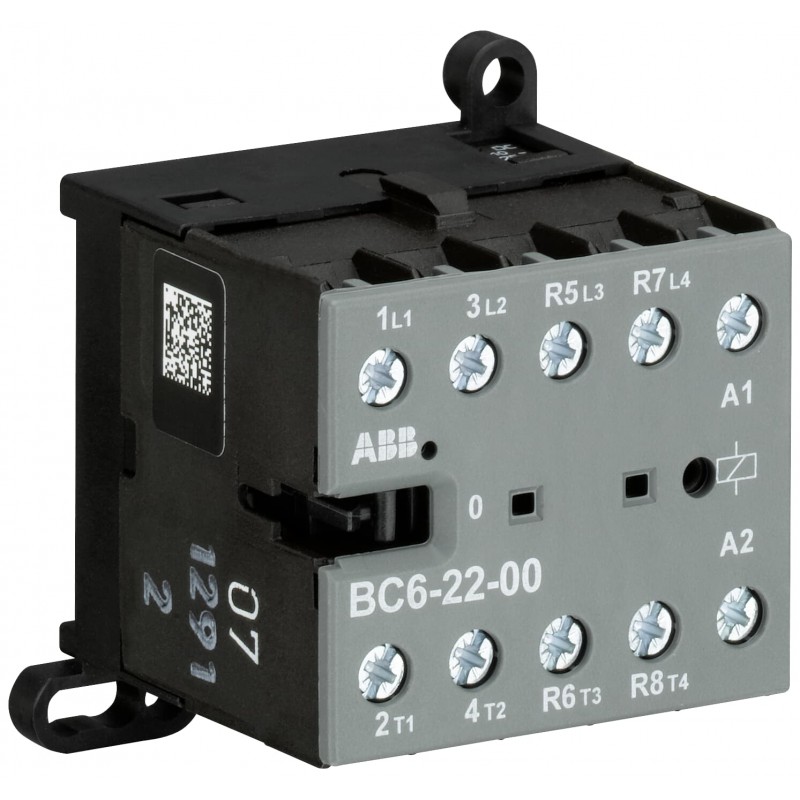

GJL1213501R0004 ABB BC6-22-00-04 MINICONT. 110VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

GJL1213501R0004 ABB BC6-22-00-04 MINICONT. 110VDC

GJL1213501R0004

ABB

BC6-22-00-04 MINICONT. 110VDC

BC6-22-00-04 Mini Contactor 110 ... 125 V DC - 2 NO - 2 NC - Screw Terminals

More details


Low-voltage industrial components > Power contactor, AC switching

Contactors and overload relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $43.78
Unit price: $43.78
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Popular Downloads
EPLAN Data9AAC201036_EPLAN
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals2CDC102047M6801
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width52.5 mm
Product Net Depth / Length46.7 mm
Product Net Height57.5 mm
Product Net Weight0.175 kg
Dimension DiagramGJL1200436F0001
Technical
Number of Main Contacts NO2
Number of Main Contacts NC2
Number of Auxiliary Contacts NO0
Number of Auxiliary Contacts NC0
Number of Poles4P
StandardsIEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
IEC 60335-2-40 A2L
Rated Operational VoltageMain Circuit 690 V AC
Main Circuit 220 V DC
Rated Frequency (f)Control Circuit DC
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit DC
Conventional Free-air Thermal Current (Ith)Main Circuit 20 A
Rated Operational Current AC-1 (Ie)(220 / 240 V) 40 °C 20 A
(220 / 240 V) 55 °C 16 A
(380 / 440 V) 40 °C 20 A
(380 / 440 V) 55 °C 16 A
(690 V) 40 °C 6 A
(690 V) 55 °C 6 A
Rated Operational Current AC-3 (Ie)(230 V) 55°C 9 A
(400 V) 55 °C 9 A
(500 V) 55 °C 6.5 A
(690 V) NC 55°C 3.5 A
(690 V) NO 55°C 3.5 A
Rated Operational Power AC-3 (Pe)(230 V) Three Phase 2.2 kW
(400 V) Three Phase 4 kW
(500 V) Three Phase 4 kW
(690 V) Three Phase, NC 3 kW
(690 V) Three Phase, NO 3 kW
Rated Breaking Capacity AC-38 x Ie / AC-3
Rated Making Capacity AC-310 x Ie / AC-3
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A
Rated Insulation Voltage (Ui)690 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)Main Circuit 6 kV
Maximum Electrical Switching Frequency(AC-1) 300 cycles per hour
(AC-3) 600 cycles per hour
(DC-1) 600 cycles per hour
(DC-3) 600 cycles per hour
Mechanical DurabilityNr. Operations 10000000 cycle
Coil Operating Limits(acc. to IEC 60947-4-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Rated Control Circuit Voltage (Uc)110 ... 125 V DC
Coil ConsumptionAverage Holding Value DC 3.5 W
Average Pull-in Value DC 3.5 W
Power Lossat Rated Operating Conditions AC-1 per Pole 1 W
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Main CircuitFlexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Control CircuitFlexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
Wire Stripping LengthMain Circuit 9 mm
Degree of ProtectionControl Circuit Terminals IP20
Main Circuit Terminals IP20
Recommended Screw DriverM3
Pozidriv 1
Tightening TorqueControl Circuit 0.8 ... 1.1 N·m
Main Circuit 0.8 ... 1.1 N·m
Terminal TypeScrew Terminals
Mini Contactor TypeMini Contactor
Product NameMini Contactor
Technical UL/CSA
Maximum Operating Voltage UL/CSAMain Circuit 600 V AC
General Use Rating UL/CSA(300 V AC) 12 A
Horsepower Rating UL/CSA(115 V AC) Single Phase 0.25 Hp
(200 V AC) Three Phase 1 Hp
(220 ... 240 V AC) Three Phase 2 Hp
(230 V AC) Single Phase 0.5 Hp
(440 ... 480 V AC) Three Phase 3 Hp
(550 ... 600 V AC) Three Phase 1 Hp
Connecting Capacity Main Circuit UL/CSAStranded 1/2x 22-10 AWG
Tightening Torque UL/CSAControl Circuit 7 in·lb
Main Circuit 7 in·lb
Full Load Amps Motor Use(115 V AC) Single Phase 5.8 A
(200 V AC) Three Phase 4.8 A
(220 ... 240 V AC) Three Phase 6.8 A
(230 V AC) Single Phase 4.9 A
(440 ... 480 V AC) Three Phase 4.8 A
(550 ... 600 V AC) Three Phase 1.7 A
Environmental
Ambient Air TemperatureOperation -20 ... +55 °C
Storage -40 ... +80 °C
Maximum Operating Altitude Permissible2000 m
Resistance to Shock acc. to IEC 60068-2-2711 ms Pulse 15g
Resistance to Vibrations5g 5 ... 150 Hz
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
End Of Life Disassembling Instructions1SBC100156C0269
Environmental Product Declaration - EPD1SAC200409H0001
Certificates and Declarations
A2L Certificate – IEC1SAA938000-4601
BV Certificate1SAA920000-0204
CB Certificate1SAA938000-2002
CQC CertificateCQC2003010304064033
cULus CertificatecUL_E191658
Declaration of Conformity - CCC2020980304001854
Declaration of Conformity - CE1SAD101100-3101
Declaration of Conformity - UKCA1SAD201100-3101
DNV GL Certificate1SAA938000-0306
EAC Certificate1SAA920000-2702
KC Certificate1SAA938000-1501
LR Certificate1SAA938000-0504
RMRS Certificate1SAA938000-0704
Container Information
Package Level 1 Unitsbox 10 piece
Package Level 1 Width115 mm
Package Level 1 Depth / Length280 mm
Package Level 1 Height54 mm
Package Level 1 Gross Weight1.82 kg
Package Level 1 EAN4013614415609
External Classifications and Standards
Object Classification CodeQ
ETIM 7EC000066 - Power contactor, AC switching
ETIM 8EC000066 - Power contactor, AC switching
ETIM 9EC000066 - Power contactor, AC switching
eClassV11.0 : 27371003
UNSPSC39121529

ETIM for GJL1213501R0004 Low-voltage industrial controls and switchgear (EC000066)
Feature Name Feature Value
Rated control supply voltage DC (EF003980) 110 V
Voltage type for actuating (EF008242) DC
Rated operation current Ie at AC-1, 400 V (EF001393) 20 A
Rated operation current Ie at AC-3, 400 V (EF001392) 9 A
Rated operation power at AC-3, 400 V (EF001364) 4 kW
Rated operation power NEMA (EF011960) 1.4914 kW
Modular version (EF001126) No
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as normally closed contact (EF001377) 0
Type of electrical connection of main circuit (EF006819) Screw connection
Number of normally closed contacts as main contact (EF001375) 2
Number of normally open contacts as main contact (EF001374) 2
