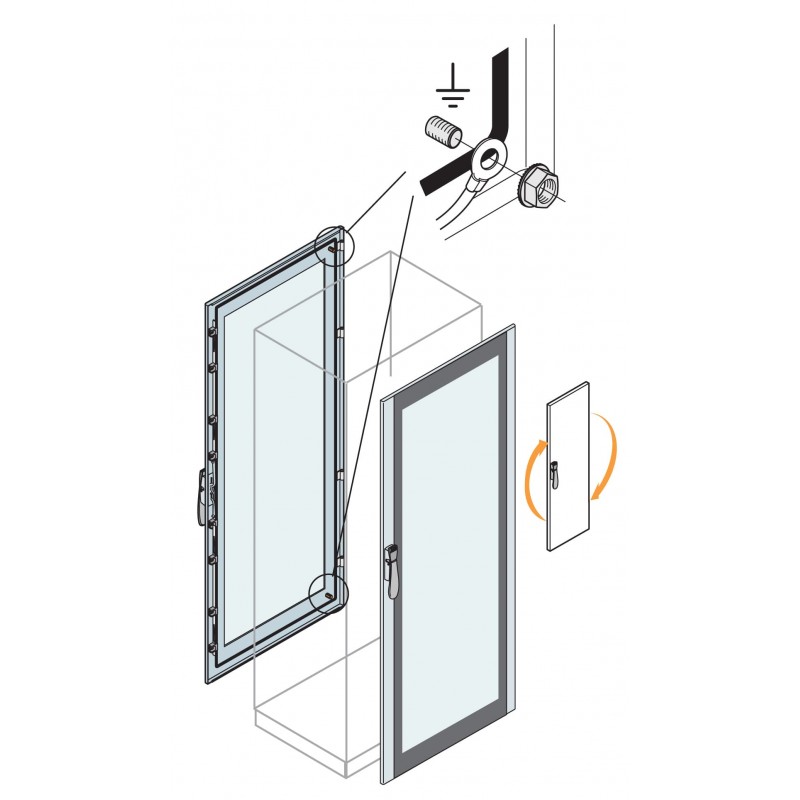

ET1680K ABB IS2 Transparent door. IP55 1600x800.RAL7035
ET1680K
ABB
IS2 Transparent door. IP55 1600x800.RAL7035
Control and Automation Board W 800 mm H 1600 mm D 300 mm
Cabinet enclosures > Door/operating panel (switchgear cabinet)
Automation and Control enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Configuration Type | 3. Door |
| Enclosure Type | Kit - glazed front door |
| Product Type | 5B5B20B240 |
| Door Type | Single |
| Door Surface Finishing | Transparent |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Pickled steel sheet |
| Door Material | Glass |
| RAL Number | RAL 7035 - Light Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 794 mm |
| Product Net Height | 1605 mm |
| Product Net Depth / Length | 46 mm |
| Product Net Weight | 17.246 kg |
| Reference Depth/Length | 300 mm |
| 400 mm | |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 1600 mm |
| Reference Width | 800 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 17.246 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0008 |
| Mounting Type | Kit |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.1 : 27182204 |
| Object Classification Code | U |
| Standards | IEC 62208, IEC 61439-1-2 |
| NEMA 1, 3R, 12 | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ABB GENERAL ENCLOSURES 2024 EN.pdf | 138 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES 2024 EN.pdf | 45 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES EN.pdf | 32 Mbytes |
|
