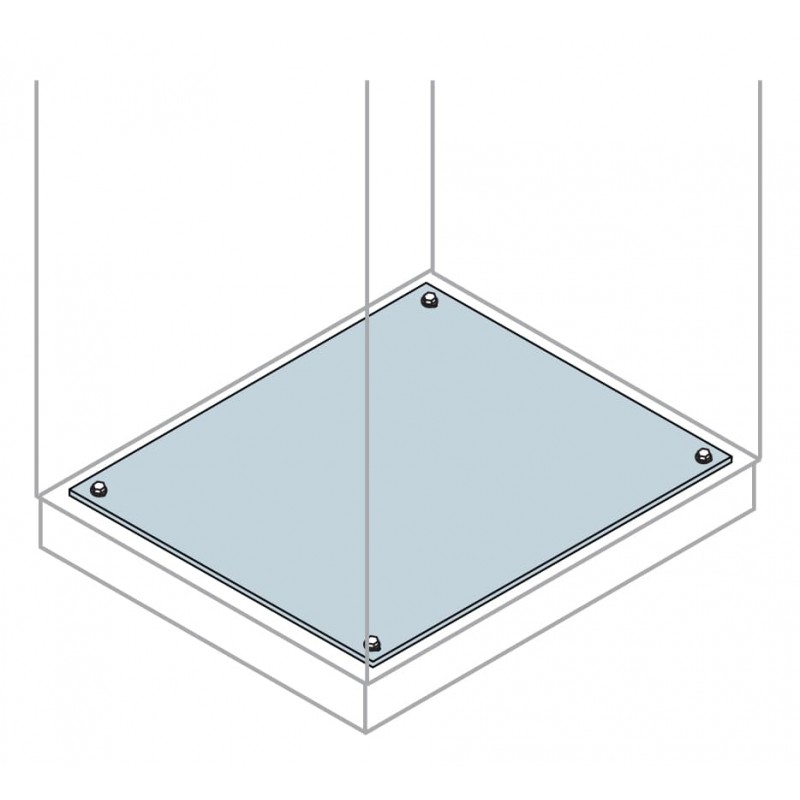

1STQ005426B0000 ABB FIXED FLANGES IS2 600X300MM (HXW)
1STQ005426B0000
ABB
FIXED FLANGES IS2 600X300MM (HXW)
IS2 Blind cover cable entry 600x300
Control and Automation Board W 600 mm H 1400 mm D 300 mm
Distribution boards > Gland plate for small distribution boards/switchgear cabinets
Automation and Control enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Suitable For | Automation and Control Enclosures (System pro E control) - IS2 |
| Suitable for Product Class | Automation and Control Enclosures (System pro E control) |
| Accessory Type | 4. Cable entry flanges |
| Product Type | 5B5B30B310 |
| Options Provided | 3. Fixed cable entry flanges IP55 |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Galvanized Steel sheet |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP55 |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 433 mm |
| Product Net Height | 10 mm |
| Product Net Depth / Length | 240 mm |
| Product Net Weight | 1.392 kg |
| Reference Depth/Length | 300 mm |
| Reference Height | 1400 mm |
| 1600 mm | |
| 1800 mm | |
| 2000 mm | |
| 2200 mm | |
| Reference Width | 600 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.393 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0008 |
| Mounting Type | Kit |
| Pre assembled | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000211 - Gland plate for enclosure/cabinet |
| ETIM 10 | EC000211 - Gland plate for enclosure/cabinet |
| eClass | V11.1 : 27142421 |
| Standards | NEMA 1, 12 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ABB GENERAL ENCLOSURES 2024 EN.pdf | 138 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES 2024 EN.pdf | 45 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES EN.pdf | 32 Mbytes |
|
