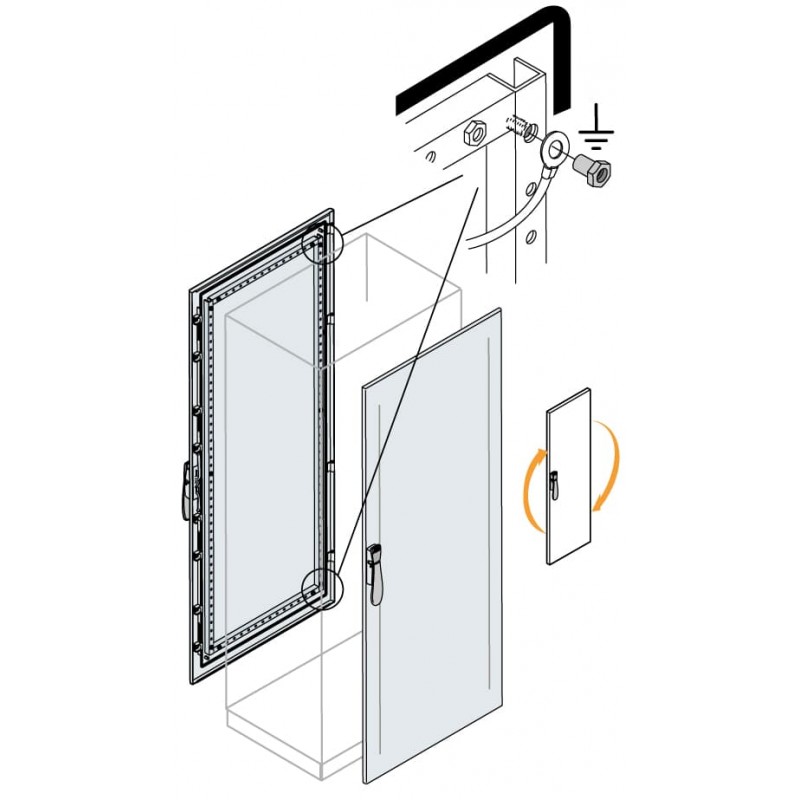

EC1680K ABB IS2 IP55 blind door 1600x800, RAL7035
EC1680K
ABB
IS2 IP55 blind door 1600x800, RAL7035
Control and Automation Board W 800 mm H 1600 mm D 300 mm
Cabinet enclosures > Door/operating panel (switchgear cabinet)
Automation and Control enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Configuration Type | 3. Door |
| Enclosure Type | Kit - blind front door |
| Product Type | 5B5B20B230 |
| Door Type | Single |
| Door Surface Finishing | Opaque |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Pickled steel sheet |
| Door Material | Steel Sheet |
| RAL Number | RAL 7035 - Light Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| SCIP | 5d6241cd-6f3f-4825-b516-f6d51fa30b31 Italy |
| Simplified SCIP | f8877949-5269-4fca-84e2-0ae5b3068b67 Belgium |
| c7900389-404a-4239-9fe7-8f193d358c65 Hungary | |
| 10d88457-6d60-4d40-934c-d7fd2fce9521 Sweden | |
| 0cbb288a-70bf-43a8-bac2-8b564fa73add Poland | |
| 4bee4b17-76db-4f52-b314-831d4e14b333 Germany | |
| d5f21f41-3c2e-4d64-bdaf-24ce2bfb55e4 Germany | |
| af9d60db-f8fd-4dda-bedb-05919120e28e France | |
| 412f1041-2d01-4dfd-a36d-5c8bd4a45150 Spain | |
| 4c5d22e4-ec04-4603-afda-00ae21f15642 Germany | |
| 0aca295c-aec1-4388-9d47-1f6c8157fd03 Bulgaria | |
| 789f314f-a6b8-4b76-aeb1-af084dda1b68 Sweden | |
| 840378cc-1bb8-4c6f-8e1a-11f7203033db Portugal | |
| f7aab279-9d6c-424c-b287-288cbc513843 Greece | |
| 988b9775-6661-429a-bdf6-a28200291f46 Hungary | |
| f78167e0-90de-45ae-9cff-585897157dc3 Netherlands | |
| 1cc123ed-9f90-45ee-95e0-8da32708f88e Estonia | |
| b6c63a09-8283-4a95-a509-79779685f832 Czech Republic | |
| 92684c4f-b1c6-41dd-a241-9f45d726d434 Poland | |
| 5b9f2c07-e78c-449b-b46c-ebbd0c27b30f Croatia | |
| 939e0a6f-cbfa-443d-b9d1-b1c969b83af7 Finland | |
| 5d0a601c-803e-4d0a-865d-777ceea22ec4 Norway | |
| eec9fb33-d697-4136-9a0d-8432eb802279 Poland | |
| 491ec4d9-f96b-4415-bc71-1eb4392833af Belgium | |
| c40cbd91-e262-49f6-a898-8f332f43fc81 Germany | |
| 1318b4b0-57d1-4d01-abce-fea087787d2e Denmark | |
| 5f8d0dd6-71b2-4a97-8eee-62a15004bb68 Germany | |
| 5e2fabd5-89d3-4fc3-a10c-041036b2400c France | |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 794 mm |
| Product Net Height | 1605 mm |
| Product Net Depth / Length | 46 mm |
| Product Net Weight | 22.532 kg |
| Reference Depth/Length | 300 mm |
| 400 mm | |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 1600 mm |
| Reference Width | 800 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 22.779 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0008 |
| Mounting Type | Kit |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.1 : 27182204 |
| Object Classification Code | U |
| Standards | See code for structure |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE ABB GENERAL ENCLOSURES 2024 EN.pdf | 138 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES 2024 EN.pdf | 45 Mbytes |
|
| PDF CATALOGUE ABB IS2 ENCLOSURES EN.pdf | 32 Mbytes |
|
| EC1680K EC1680K EN_EC1680K.pdf | 87 Kbytes |
|
