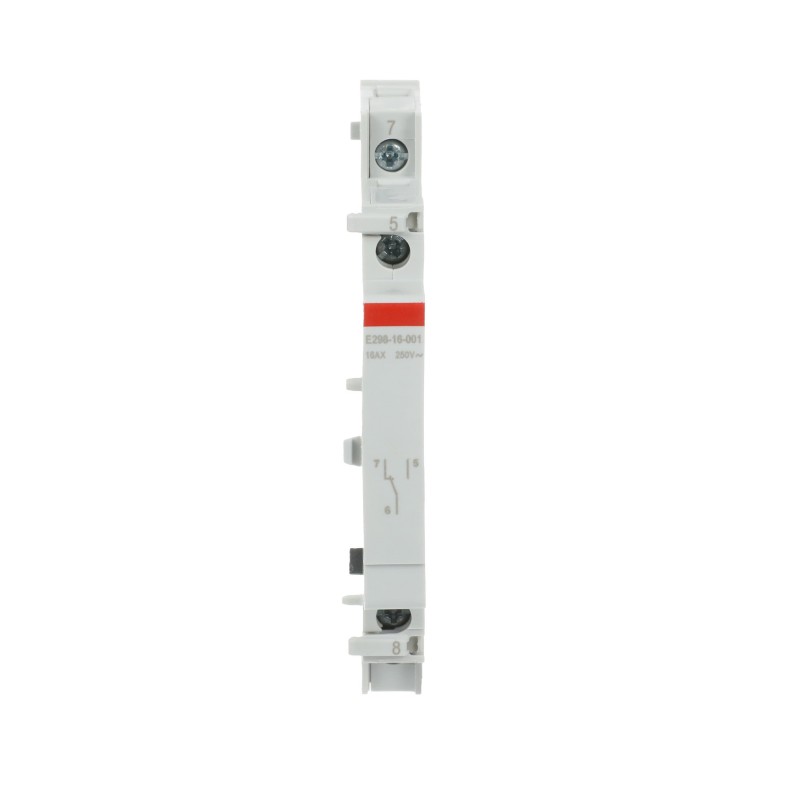

ABB 2CCA704322R0001 2CCA704322R0001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CCA704322R0001 ABB Module contacts E298-16-001 16A 1 COR

Reference: 2CCA704322R0001

Manufacturer: ABB

Description:

Module contacts E298-16-001 16A 1 COR
Contact Module E298-16-001 16A 1CO
E298-16-001

Categories:

  • Devices for distribution board-/surface mounting > Installation relay
  • ABB > Other modular devices

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 278,84 €

Unit Price: 27,884 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical
FunctionMechanical installation relay main contact module
Rated Control Circuit Voltage (Uc)001 V DC
Number of Main Contacts NC1
Number of Main Contacts NO1
Tightening Torque1.2 - 1.5 N·m
Accessory TypeOther
Contact TypeChange-Over (CO)
Electrical
Rated Voltage (Ur)250 V AC
Maximum Control Current DC5 A
Rated Frequency (f)50 .. 60 Hz
Minimum Switching Capacity24 V
10 mA
Power LossTotal 0.32 W
Number of Contacts CO1
Design
RAL NumberRAL 7035 - Light Grey
ColorGrey
Material Compliance
RoHS Declaration2CCC005103D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20170426
REACH Declaration2CCC005047D0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20190425
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -25...+55 °C
Storage -40...+70 °C
Environmental Information2CCC441012D0202
Dimensions
Product Net Width9 mm
Product Net Height85 mm
Product Net Depth / Length58 mm
Product Net Weight45 g
Dimension Diagram9AKK107992A6182
Ordering
Package Level 1 Unitsbox 10 piece
Package Level 1 Gross Weight539 g
E-Number (Norway)1404063
E-Number (Switzerland)505991102
Certificates and Declarations
Declaration of Conformity - CE2CCC005103D0201
Declaration of Conformity - UKCA9AKK108467A6140
VDE CertificateVDE_E297_40041228
Installation
Instructions and Manuals2CCC441006M0801
Popular Downloads
Data Sheet, Technical Information2CCC441020C0201
External Classifications and Standards
ETIM 9EC001652 - Installation relay
ETIM 10EC001652 - Installation relay
UNSPSC39122317
eClassV11.0 : 27371692
Object Classification CodeK
StandardsEN 60669-1
EN 60669-2-2

ETIM for 2CCA704322R0001 Modular devices for distribution board/surface mounting (EC001652)

Feature nameNumber of contacts as change-over contact (EF008257)
Feature value1
