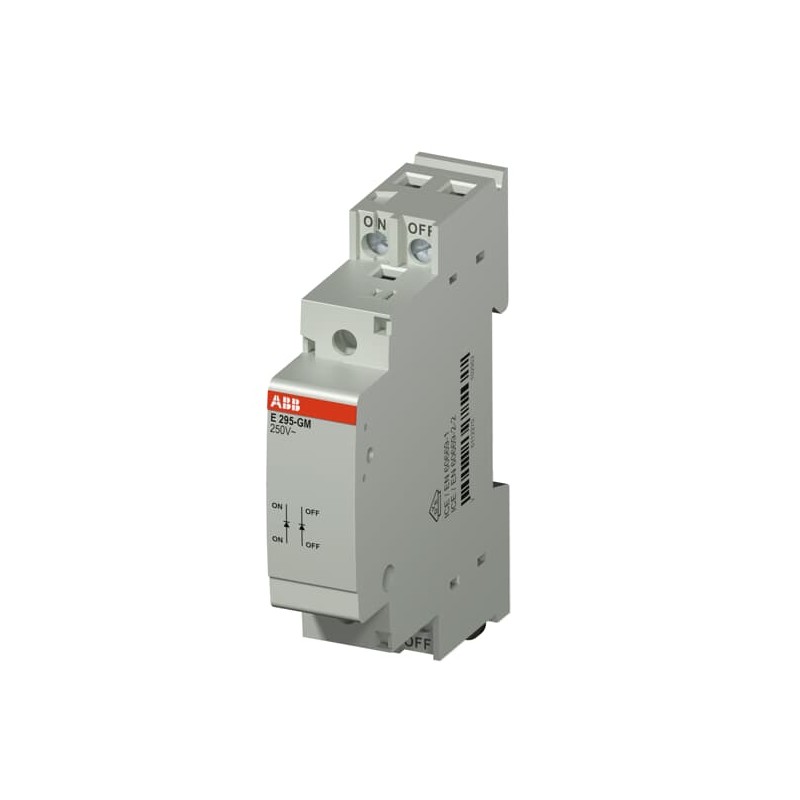

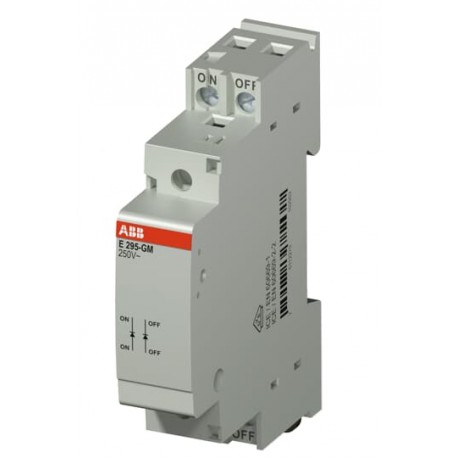

2TAZ310002R1000 ABB Module group E295-GM 16A
2TAZ310002R1000
ABB
Module group E295-GM 16A
Group module E295-GM 16A
E290/E297 Relay Accessories
Devices for distribution board-/surface mounting > Latching relay
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Technical data | |
|---|---|
| Function | Group module |
| Number of NC main contacts | 0 |
| Number of main contacts NA | 0 |
| Tightening torque | 1.2 - 1.5 N·m |
| Accessory Type | Other |
| Connection Capabilities | Solid 1 x 1 ... 10 mm² |
| Flexible 2 x 2.5 mm² | |
| Flexible with Cable End 1 x 0.75 ... 6 mm² | |
| Flexible with Cable Lug 1 x 0.75 ... 6 mm² | |
| Electrical | |
| Rated voltage (UR) | 250 V AC |
| Rated Control Supply Voltage (Us) | 250 V AC |
| Rated current (IN) | 1 A |
| Rated Frequency (f) | 50 Hz |
| Design | |
| RAL Number | RAL 7035 - Light grey |
| Color | Grey |
| Material Compliance | |
| RoHS Information | 2CCC005102D0201 |
| RoHS Statement | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20170426 |
| REACH Declaration | 2CCC005047D0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20190425 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small equipment (no external size greater than 50cm) |
| CN8 | Business To Consumer |
| Environmental data | |
| room temperature | Operating -25...+55 °C |
| In stock -40...+70 °C | |
| Environmental information | 2CCC441012D0202 |
| Climate Class Reference Standard | IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens |
| IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen. | |
| IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens | |
| dimensions | |
| Product width | 18 mm |
| Product height | 85 mm |
| Product depth | 58 mm |
| Product Net Weight | 59 g |
| Dimensional diagram | 9AKK107992A6185 |
| Order | |
| Packaging Unit Level 1 | Box 10 piece(s) |
| Gross Packaging Weight Level 1 | 666 g |
| E-Number (Norway) | 1404043 |
| Certificates and declarations (document number) | |
| Declaration of Conformity - CE | 2CCC005102D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6139 |
| VDE Certificate | VDE E29x_40040851 |
| Installation | |
| Instructions and manuals | 2CCC441005M0801 |
| Mounting type | DIN-Rail |
| Most Used Downloads | |
| Sheet | 2CCC441020C0201 |
| External classifications and standards | |
| ETIM 9 | EC000188 - Latching relay |
| ETIM 10 | EC000188 - Latching relay |
| Unspsc | 39122317 |
| eClass property | V11.0 : 27371692 |
| Item Classification Code | K |
| Reference standards | IEC/EN 60669-1 |
| IEC/EN 60669-2-2 | |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Other |
Datasheet - PDF
