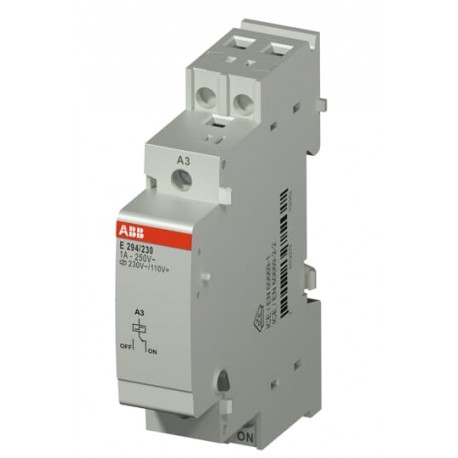

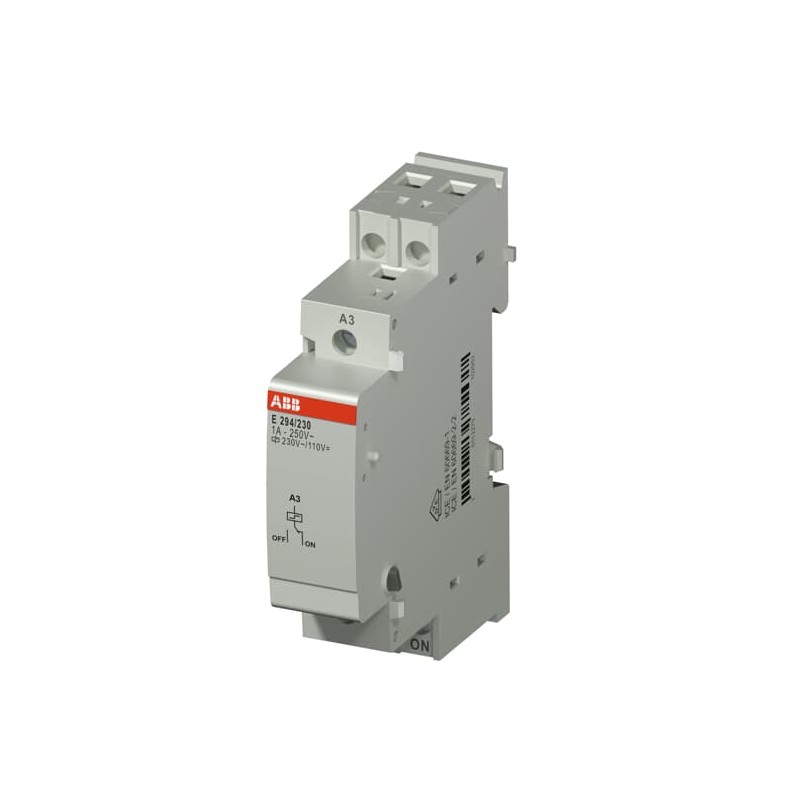

ABB 2TAZ312001R2013 2TAZ312001R2013 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2TAZ312001R2013 ABB Mod.centralization, on-off E294/230 16A

Reference: 2TAZ312001R2013

Manufacturer: ABB

Description:

Mod.centralization, on-off E294/230 16A

On-off centralization mod E294/230 16A

E294/230 Central on-off Control Module

Categories:

Devices for distribution board-/surface mounting > Latching relay
ABB > Other modular devices

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 65,24 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Technical
Function	Mechanical for centralized control
Rated Control Circuit Voltage (U_c)	230 V AC
Number of Main Contacts NC	0
Number of Main Contacts NO	0
Tightening Torque	1.2 - 1.5 N·m
Accessory Type	Other
Coil Consumption	Control Voltage V AC 230 V AC
	Average Pull-in Value 50 Hz 0.120 A
Connecting Capacity	Solid 1 x 1 ... 10 mm²
	Flexible 2 x 2.5 mm²
	Flexible with Cable End 1 x 0.75 ... 6 mm²
	Flexible with Cable Lug 1 x 0.75 ... 6 mm²
Electrical
Rated Voltage (U_r)	250 V AC
Rated Control Supply Voltage (U_s)	250 V AC
Rated Current (I_n)	1 A
Rated Frequency (f)	50 Hz
Design
RAL Number	RAL 7035 - Light Grey
Color	Grey
Material Compliance
RoHS Declaration	2CCC005102D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date	20170426
REACH Declaration	2CCC005047D0201
REACH Information	False - does not contain substances > 0.1 mass percentage
REACH Date	20190425
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B	Business To Consumer
Environmental
Ambient Air Temperature	Operation -25...+55 °C
	Storage -40...+70 °C
Environmental Information	2CCC441012D0202
Climate Class Reference Standard	IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens
	IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen.
	IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens
Dimensions
Product Net Width	18 mm
Product Net Height	85 mm
Product Net Depth / Length	58 mm
Product Net Weight	110 g
Dimension Diagram	9AKK107992A6184
Ordering
Package Level 1 Units	box 5 piece
Package Level 1 Gross Weight	1189 g
E-Number (Finland)	2712555
E-Number (Norway)	1404041
Certificates and Declarations
Declaration of Conformity - CE	2CCC005102D0201
Declaration of Conformity - UKCA	9AKK108467A6139
VDE Certificate	VDE E29x_40040851
Installation
Instructions and Manuals	2CCC441005M0801
Mounting Type	DIN-Rail
Popular Downloads
Data Sheet, Technical Information	2CCC441020C0201
External Classifications and Standards
ETIM 9	EC000188 - Latching relay
ETIM 10	EC000188 - Latching relay
eClass	V11.0 : 27371692
Object Classification Code	K
Standards	IEC/EN 60669-1
	IEC/EN 60669-2-2

ETIM for 2TAZ312001R2013 Modular devices for distribution board/surface mounting (EC000188)

Feature nameFunction (EF000030)

Feature valueMechanical for centralized control

Feature nameMounting method (EF000003)

Feature valueOther

DATASHEET - PDF

Title

Size

Type

PDF PROTECTION & SAFETY EN

25 Mbytes
