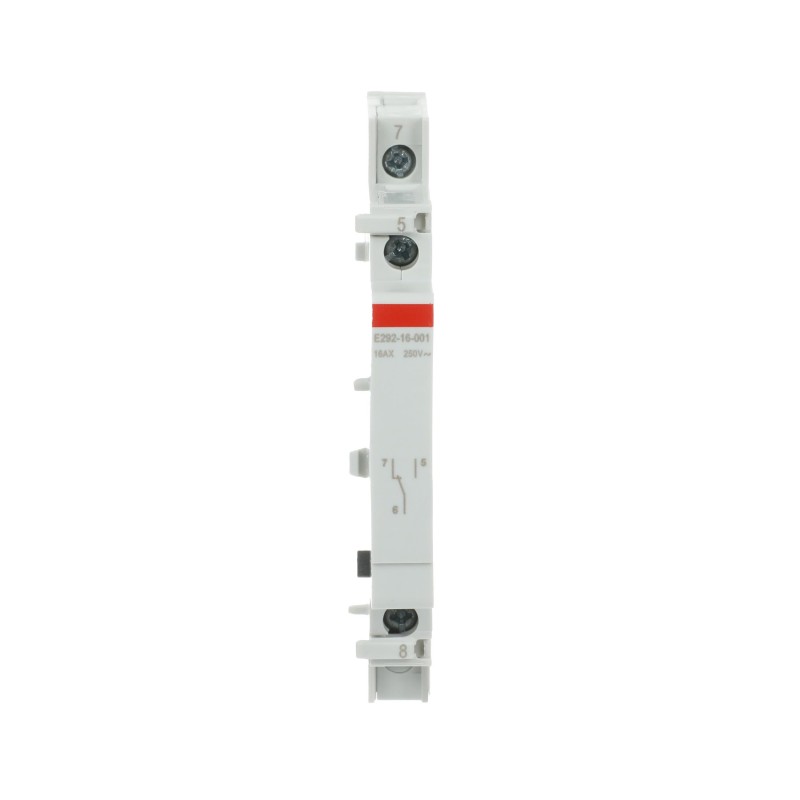

2CCA704302R0001 ABB Module contacts E292-16-001 16A 1 COR
2CCA704302R0001
ABB
10
Module contacts E292-16-001 16A 1 COR
Contact Module E292-16-001 16A 1CO
E292-16-001 Main Contact Module
Devices for distribution board-/surface mounting > Latching relay
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Technical | |
|---|---|
| Function | Mechanical latching relay main contact module |
| Number of Main Contacts NC | 1 |
| Number of Main Contacts NO | 1 |
| Tightening Torque | 1.2 - 1.5 N·m |
| Accessory Type | Connecting bridge |
| Contact Type | Change-Over (CO) |
| Connecting Capacity | Solid 1 x 1 ... 10 mm² |
| Flexible 2 x 2.5 mm² | |
| Flexible with Cable End 1 x 0.75 ... 6 mm² | |
| Flexible with Cable Lug 1 x 0.75 ... 6 mm² | |
| Electrical | |
| Rated Voltage (Ur) | 250 V AC |
| Rated Control Supply Voltage (Us) | 250 V AC |
| Rated Current (In) | 16 A |
| Maximum Control Current DC | 8 A |
| Rated Frequency (f) | 50 Hz |
| Minimum Switching Capacity | 24 V |
| 10 mA | |
| Power Loss | Total 0.32 W |
| Number of Contacts CO | 1 |
| Design | |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 2CCC005102D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20170426 |
| REACH Declaration | 2CCC005047D0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20190425 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25...+55 °C |
| Storage -40...+70 °C | |
| Environmental Information | 2CCC441012D0202 |
| Climate Class Reference Standard | IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens |
| IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen. | |
| IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens | |
| Dimensions | |
| Product Net Width | 9 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 58 mm |
| Product Net Weight | 45 g |
| Dimension Diagram | 9AKK107992A6182 |
| Ordering | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Gross Weight | 539 g |
| E-Number (Norway) | 1404036 |
| E-Number (Switzerland) | 534349910 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CCC005102D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6139 |
| VDE Certificate | VDE E29x_40040851 |
| Installation | |
| Instructions and Manuals | 2CCC441005M0801 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC441020C0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000188 - Latching relay |
| ETIM 10 | EC000188 - Latching relay |
| UNSPSC | 39122317 |
| eClass | V11.0 : 27371692 |
| Object Classification Code | K |
| Standards | IEC/EN 60669-1 |
| IEC/EN 60669-2-2 | |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Other |
| Number of contacts as change-over contact (EF008257) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF PROTECTION & SAFETY EN .pdf | 25 Mbytes |
|
