E290-16-11/48

ABB

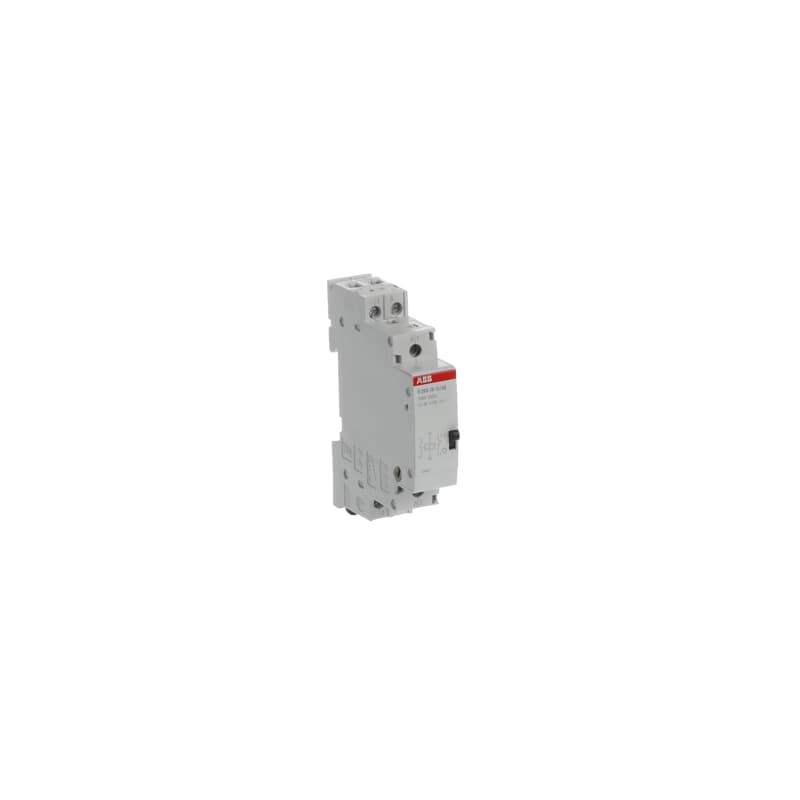

E290-16-11/48 Electromechanical Latching Relay. Latching relays are electromagnetically operated devices. The E290 range from ABB can be used to realise a simple, energy saving and efficient lighting control system. These devices are mainly used in private houses, factory premises and commercial and public buildings as well as in industrial plants. As a rule, latching relays controlled by means of impulse buttons are installed where it is necessary for lighting to be operated from at least three different places. Each time a command is initiated (by means of an impulse button), an electrical pulse is applied to the coil of the latching relay. The coil in the device is briefly energised and activated.

More details


Other modular devices

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $66.50
Unit price: $66.50
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technique

Function:
Mechanical latching relay
Mechanical latching relay
Control circuit voltage rating (Uc):
48 V AC
24 V DC
48 V AC
24 V DC
Number of NC main contacts:
1
1
Number of main contacts NO:
1
1
Number of NC auxiliary contacts:
0
0
Number of Auxiliary Contacts NO:
0
0
Sound dB (A):
(@distance 1 m) 60 dB
(@distance 1 m) 60 dB
Torque:
1.2 - 1.5 N·m
1.2 - 1.5 N·m
Response Time:
<3 ms
<3 ms
Boost duration:
Minimum 50 ms
Minimum 50 ms
Coil consumption:
Control voltage V AC 48 V AC
Average Traction Value 50 Hz 0.212 A
Control voltage V DC 24 V DC
Average Traction Value 50 Hz 0.207 A
Control voltage V AC 48 V AC
Average Traction Value 50 Hz 0.212 A
Control voltage V DC 24 V DC
Average Traction Value 50 Hz 0.207 A
Connection Capacity:
Solid 1 x 1 ... 10 mm²
Flexible 2 x 2.5 mm²
Flexible with cable end 1 x 0.75 ... 6 mm²
Flexible with 1 x 0.75 cable tab... 6 mm²
Solid 1 x 1 ... 10 mm²
Flexible 2 x 2.5 mm²
Flexible with cable end 1 x 0.75 ... 6 mm²
Flexible with 1 x 0.75 cable tab... 6 mm²

Electrical

Supply voltage:
250 … 250 V
250 … 250 V
Rated insulation voltage (Ui):
48 V AC
24 V DC
48 V AC
24 V DC
Control supply voltage rating (Us):
250 V AC
250 V AC
Nominal impulse-supported voltage (Uimp):
4 kV
4 kV
Input Voltage Type:
AC
AC
Rated Current (In):
16 A
16 A
Rated Current, Main Switch:
16 A
16 A
Maximum switching current:
cos phi = 0.6 16 A
cos phi = 0.6 16 A
Maximum DC Control Current:
5 A
5 A
Frequency (f):
Control Voltage 1 50 Hz
Control Voltage 1 50 Hz
Nominal Frequency (f):
50 Hz
50 Hz
Power loss:
Total 0.5 W
Total 0.5 W
Number of NC contacts:
1
1
Number of contacts NO:
1
1

Design

RAL Number:
RAL 7035 - Light grey
RAL 7035 - Light grey
Color:
Grey
Grey

Material Compliance

RoHS Information:
EU ROHS declaration - MDRC range
EU ROHS declaration - MDRC range
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 22 July 2019
Following EU Directive 2011/65/EU and Amendment 2015/863 22 July 2019
RoHS Date:
20260417
20260417
REACH Statement:
EU Reach Declaration - MDRC Range
EU Reach Declaration - MDRC Range
REACH Information:
False: does not contain substances > 0.1 percent by mass
False: does not contain substances > 0.1 percent by mass
REACH Date:
20260414
20260414
Conflict Minerals Notification Template (CMRT):
Conflict Minerals Reporting Template
Conflict Minerals Reporting Template
WEEE Category:
5. Small equipment (no external dimension more than 50cm)
5. Small equipment (no external dimension more than 50cm)
WEEE B2C / B2B:
From business to consumer
From business to consumer

Environment

Room temperature:
Operating -25...+55 °C
Storage -40...+70 °C
Operating -25...+55 °C
Storage -40...+70 °C
Environmental information:
Environment E29x
Environment E29x
Climate class reference standards:
IEC 60068-2-2 - Deals with dry heat testing applicable to both heat-dissipating and non-heat-dissipating samples
IEC 60068-2-30 - Determines the suitability of components, equipment, or other items for use, transportation, and storage in high humidity conditions - combined with cyclical changes in temperature and generally producing condensation on the surface of the sample.
IEC 60068-2-1 - Deals with cold testing applicable to both non-heat dissipating and heat-dissipating samples
IEC 60068-2-2 - Deals with dry heat testing applicable to both heat-dissipating and non-heat-dissipating samples
IEC 60068-2-30 - Determines the suitability of components, equipment, or other items for use, transportation, and storage in high humidity conditions - combined with cyclical changes in temperature and generally producing condensation on the surface of the sample.
IEC 60068-2-1 - Deals with cold testing applicable to both non-heat dissipating and heat-dissipating samples

Dimensions

Width in number of modular spaces:
1
1
Product Width:
18 mm
18 mm
Product Height:
85 mm
85 mm
Product Length:
62 mm
62 mm
Product Weight:
122 g
122 g
Built-in depth (t2):
68 mm
68 mm
Dimension Diagram:
Drawing-standard devices-Latching relay and Installation relay-E290-E297
Drawing-standard devices-Latching relay and Installation relay-E290-E297

Classification

Packaging Level 1 Units:
Box 10 pieces
Box 10 pieces
Packaging Level 1 Weight:
1296 g
1296 g
E Number (Finland):
2712540
2712540
E Number (Norway):
1404010
1404010

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:
EU Declaration of conformity E290 E291
EU Declaration of conformity E290 E291
Declaration of Conformity - UKCA:
UKCA Declaration of Conformity E290, E291
UKCA Declaration of Conformity E290, E291
VDE Certificate:
VDE E29x_40040851
VDE E29x_40040851

Installation

Instructions and manuals:
Latching Relay E290 Instruction
Latching Relay E290 Instruction
Mounting Type:
DIN-Rail
DIN-Rail
Mounting position:
Any
Any

Popular Downloads

Technical data, technical information:
E260 E290 E297 Mechanical Latching and Installation Relays [FR] (PDF)
E260 E290 E297 Mechanical Latching and Installation Relays [FR] (PDF)

External Classifications and Standards

ETIM 9:
EC000188 - Latching relay
EC000188 - Latching relay
ETIM 10:
EC000188 - Latching relay
EC000188 - Latching relay
UNSPSC:
39122317
39122317
E-Class:
V11.0 : 27142306
V11.0 : 27142306
Object Classification Code:
K
K
Rules:
IEC/EN 60669-1
IEC/EN 60669-2-2
IEC/EN 60669-1
IEC/EN 60669-2-2
