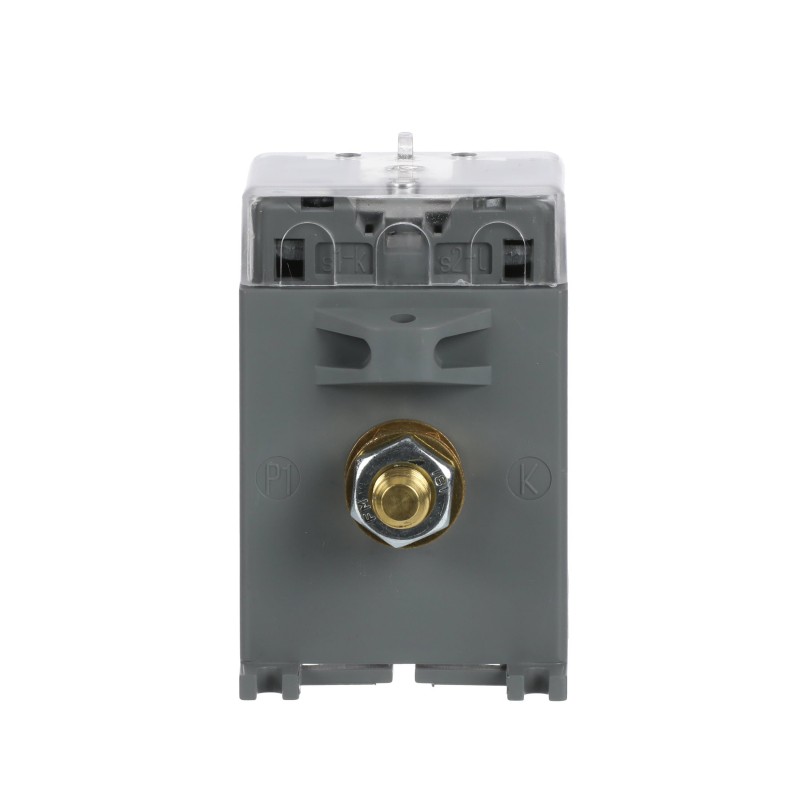

2CSG111100R1141 ABB Current transformer CTA/60
2CSG111100R1141
ABB
Current transformer CTA/60
CTA/60 Current Transformer
Low-voltage industrial components > Current transformer
AER and Transformers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Cable Use | Cable |
| Current Rating | 60 A |
| Rated Primary Current (Ipn) | 60 A |
| Rated Secondary Current (Isn) | 5 A |
| Current Limit Function | FS 5 |
| Apparent Power Output | 1 V·A |
| Secondary Output Connection | Screw connection |
| Accuracy | ±0,5% |
| Model Number | Through-feed current converter |
| Number of Inputs | Primary 1 |
| Electrical | |
| Frequency (f) | 50 ... 60 Hz |
| Material Compliance | |
| RoHS Declaration | 2CSC445013K0201 |
| RoHS Information | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... 50 °C |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Product Net Width | 56 mm |
| Product Net Height | 26.5 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Weight | 0.355 kg |
| Bore Diameter | 29 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.377 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5700 |
| EU Data Act Compliance Declaration | Not applicable |
| Installation | |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107046A0430 |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
| eClass | V11.0 : 27210902 |
| Object Classification Code | T |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Through-feed current converter |
| Rated primary current (EF007405) | 60 A |
| Rated secondary current (EF007471) | 5 A |
| Rated secondary apparent power (EF007470) | 1 VA |
| Accuracy class (EF008842) | 0.5 |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Calibrated (EF008836) | Yes |
| With contact protection (EF008186) | Yes |
| Height opening (EF012757) | 8 mm |
| Width opening (EF012758) | 8 mm |
| Opening diameter (EF005153) | 29 mm |
| Snap mounting (EF007462) | No |
| With copper rail (EF007380) | No |
| Secondary connection (EF021093) | Screw connection |
| Number of primary inputs (EF006947) | 1 |
