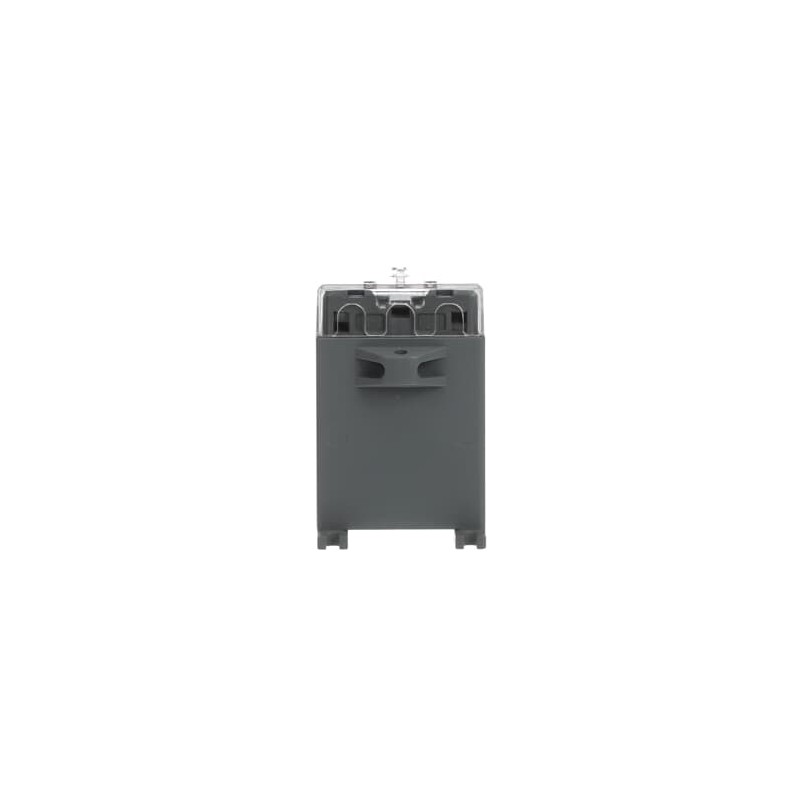

ABB 2CSG111050R1141 2CSG111050R1141 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSG111050R1141 ABB Current transformer CTA/20

Reference: 2CSG111050R1141

Manufacturer: ABB

Description:

Current transformer CTA/20
CTA/20 Current Transformer

Categories:

  • Low-voltage industrial components > Current transformer
  • ABB > AER and Transformers

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 53,72 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Cable UseCable
Current Rating20 A
Rated Primary Current (Ipn)20 A
Rated Secondary Current (Isn)5 A
Current Limit FunctionFS 5
Apparent Power Output15 V·A
Secondary Output ConnectionPlug-in connection
Accuracy±0,5%
Model NumberThrough-feed current converter
Number of InputsPrimary 1
Electrical
Frequency (f)50 ... 60 Hz
Material Compliance
RoHS Declaration2CSC445013K0201
RoHS InformationFollowing EU Directive 2002/95/EC August 18, 2005 and amendment
RoHS Date31/12/2007 0.00.00
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -5 ... 50 °C
Environmental InformationSee RoHS Information
Dimensions
Product Net Width56 mm
Product Net Height26.5 mm
Product Net Depth / Length63 mm
Product Net Weight0.285 kg
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.307 kg
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A5700
Installation
Mounting TypeDIN-Rail
Popular Downloads
Data Sheet, Technical Information9AKK107046A0430
External Classifications and Standards
ETIM 9EC002048 - Current transformer
ETIM 10EC002048 - Current transformer
eClassV11.0 : 27210902
Object Classification CodeT

ETIM for 2CSG111050R1141 Low-voltage industrial controls and switchgear (EC002048)

Feature nameModel (EF000010)
Feature valueThrough-feed current converter
Feature nameRated primary current (EF007405)
Feature value20 A
Feature nameRated secondary current (EF007471)
Feature value5 A
Feature nameRated secondary apparent power (EF007470)
Feature value15 VA
Feature nameAccuracy class (EF008842)
Feature value0.5
Feature nameOvercurrent limiting factor (EF007511)
Feature valueFS 5
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameWith contact protection (EF008186)
Feature valueYes
Feature nameHeight opening (EF012757)
Feature value8 mm
Feature nameWidth opening (EF012758)
Feature value8 mm
Feature nameSnap mounting (EF007462)
Feature valueYes
Feature nameWith copper rail (EF007380)
Feature valueYes
Feature nameSecondary connection (EF021093)
Feature valuePlug-in connection
Feature nameNumber of primary inputs (EF006947)
Feature value1
