ABBAER and Transformers2CSG201150R1101 ABB CT80/400 Split core current transformer

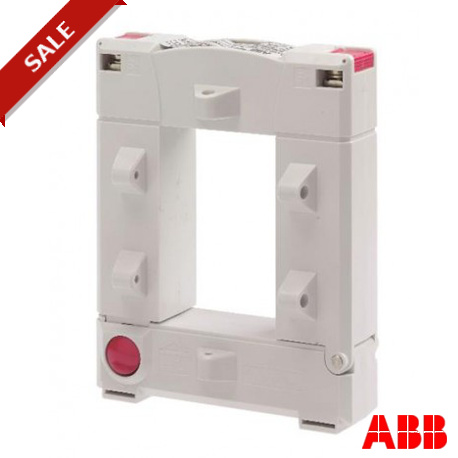

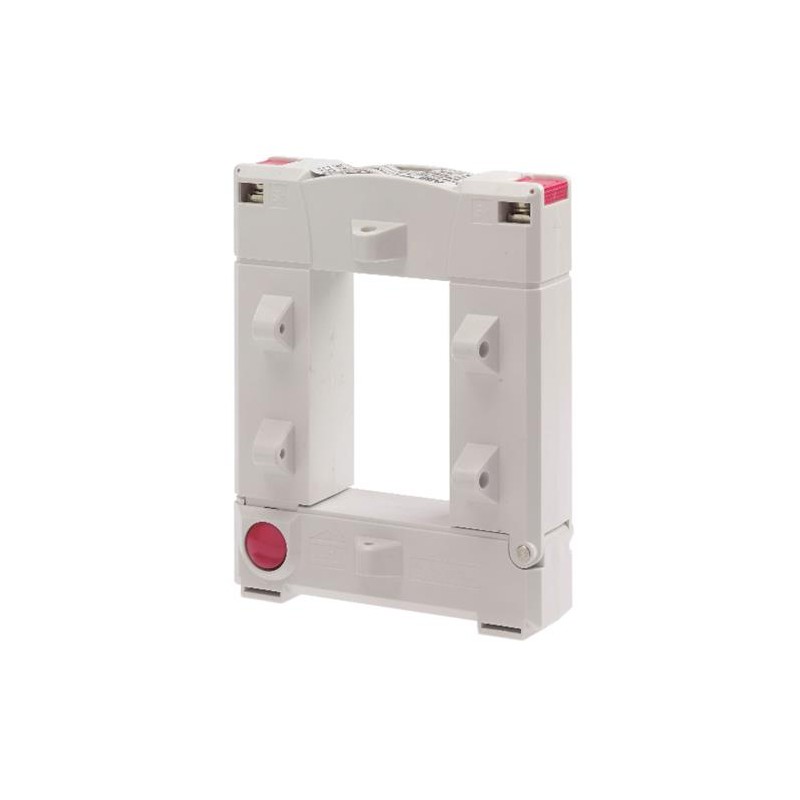

ABB 2CSG201150R1101 2CSG201150R1101 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSG201150R1101 ABB CT80/400 Split core current transformer

Reference: 2CSG201150R1101

Manufacturer: ABB

Description:

CT80/400 Split core current transformer
Trans. intens. Split Core 400/5

Categories:

  • Low-voltage industrial components > Current transformer
  • ABB > AER and Transformers

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CT80/400 is a split core current transformer used to transform primary currents to../5A secondary currents for c.a. measurement instruments

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85043121

Popular Downloads

  • Data Sheet, Technical Information:
    2CSC400002D0209

Dimensions

  • Product Net Width:
    0.125m
  • Product Net Height:
    0.152m
  • Product Net Depth:
    0.034m
  • Product Net Weight:
    1.100kg

Technical

  • Mounting Type:
    Split core through primary
  • Rated Cross-Section:
    3 x 80 x 10 mm
  • Rated Primary Current (Ipn):
    400 A

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    ITSCE115CT
  • Environmental Information:
    See RoHS Information
  • Instructions and Manuals:
    Not applicable
  • RoHS Information:
    2CSC445004K0901

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.23 m
  • Package Level 1 Height:
    0.12 m
  • Package Level 1 Length:
    0.3 m
  • Package Level 1 Gross Weight:
    1.1 kg
  • Package Level 1 EAN:
    8012542888307

Classifications

  • Object Classification Code:
    T
  • ETIM 4:
    EC002048 - Current transformer
  • ETIM 5:
    EC002048 - Current transformer
  • ETIM 6:
    EC002048 - Current transformer
