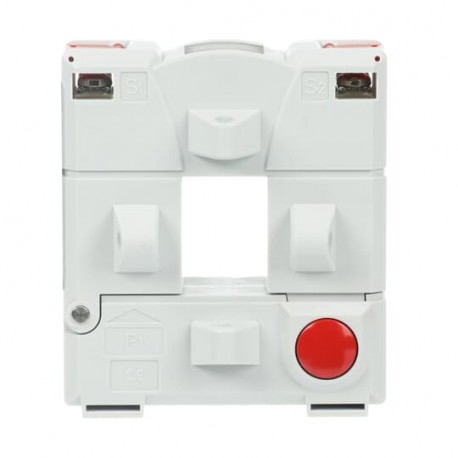

ABB 2CSG101150R1101 2CSG101150R1101 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSG101150R1101 ABB CT30/400 Split core current transformer

Reference: 2CSG101150R1101

Manufacturer: ABB

Description:

CT30/400 Split core current transformer
Trans. intens. Split Core 400/5

Categories:

  • Low-voltage industrial components > Current transformer
  • ABB > AER and Transformers

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CT30/400 is a split core current transformer used to transform primary currents to../5A secondary currents for c.a. measurement instruments

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85043121

Popular Downloads

  • Data Sheet, Technical Information:
    2CSC400002D0209

Dimensions

  • Product Net Width:
    0.093m
  • Product Net Height:
    0.106m
  • Product Net Depth:
    0.034m
  • Product Net Weight:
    0.850kg

Technical

  • Mounting Type:
    Split core through primary
  • Rated Cross-Section:
    2 x 30 x 10 mm
  • Rated Primary Current (Ipn):
    400 A

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    ITSCE115CT
  • Environmental Information:
    See RoHS Information
  • Instructions and Manuals:
    Not applicable
  • RoHS Information:
    2CSC445004K0901

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.23 m
  • Package Level 1 Height:
    0.12 m
  • Package Level 1 Length:
    0.3 m
  • Package Level 1 Gross Weight:
    0.85 kg
  • Package Level 1 EAN:
    8012542888109

Classifications

  • Object Classification Code:
    T
  • ETIM 4:
    EC002048 - Current transformer
  • ETIM 5:
    EC002048 - Current transformer
  • ETIM 6:
    EC002048 - Current transformer

ETIM for 2CSG101150R1101 Low-voltage industrial controls and switchgear (EC002048)

Feature nameModel (EF000010)
Feature valueThrough-feed current converter
Feature nameRated primary current (EF007405)
Feature value400 A
Feature nameAccuracy class (EF008842)
Feature value0.5
Feature nameOvercurrent limiting factor (EF007511)
Feature valueFS 5
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameWith contact protection (EF008186)
Feature valueYes
Feature nameHeight opening (EF012757)
Feature value30 mm
Feature nameWidth opening (EF012758)
Feature value20 mm
Feature nameOpening diameter (EF005153)
Feature value156 mm
Feature nameSnap mounting (EF007462)
Feature valueNo
Feature nameWith copper rail (EF007380)
Feature valueNo
Feature nameSecondary connection (EF021093)
Feature valueScrew connection
Feature nameNumber of primary inputs (EF006947)
Feature value1
