ABBCommand and signaling1SFA619402R1005 ABB PILOT ALL-IN-ONE WHITE

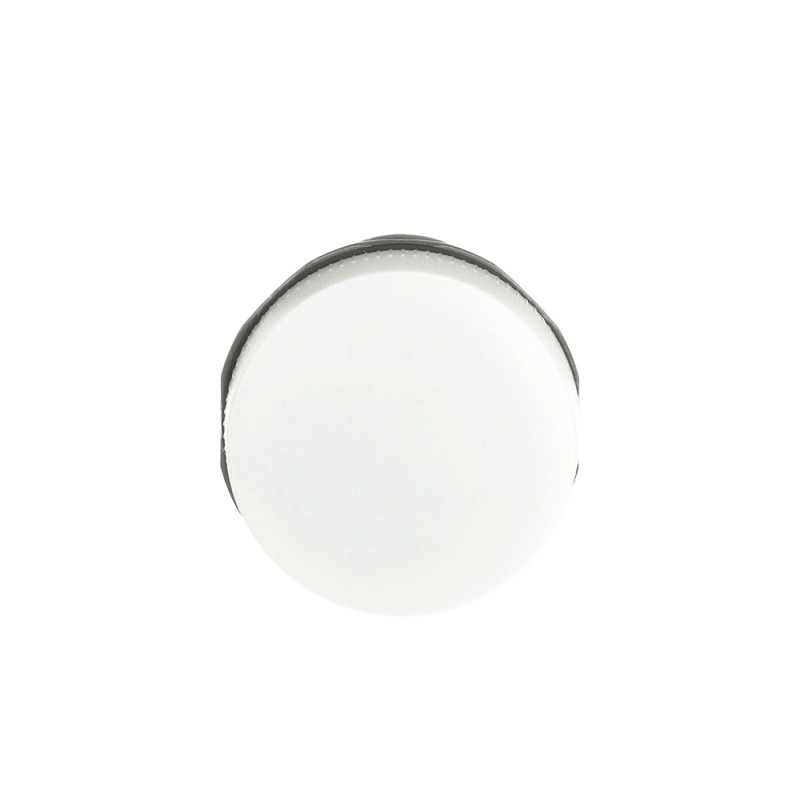

ABB 1SFA619402R1005 1SFA619402R1005 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SFA619402R1005 ABB PILOT ALL-IN-ONE WHITE

Reference: 1SFA619402R1005

Manufacturer: ABB

Description:

PILOT ALL-IN-ONE WHITE
ALL-IN-ONE PILOT LIGHT WHITE
CL-100W Pilot Light

Categories:

  • Low-voltage industrial components > Indicator light complete
  • ABB > Command and signaling

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 8,68 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536619090
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width0.03 m
Product Net Height0.03 m
Product Net Depth / Length0.055 m
Product Net Weight0.018 kg
Technical
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -40 ... +85 °C
ColorWhite
Actuator TypePilot light head
IlluminationIlluminated
Lamp TypeBa9s
Enclosure Type NEMAType1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree3
Rated Frequency (f)Supply Circuit 60 50 Hz
Rated Operational VoltageMaximum 240 V
Rated Operational Current AC-15 (Ie)(24 / 127 V) 1.5 A
(220 / 240 V) 1 A
Connecting CapacityFlexible with Ferrule 1 x 0.75...2.5 mm²
Flexible with Ferrule 2 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²
Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x 0.75...2.5 mm²
Solid 2 x 0.75...2.5 mm²
Connection TypeScrew Clamp
Terminal TypeScrew Terminals
Tightening Torque0.9 N·m
Wire Stripping Length8 mm
Suitable ForBulb 3W max.
Suitable for Product ClassPilot Devices
Technical UL/CSA
Connecting Capacity UL/CSA1x 18...14 AWG
2x 18...14 AWG
Environmental
Degree of ProtectionFront IP66
Front IP67
Front IP69K
Terminals IP20
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CB CertificateCQC_CN_CN50749
CQC CertificateCQC2003010305054693
cURus CertificateUL_E496500-20171020
Declaration of Conformity - CCC2020980305001187
Declaration of Conformity - CE2CMT2015-005451
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate9AKK107046A3749
Container Information
Package Level 1 Unitsbag 10 piece
Package Level 1 Width0.235 m
Package Level 1 Depth / Length0.125 m
Package Level 1 Height0.035 m
Package Level 1 Gross Weight0.18 kg
Package Level 1 EAN7320500204153
External Classifications and Standards
Object Classification CodeP
ETIM 6EC000272 - Indicator light complete
ETIM 7EC000272 - Indicator light complete
ETIM 8EC000272 - Indicator light complete
eClassV11.0 : 27371223
UNSPSC39121534
IDEA Granular Category Code (IGCC)4766 >> Indicator or pilot lights
E-Number (Finland)2314758
E-Number (Norway)4372565
E-Number (Sweden)3711208

ETIM for 1SFA619402R1005 Low-voltage industrial controls and switchgear (EC000272)

Feature nameNumber of indicator lights (EF001965)
Feature value1
Feature nameColour lens (EF000207)
Feature valueWhite
Feature nameType of lamp socket (EF008229)
Feature valueBA9s
Feature nameWith light source (EF005905)
Feature valueNo
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameConstruction type lens (EF006253)
Feature valueRound
Feature nameType of lens (EF008343)
Feature valueHigh
Feature nameHole diameter (EF000079)
Feature value22 mm
Feature nameWidth opening (EF004565)
Feature value0 mm
Feature nameHeight opening (EF004778)
Feature value0 mm
Feature nameWith front ring (EF006014)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67/IP69K
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther

DATASHEET - PDF

Title
Size
Type
PDF CATALOG PILOT DEVICES EN
40 Mbytes
