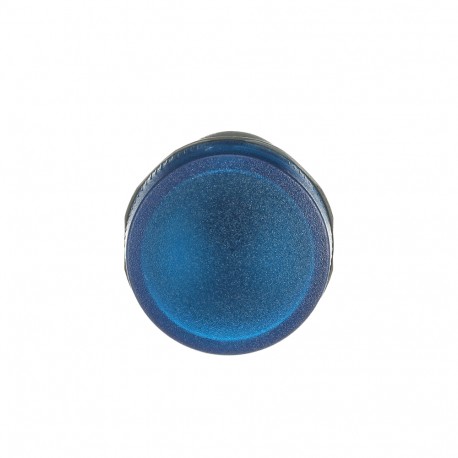

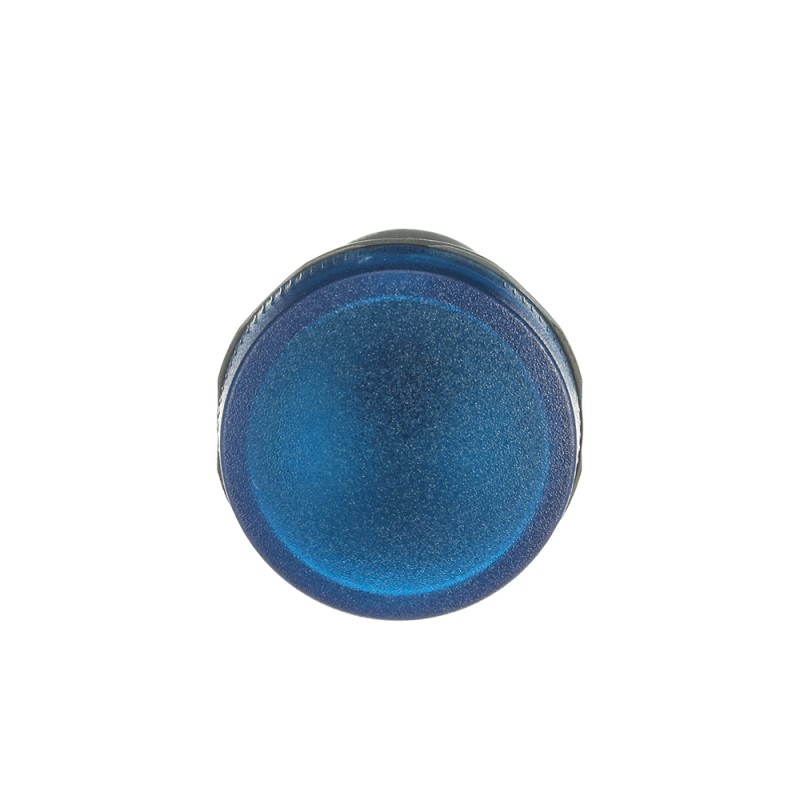

1SFA619402R1004 ABB PILOT ALL-IN-ONE BLUE
1SFA619402R1004
ABB
PILOT ALL-IN-ONE BLUE
BLUE ALL-IN-ONE PILOT
CL-100L Pilot Light
Low-voltage industrial components > Indicator light complete
Command and signaling
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536619090 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 0.03 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.055 m |
| Product Net Weight | 0.018 kg |
| Technical | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Color | Blue |
| Actuator Type | Pilot light head |
| Illumination | Illuminated |
| Lamp Type | Ba9s |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Pollution Degree | 3 |
| Rated Frequency (f) | Supply Circuit 60 50 Hz |
| Rated Operational Voltage | Maximum 240 V |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 1.5 A |
| (220 / 240 V) 1 A | |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm² |
| Flexible with Ferrule 2 x 0.75...2.5 mm² | |
| Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | |
| Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | |
| Flexible 1 x 0.75 ... 2.5 mm² | |
| Flexible 2 x 0.75 ... 2.5 mm² | |
| Solid 1 x 0.75...2.5 mm² | |
| Solid 2 x 0.75...2.5 mm² | |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Suitable For | Bulb 3W max. |
| Suitable for Product Class | Pilot Devices |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | 1x 18...14 AWG |
| 2x 18...14 AWG | |
| Environmental | |
| Degree of Protection | Front IP66 |
| Front IP67 | |
| Front IP69K | |
| Terminals IP20 | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | CQC_CN_CN50749 |
| CQC Certificate | CQC2003010305054693 |
| cURus Certificate | UL_E496500-20171020 |
| Declaration of Conformity - CCC | 2020980305001187 |
| Declaration of Conformity - CE | 2CMT2015-005451 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 9AKK107046A3749 |
| Container Information | |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 0.235 m |
| Package Level 1 Depth / Length | 0.125 m |
| Package Level 1 Height | 0.035 m |
| Package Level 1 Gross Weight | 0.18 kg |
| Package Level 1 EAN | 7320500204146 |
| External Classifications and Standards | |
| Object Classification Code | P |
| ETIM 6 | EC000272 - Indicator light complete |
| ETIM 7 | EC000272 - Indicator light complete |
| ETIM 8 | EC000272 - Indicator light complete |
| eClass | V11.0 : 27371223 |
| UNSPSC | 39121534 |
| IDEA Granular Category Code (IGCC) | 4766 >> Indicator or pilot lights |
| E-Number (Finland) | 2314757 |
| E-Number (Norway) | 4372564 |
| E-Number (Sweden) | 3711206 |
| Feature Name | Feature Value |
|---|---|
| Number of indicator lights (EF001965) | 1 |
| Colour lens (EF000207) | Blue |
| Type of lamp socket (EF008229) | BA9s |
| With light source (EF005905) | No |
| Type of electric connection (EF003961) | Screw connection |
| Construction type lens (EF006253) | Round |
| Type of lens (EF008343) | High |
| Hole diameter (EF000079) | 22 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| With front ring (EF006014) | No |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PILOT DEVICES EN.pdf | 40 Mbytes |
|
