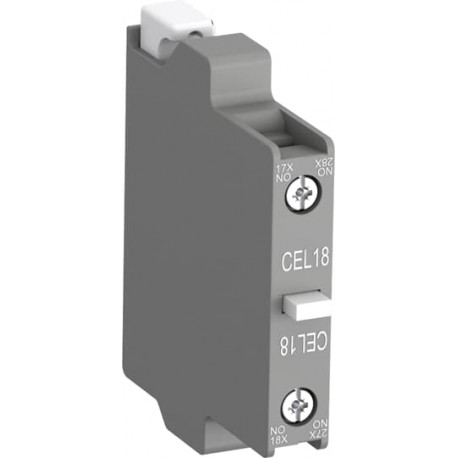

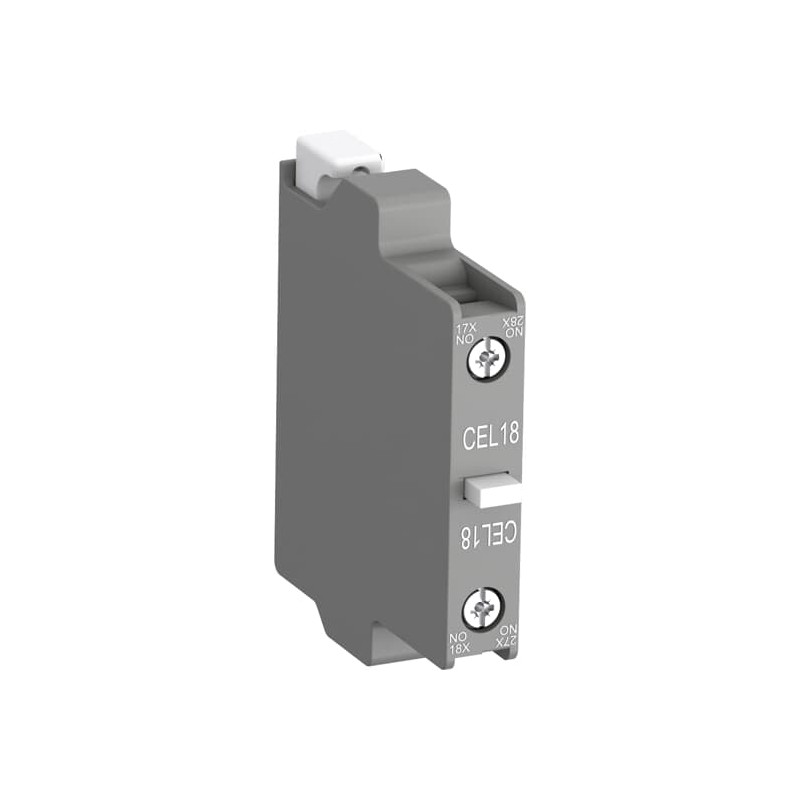

1SFN010716R1001 ABB CEL18-01 Contact AUX. for cont.
1SFN010716R1001
ABB
CEL18-01 Contact AUX. for cont.
CEL18-01 Auxiliary Contact Block
Low-voltage industrial components > Auxiliary contact block
Contactors and overload relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369010 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC101009M5501 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 65 mm |
| Product Net Depth / Length | 12 mm |
| Product Net Height | 74 mm |
| Product Net Weight | 0.04 kg |
| Technical | |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 1 |
| Rated Operational Voltage | Auxiliary Circuit 125 V |
| Power Loss | at Rated Operating Conditions per Pole 0.15 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm² |
| Flexible with Ferrule 2x 0.75 ... 2.5 mm² | |
| Rigid 1 x 1 ... 4 mm² | |
| Rigid 2 x 1 ... 4 mm² | |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Degree of Protection | IP20 |
| Recommended Screw Driver | Auxiliary Circuit 1 x 5.5 |
| Auxiliary Circuit Pozidriv 2 | |
| Tightening Torque | Auxiliary Circuit 1 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AF400 |
| AF460 | |
| AF580 | |
| AF750 | |
| AF1250 | |
| AF1350 | |
| AF1650 | |
| AF2050 | |
| AF2650 | |
| AF2850 | |
| GAF185 | |
| GAF300 | |
| GAF460 | |
| GAF750 | |
| GAF1250 | |
| GAF1650 | |
| GAF2050 | |
| A95 | |
| A110 | |
| A145 | |
| A185 | |
| A210 | |
| A260 | |
| A300 | |
| UA95 | |
| UA110 | |
| AF95 | |
| AF110 | |
| AF145 | |
| AF185 | |
| AF210 | |
| AF260 | |
| AF300 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Auxiliary Contact Block |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2016010304912317 |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CCC | 2020980304001268 |
| Declaration of Conformity - CE | 2CMT2015-005448 |
| Declaration of Conformity - UKCA | 2CMT2020-006119 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 65 mm |
| Package Level 1 Depth / Length | 75 mm |
| Package Level 1 Height | 16.7 mm |
| Package Level 1 Gross Weight | 0.05 kg |
| Package Level 1 EAN | 7320500258606 |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of fault-signal switches (EF007613) | 0 |
| Type of electric connection (EF003961) | Screw connection |
| Model (EF000010) | Clip-on |
| Mounting method (EF000003) | Side mounting |
| Lamp holder (EF000048) | None |
