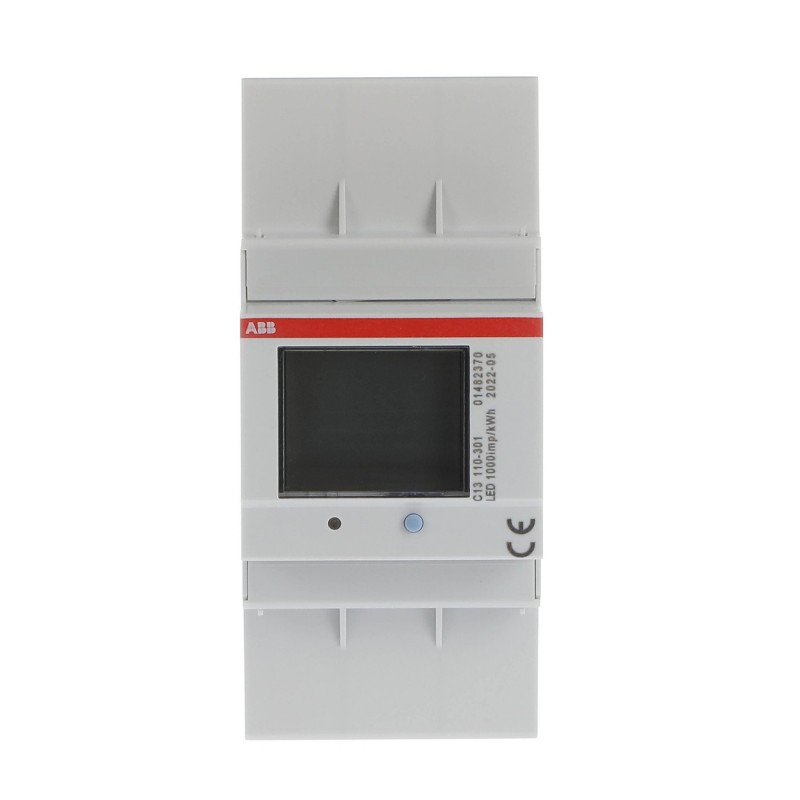

2CMA103575R1000 ABB C13 110-301 IEC Electricity Meter
2CMA103575R1000
ABB
C13 110-301 IEC Electricity Meter
Ener counter. C13 110-300 Steel
Energy meter 'Steel', None, 3-phase, 5 A
Meters > Kilowatt-hour meter
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 66.08 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Process Efficiency - Product contribute to reducing customer operations environmental footprint | |
| Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset | |
| Extended Product Lifetime | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| End Of Life Disassembling Instructions | 9AKK108470A1374 |
| Environmental Product Declaration - EPD | 9AKK108467A4138 |
| Technical | |
| Function | Electricity meter |
| Sub-Function | Steel |
| Current Rating | 5 A |
| Communication Interface | None |
| Accuracy | Active Energy Class ±1% |
| Measuring Instrument Conformity | IEC 62053-22 |
| Meter Tariff Rating | One-Tariff |
| Pulse Output Rate | 1000 |
| Number of Poles | 4P |
| Number of Phases | 3-phase |
| Number of Counter Positions | 7 |
| Number of Digital In/Outputs | 1 Digital Output |
| Meter Type | Direct connected |
| Pulse Output Type | Electrical |
| Type of Indicator | Digital |
| Electrical | |
| Rated Voltage (Ur) | 3x220-240 V |
| Voltage Range | 3x176…276 V |
| Rated Current (In) | 5 A |
| Maximum 40 A | |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Consumption (@Pcons) | 0.72 W |
| Power Loss | 0.64 W |
| Design | |
| Enclosure Material | Polycarbonate in transparent front glass and terminal cover. Glass reinforced polycarbonate in housing. |
| Material Compliance | |
| RoHS Declaration | 2CMC486006 |
| RoHS Information | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| RoHS Date | 20190722 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 70 °C |
| Degree of Protection | IP20 |
| Dimensions | |
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 54 mm |
| Product Net Height | 26.5 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 170 g |
| Dimension Diagram | 2CMC486004M0201 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.250 kg |
| E-Number (Finland) | 6701067 |
| Replacement Product ID (NEW) | 2CMA241725R1000 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CMC486004D0001 |
| EU Data Act Compliance Declaration | Not applicable |
| Installation | |
| Instructions and Manuals | 2CMC486006M0201 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CMC486004M0201 |
| External Classifications and Standards | |
| ETIM 9 | EC001506 - Kilowatt-hour meter |
| ETIM 10 | EC001506 - Electricity meter |
| eClass | V11.0 : 27142316 |
| Object Classification Code | P |
| Feature Name | Feature Value |
|---|---|
| Type of meter (EF005441) | Electronic |
| Nominal current (In) (EF008873) | 40 A |
| Max. current (Imax) (EF000877) | 40 A |
| Pole type (EF008843) | Four conductor |
| Tariff type (EF007550) | One-tariff |
| Measurement type load profile (EF008844) | No |
| Escapement mechanism (EF008835) | Yes |
| Calibrated (EF008836) | Yes |
| Pulse output (EF008838) | Electrical |
| Pulse type (EF008839) | S0 |
| Type of indication (EF000306) | Digital |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Width in number of modular spacings (EF002950) | 3 |
| Width (EF000008) | 54 mm |
| Depth (EF000049) | 65 mm |
| Height (EF000040) | 26.5 mm |
| Type of interface (EF006977) | None |
| EEC40 signature (EF008845) | No |
| With lock code (EF008846) | No |
| Number of positions total (counter) (EF004442) | 7 |
| Degree of protection (IP) (EF005474) | IP20 |
