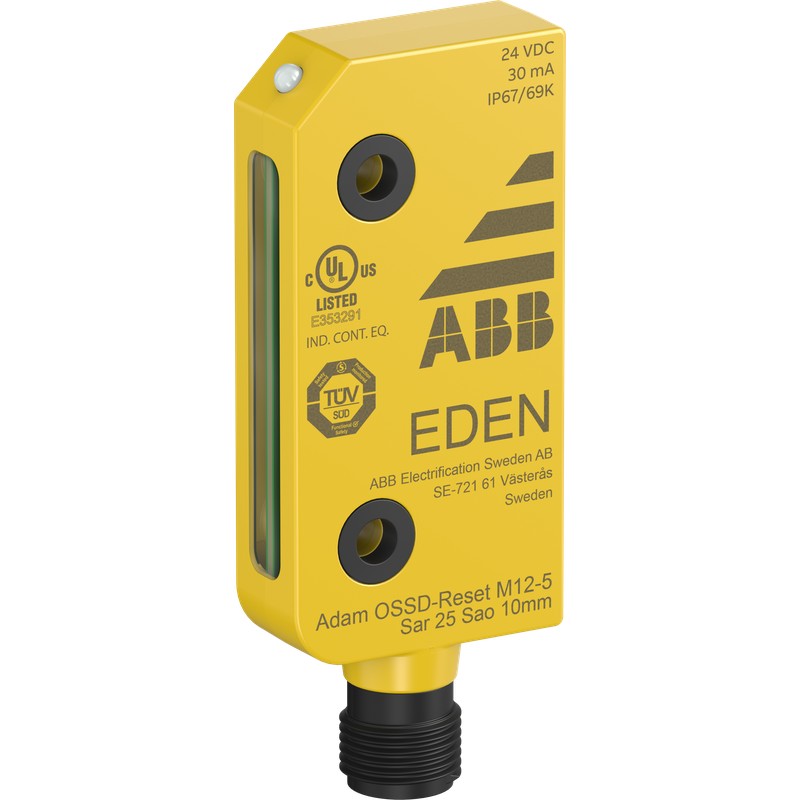

2TLA020051R5600 ABB Adam OSSD-Reset M12-5 contacts
2TLA020051R5600
ABB
Adam OSSD-Reset M12-5 contacts
Adam OSSD-Reset M12-5 Sensor
Sensors > Magnetic proximity switch
Fences and rolling doors
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536508000 |
| Product Main Type | Eden |
| Product Name | Sensor |
| Function | Non-contact safety sensor used as interlocking device - Actuator to be ordered separately |
| Sub-Function | Local reset |
| Status Indicator | Yes |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010044L0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC170156_EPLAN |
| Marketing Video | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| Installation | |
| Instructions and Manuals | 2TLC172272M0201 |
| Mounting Type | Not flat |
| Dimensions | |
| Product Net Depth / Length | 12 mm |
| Product Net Height | 75.2 mm |
| Product Net Width | 30 mm |
| Product Net Weight | 0.026 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Certification Agency | TÜV Süd |
| Safety Category | 4 |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 3 |
| Technical | |
| Communication Interface | OSSD |
| Connection Configuration | M12-5 male |
| Number of Outputs | Non-Failsafe, Undelayed Contacts 0 |
| Non-Failsafe, Undelayed Semiconductors 0 | |
| Operating Distance (Sn) | 15 mm |
| PCB Coated | No |
| Probability of Dangerous Failure per Hour (PFDH) | 4.5 10-9 hour |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Technical UL/CSA | |
| Enclosure Type UL/CSA | 4X |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 70 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection | IP67 |
| IP69K | |
| Material | Housing: Plastic (PBT) |
| Coating housing: Uncoated | |
| Moulding: Epoxy | |
| Operating Humidity (RHamb) | 35 to 85% (no icing, no condensation) |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| SCIP | 1f769628-8c71-4388-ab42-ad482c26aa82 Sweden |
| Simplified SCIP | 96a8b783-bcb6-480e-95bb-6f6c2a6a3c74 Bulgaria |
| 1790d411-d872-48f8-9d06-0fb190bb3eff Italy | |
| d00408bc-117e-4478-ad8b-579c497ea4fd Sweden | |
| f5b3113a-8c90-47a2-a774-24ad6bca7547 Poland | |
| 24afd831-097a-4e0d-be6a-e6af8b6991e3 France | |
| 04b0fc50-9c63-4d8a-908b-bae190593cbc Germany | |
| 93ba5adb-5b26-485d-88ba-d166c09ad8dd France | |
| dee101ea-0368-4bed-84c5-870826eddc7d Hungary | |
| 3d7727ad-5da8-4a8d-9f7b-92c77ba24d02 Spain | |
| 62f99e27-7c5e-418e-a318-4a04ac94a04b Belgium | |
| 7c44936a-6fb6-498d-8d42-b961e8cf94c2 Germany | |
| 321ea34a-bb27-42f9-a04d-1e51db1ca5ac Poland | |
| d25d8fdb-2db7-485f-a1b3-0cb8c6cc5961 Norway | |
| e622bf4f-a331-440d-9e67-8678d91932c4 Finland | |
| bac0231f-a99f-4fa0-b84e-80f850ff727c Germany | |
| 2a23cf86-c49a-4493-a9f2-89a7f3ba6aa6 Denmark | |
| 46bf408a-7ba7-4d52-b46a-49f5424e08b4 Germany | |
| df831279-9ddc-4be2-b6d7-5c90d6694fba Croatia | |
| d50c6f15-4f6b-4dcf-9bcc-5f3d6f26deae Czech Republic | |
| 35dc6860-1223-4d0e-8603-e482ded31239 Poland | |
| 1024d595-67c4-4d22-8ac1-de80266639f4 Netherlands | |
| 72252e09-6db1-41de-8191-0ac7aed5ca21 Hungary | |
| 14bffc74-c4ac-47bd-b05b-fbbf6d7a226f Estonia | |
| d86af56e-6e62-47b4-807d-7ac90aa6dcee Greece | |
| 7b24b82f-9343-4dbd-9e6c-f5ed21508d55 Germany | |
| b850a610-7c67-4054-9f75-ce070a0aa855 Portugal | |
| 827b0124-6e5a-49f2-8a97-8b8d44c56218 Belgium | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Environmental Product Declaration - EPD | 2TLC010222D0201 |
| Certificates and Declarations | |
| cULus Certificate | 2TLC172264D0201 |
| Declaration of Conformity - CE | 2TLC172261D0201 |
| Declaration of Conformity - UKCA | 2TLC010160D0201 |
| TÜV Certificate | 2TLC172297D0201 |
| UL Certificate | 2TLC172264D0201 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.016 m |
| Package Level 1 Depth / Length | 0.075 m |
| Package Level 1 Height | 0.075 m |
| Package Level 1 Gross Weight | 0.052 kg |
| Package Level 1 EAN | 7350024480351 |
| External Classifications and Standards | |
| eClass | V11.0 : 27272402 |
| ETIM 7 | EC002544 - Magnetic proximity switch |
| ETIM 8 | EC002544 - Magnetic proximity switch |
| ETIM 9 | EC002544 - Magnetic proximity switch |
| IDEA Granular Category Code (IGCC) | 6147 >> Non contact sensors |
| UNSPSC | 41111916 |
| Object Classification Code | B |
| E-Number (Sweden) | 3861645 |
Datasheet - PDF
