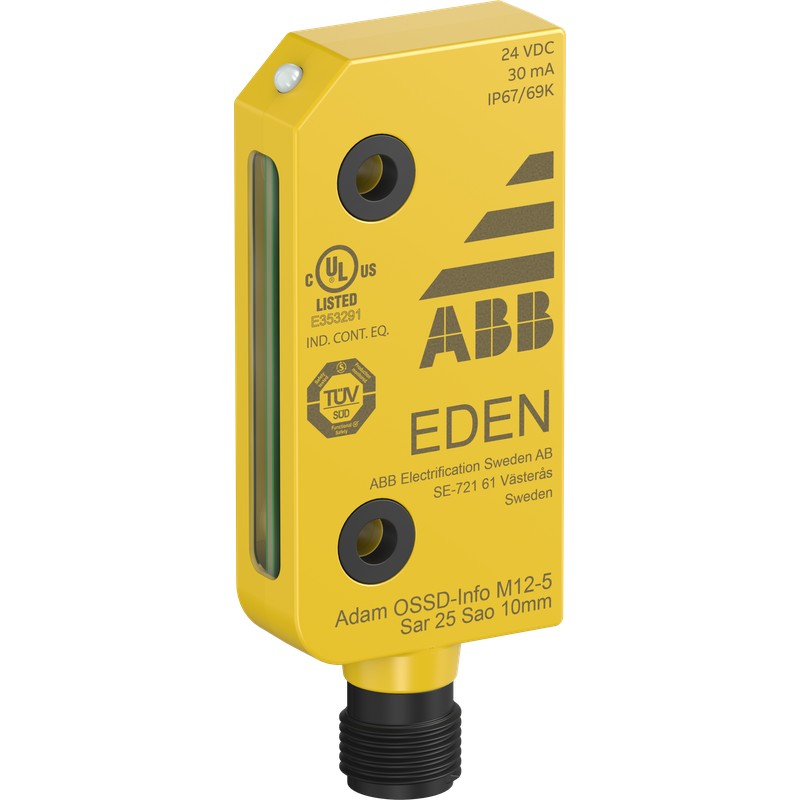

2TLA020051R5400 ABB Adam OSSD-Info M12-5 contacts
2TLA020051R5400
ABB
Adam OSSD-Info M12-5 contacts
Adam OSSD-Info M12-5 connections
Adam OSSD-Info M12-5 Sensor
Sensors > Magnetic proximity switch
Fences and rolling doors
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536508000 |
| Product Main Type | Eden |
| Product Name | Sensor |
| Function | Non-contact safety sensor used as interlocking device - Actuator to be ordered separately |
| Sub-Function | Info signal |
| Status Indicator | Yes |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010044L0201 |
| Data Sheet, Technical Information (Part 2) | 2TLC172211D0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC170156_EPLAN |
| Marketing Video | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| Installation | |
| Instructions and Manuals | 2TLC172272M0201 |
| Mounting Type | Not flat |
| Dimensions | |
| Product Net Depth / Length | 12 mm |
| Product Net Height | 75.2 mm |
| Product Net Width | 30 mm |
| Product Net Weight | 0.026 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Certification Agency | TÜV Süd |
| Safety Category | 4 |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 3 |
| Technical | |
| Communication Interface | OSSD |
| Connection Configuration | M12-5 male |
| Number of Outputs | Non-Failsafe, Undelayed Contacts 0 |
| Non-Failsafe, Undelayed Semiconductors 1 | |
| Operating Distance (Sn) | 15 mm |
| PCB Coated | No |
| Probability of Dangerous Failure per Hour (PFDH) | 4.5 10-9 hour |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Technical UL/CSA | |
| Enclosure Type UL/CSA | 4X |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 70 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection | IP67 |
| IP69K | |
| Material | Housing: Plastic (PBT) |
| Coating housing: Uncoated | |
| Moulding: Epoxy | |
| Operating Humidity (RHamb) | 35 to 85% (no icing, no condensation) |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| SCIP | cbbc22e5-771f-4bd3-b31a-8d28cb4437fa Sweden |
| Simplified SCIP | eacc2cea-59e6-4079-a330-3c9f6e3a781f Belgium |
| 58012b90-62cc-495b-b5db-c0b8d797eff2 Portugal | |
| d0354346-9016-4cb7-9280-6d8c737aaedb Germany | |
| 11d36ce9-0034-44d2-b3b9-4863fd983298 Bulgaria | |
| 5c3ac2ee-b157-44fe-a526-bb1977b65253 Italy | |
| f7f6fe5f-1be8-4c60-adde-e62e7151b02a Sweden | |
| 0b85351a-1410-4b6a-a2f8-6e6d480b4289 Poland | |
| 926e1b0a-3701-4eff-8014-da7082164e47 France | |
| 5fa770bb-5307-41c8-b14e-e49e826c55e4 Germany | |
| 7c8b1658-a6f7-4976-a939-7174715ecc22 France | |
| d9f08165-b065-44bf-bba4-bf295a6246d4 Hungary | |
| 2bca86d1-7c5b-47d0-998b-46e398aa665d Spain | |
| fb82a091-ca5f-4bce-a992-2b604124c8e1 Belgium | |
| 1a481684-4fdd-4ae7-8e0a-5939c56cbcb1 Germany | |
| 682175ca-266d-4d5a-bde0-e7b76530e5d7 Poland | |
| 982e88ec-82de-46d5-8029-abce119fae1b Norway | |
| f087e91f-6287-4991-94f8-17878007d30b Finland | |
| 39ba6110-d83e-49d4-8713-cf6aa3d6fdec Germany | |
| 5a219d4d-bfec-48fa-b6c6-d28dc41b6204 Denmark | |
| 2ef86b82-f721-44c3-b543-b07d6f5495bb Germany | |
| 60d07686-c8f9-4a49-8ada-1c009e2ba10e Croatia | |
| 0bec360e-f50a-4588-ac85-a4b28cd48754 Czech Republic | |
| 7d75357b-b82c-4a3b-9659-ac8403ce11d6 Poland | |
| ff383906-1621-4945-a145-0db64455fa09 Netherlands | |
| 8978e607-f10b-4387-a2db-610a0d432ae3 Hungary | |
| cfb906ae-89f5-43d2-b16d-ce8e6deb36d6 Estonia | |
| 94e23e2e-92ea-45c2-9ae1-80f6ae96eaf9 Greece | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Environmental Product Declaration - EPD | 2TLC010222D0201 |
| Certificates and Declarations | |
| cULus Certificate | 2TLC172264D0201 |
| Declaration of Conformity - CE | 2TLC172261D0201 |
| Declaration of Conformity - UKCA | 2TLC010160D0201 |
| TÜV Certificate | 2TLC172297D0201 |
| UL Certificate | 2TLC172264D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 0.016 m |
| Package Level 1 Depth / Length | 0.075 m |
| Package Level 1 Height | 0.075 m |
| Package Level 1 Gross Weight | 0.052 kg |
| Package Level 1 EAN | 7350024480337 |
| External Classifications and Standards | |
| eClass | V11.0 : 27272402 |
| ETIM 7 | EC002544 - Magnetic proximity switch |
| ETIM 8 | EC002544 - Magnetic proximity switch |
| ETIM 9 | EC002544 - Magnetic proximity switch |
| IDEA Granular Category Code (IGCC) | 6147 >> Non contact sensors |
| UNSPSC | 41111916 |
| Object Classification Code | B |
| E-Number (Finland) | 2314983 |
| E-Number (Sweden) | 3830215 |
| Feature Name | Feature Value |
|---|---|
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Type of actuation (EF006949) | Transponder |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Connector M12 |
| Type of switching output (EF003962) | PNP |
| Width sensor (EF007094) | 30 mm |
| Height of sensor (EF007283) | 75.2 mm |
| Length of sensor (EF007334) | 12 mm |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Special construction |
| Housing material (EF001596) | Plastic |
| Coating housing (EF001601) | Uncoated |
| Protected switch distance OFF (EF004011) | 25 mm |
| Protected switch distance ON (EF004012) | 10 mm |
| SIL according to IEC 61508 (EF009889) | 3 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| Max. output current at protected output (EF004035) | 0.05 mA |
| Ambient temperature (EF002386) | -40 °C |
| Mechanical mounting condition for sensor (EF004041) | Not flat |
| Rated supply voltage DC (EF007078) | 24 V |
| Voltage type (EF000187) | DC |
| Cross-/short circuit identification possible (EF004093) | Yes |
| Switching distance (EF003647) | 15 mm |
| With monitoring function downstream switching devices (EF004052) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| With status indication (EF001602) | Yes |
| Degree of protection (IP) (EF005474) | IP67 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG SAFETY EN.pdf | 42 Mbytes |
|
