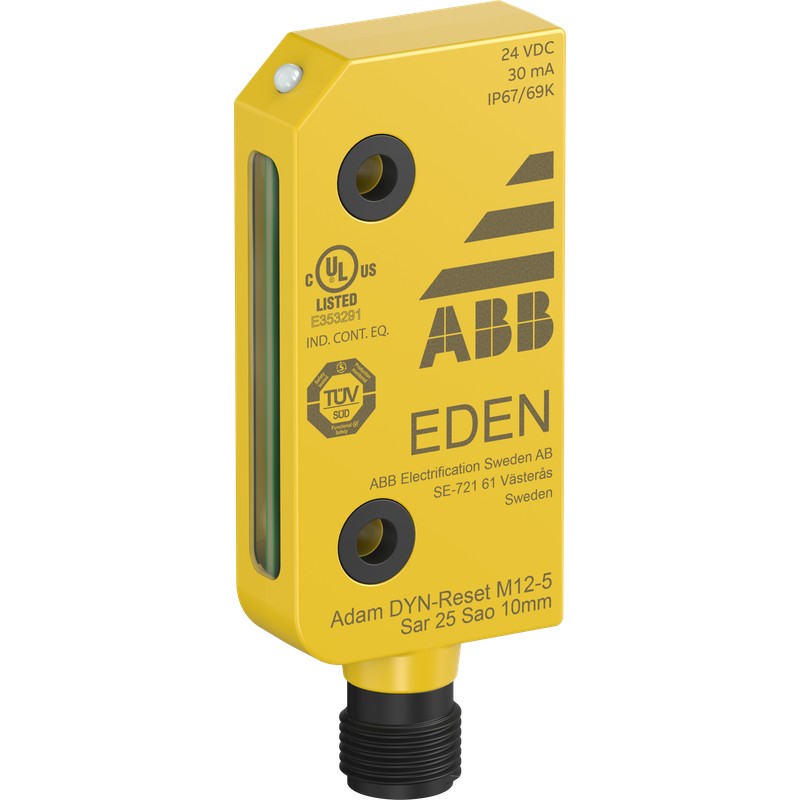

2TLA020051R5300 ABB Adam DYN-Reset M12-thread 5
2TLA020051R5300
ABB
Adam DYN-Reset M12-thread 5
Adam DYN-Reset M12-5 Sensor
Sensors > Magnetic proximity switch
Fences and rolling doors
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536508000 |
| Product Main Type | Eden |
| Product Name | Sensor |
| Function | Non-contact safety sensor used as interlocking device - Actuator to be ordered separately |
| Sub-Function | Local reset |
| Status Indicator | Yes |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010044L0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC170156_EPLAN |
| Marketing Video | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| Installation | |
| Instructions and Manuals | 2TLC172271M0201 |
| Mounting Type | Not flat |
| Dimensions | |
| Product Net Depth / Length | 12 mm |
| Product Net Height | 75.2 mm |
| Product Net Width | 30 mm |
| Product Net Weight | 0.026 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Certification Agency | TÜV Süd |
| Safety Category | 4 |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 3 |
| Technical | |
| Communication Interface | DYNlink |
| Connection Configuration | M12-5 male |
| Number of Outputs | Non-Failsafe, Undelayed Contacts 0 |
| Non-Failsafe, Undelayed Semiconductors 0 | |
| Operating Distance (Sn) | 15 mm |
| PCB Coated | No |
| Probability of Dangerous Failure per Hour (PFDH) | 4.5 10-9 hour |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Technical UL/CSA | |
| Enclosure Type UL/CSA | 4X |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 70 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection | IP67 |
| IP69K | |
| Material | Housing: Plastic (PBT) |
| Coating housing: Uncoated | |
| Moulding: Epoxy | |
| Operating Humidity (RHamb) | 35 to 85% (no icing, no condensation) |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Environmental Product Declaration - EPD | 2TLC010222D0201 |
| Certificates and Declarations | |
| cULus Certificate | 2TLC172139D0201 |
| Declaration of Conformity - CE | 2TLC172133D0201 |
| Declaration of Conformity - UKCA | 2TLC010159D0201 |
| TÜV Certificate | 2TLC172134D0201 |
| UL Certificate | 2TLC172139D0201 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.016 m |
| Package Level 1 Depth / Length | 0.075 m |
| Package Level 1 Height | 0.075 m |
| Package Level 1 Gross Weight | 0.052 kg |
| Package Level 1 EAN | 7350024480320 |
| External Classifications and Standards | |
| eClass | V11.0 : 27272402 |
| ETIM 7 | EC002544 - Magnetic proximity switch |
| ETIM 8 | EC002544 - Magnetic proximity switch |
| ETIM 9 | EC002544 - Magnetic proximity switch |
| IDEA Granular Category Code (IGCC) | 6147 >> Non contact sensors |
| UNSPSC | 41111916 |
| Object Classification Code | B |
| E-Number (Sweden) | 3830233 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG SAFETY EN.pdf | 42 Mbytes |
|
