> ABB>DC chargers>6AGC102584 ABB TWB24-CCS2, 7m+SM cable
Previous Product Next Product

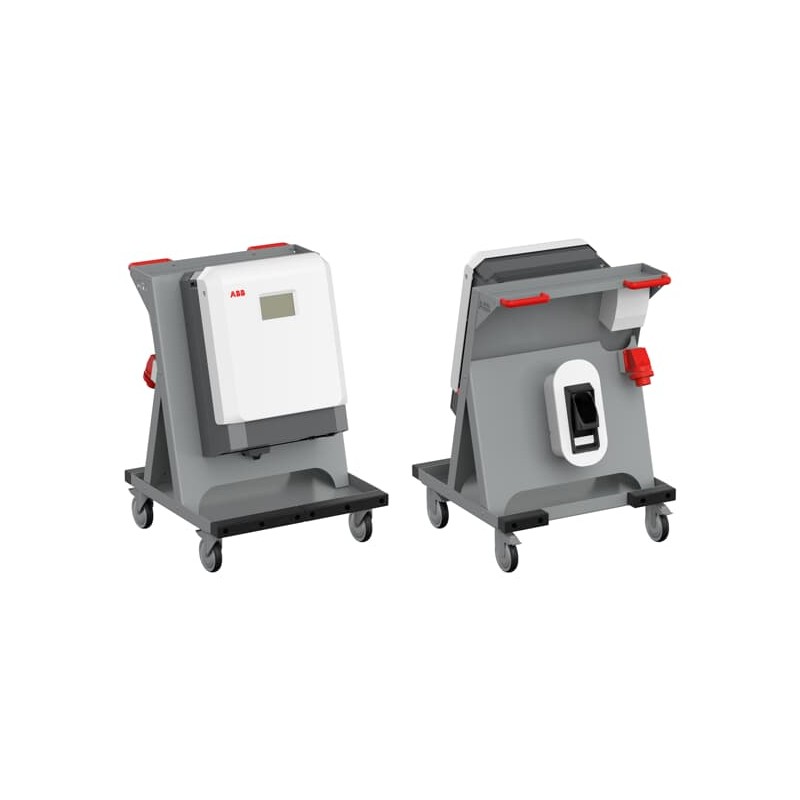

6AGC102584 ABB TWB24-CCS2, 7m+SM cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

6AGC102584 ABB TWB24-CCS2, 7m+SM cable

6AGC102584

ABB

TWB24-CCS2, 7m+SM cable

Terra DC Wallbox 24 kWp, 3 phase, with 1 connector, CCS 2, 7 m cable, 7" display, RFID reader, EMC Class B, and Mobile cart incl. RCD, connector holder, cables, CEE connector, CE

More details


DC chargers

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

\n

General Information

\n
\n
\n\nExtended Product Type:\n\n\n\n
TWB CE 24 C 7T-7M-0-0 + Mobile cart
\n\n
\n
\n\nProduct ID:\n\n\n\n
6AGC102584
\n\n
\n
\n\nABB Type Designation:\n\n\n\n
Terra DC Wallbox XX YYY
\n\n
\n
\n\nAlternative Product Reference:\n\n\n\n
3P600005001A
\n\n
\n
\n\nCatalog Description:\n\n\n\n
TWB CE 24 C 7T-7M-0-0 + Mobile cart Terra DC Wallbox CE 24 kWp, 3 phase, CCS, 7 m cable, EMC Class B + Mobile cart, CE
\n\n
\n
\n\nLong Description:\n\n\n\n
Terra DC Wallbox 24 kWp, 3 phase, with 1 connector, CCS 2, 7 m cable, 7" display, RFID reader, EMC Class B, and Mobile cart incl. RCD, connector holder, cables, CEE connector, CE
\n\n
\n
\n\n
\n \n
\n
\n\n

Technical

\n\n
\n
\n\nEV Connectors:\n\n\n\n
(CCS 2) 1 piece
\n\n
\n
\n\nNumber of Socket Outlets:\n\n\n\n
No socket outlet
\n\n
\n
\n\nCable Length:\n\n\n\n
7 m
\n\n
\n
\n\nOutput Power:\n\n\n\n
Nominal 22 kW
\n
\n
Peak 24 kW
\n\n
\n
\n\nOutput Voltage (Uout):\n\n\n\n
DC 150 ... 920 V
\n\n
\n
\n\nOutput Current:\n\n\n\n
DC 60 A
\n\n
\n
\n\nSupply Voltage:\n\n\n\n
AC 3-phase 480 V
\n\n
\n
\n\nInput Current:\n\n\n\n
3 phase 32 A
\n\n
\n
\n\nNumber of Phases:\n\n\n\n
3
\n\n
\n
\n\nLoad Management Method:\n\n\n\n
OCPP - Based
\n\n
\n
\n\nAuthentication Method:\n\n\n\n
RFID
\n
\n
Pincode
\n\n
\n
\n\nEnergy Meter Type:\n\n\n\n
DC
\n\n
\n
\n\nScreen Size:\n\n\n\n
7 in
\n\n
\n
\n\nMounting Type:\n\n\n\n
Wallmounting
\n\n
\n
\n\nHousing Material:\n\n\n\n
Aluminium
\n\n
\n
\n\nDegree of Protection:\n\n\n\n
acc. to IEC 60529 IP54
\n\n
\n
\n\nImpact Resistance Rating:\n\n\n\n
Housing IK10
\n
\n
Display IK08
\n\n
\n
\n\n\n
\n
\n\n

Dimensions

\n\n
\n
\n\nProduct Net Depth / Length:\n\n\n\n
0.820 m
\n\n
\n
\n\nProduct Net Height:\n\n\n\n
1.140 m
\n\n
\n
\n\nProduct Net Weight:\n\n\n\n
195 kg
\n\n
\n
\n\nPackage Level 1 Units:\n\n\n\n
euro pallet 1 piece
\n\n
\n
\n\nPackage Level 1 Width:\n\n\n\n
0.800 m
\n\n
\n
\n\nPackage Level 1 Height:\n\n\n\n
0.900 m
\n\n
\n
\n\nPackage Level 1 Depth / Length:\n\n\n\n
1.200 m
\n\n
\n
\n\nPackage Level 1 Gross Weight:\n\n\n\n
205 kg
\n\n
\n
\n\n\n
\n
\n\n

Ordering

\n\n
\n
\n\nCountry of Origin:\n\n\n\n
Italy (IT)
\n\n
\n
\n\nCustoms Tariff Number:\n\n\n\n
85044055
\n\n
\n
\n\nSelling Unit of Measure:\n\n\n\n
piece
\n\n
\n
\n\nMinimum Order Quantity:\n\n\n\n
1 piece
\n\n
\n
\n\nETIM 8:\n\n\n\n
EC002883 - Charging device E-Mobility
\n\n
\n
\n\n\n
\n
\n\n

Additional Information

\n\n
\n
\n\nRoHS Status:\n\n\n\n
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
\n\n
\n
\n\nWEEE Category:\n\n\n\n
4. Large Equipment (Any External Dimension More Than 50 cm)
\n\n
\n
