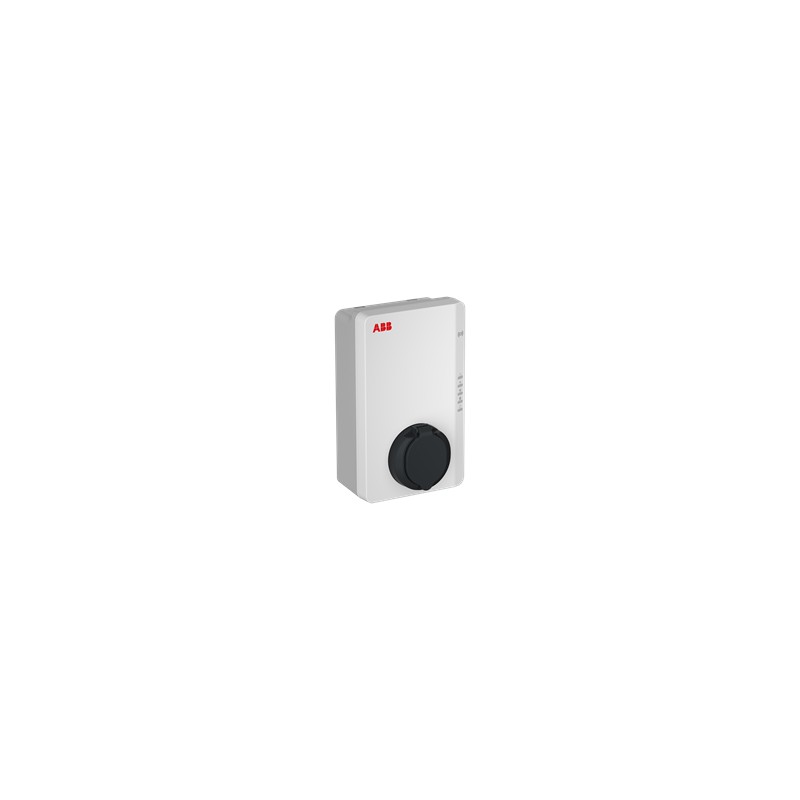

6AGC101252 ABB TAC-7,4kW,shu socket,1F32A RFID
6AGC101252
ABB
TAC-7,4kW,shu socket,1F32A RFID
TAC-W7-S-R-0 Terra AC wallbox type 2, socket with shutter, single phase/32A, with RFID
Industrial socket/plug applications > Charging device E-Mobility
AC chargers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- TAC-W7-S-R-0
- Product ID:
- 6AGC101252
- ABB Type Designation:
- Terra AC
- EAN:
- 8719874452076
- Alternative Product Reference:
- 3Q510004200A
- Catalog Description:
- TAC-W7-S-R-0 Terra AC wallbox type 2, socket with shutter, single phase/32A, with RFID
- Long Description:
- TAC-W7-S-R-0 Terra AC wallbox type 2, socket with shutter, single phase/32A, with RFID
Technical
- EV Connectors:
- No cable outlet
- Number of Socket Outlets:
- (AC Type 2 with Shutter) 1 piece
- Output Power:
- AC 7 kW
- Output Voltage (Uout):
- AC 3-phase 380 ... 415 V
- Output Current:
- 1 phase 32 A
- Connection Power:
- Nominal 7 kW
- Supply Voltage:
- AC 3-phase 380 ... 415 V
- Input Current:
- 1 phase 32 A
- Operating Frequency (fsw):
- 50 ... 60 Hz
- Number of Phases:
- 1
- Number of RCDs Electric Vehicle Supply Equipment:
- Resid. Curr. Monitor
- Number of Miniature Circuit Breakers (MCBs):
- 0
- Overvoltage Category:
- III
- Overload Protection:
- Overcurrent protection at 40 A
- Maximum Operating Altitude Permissible:
- 2000 m
- Communication Interface:
- Wi-Fi
Bluetooth
- Load Management Method:
- OCPP - Based
- Authentication Method:
- RFID
- Energy Meter Type:
- AC
- Mounting Type:
- Wall mounting
- Housing Material:
- Plastic
- Degree of Protection:
- acc. to IEC 60529 IP54
- Impact Resistance Rating:
- IK08
Dimensions
- Product Net Depth / Length:
- 0.143m
- Product Net Height:
- 0.320m
- Product Net Weight:
- 3.0kg
- Package Level 1 Units:
- carton 1 piece
- Package Level 1 Width:
- 0.260 m
- Package Level 1 Height:
- 0.200 m
- Package Level 1 Depth / Length:
- 0.400 m
- Package Level 1 Gross Weight:
- 3.5 kg
- Package Level 1 EAN:
- 8719874452076
- Package Level 2 Units:
- crate 8 piece
- Package Level 2 Width:
- 0.830 m
- Package Level 2 Height:
- 0.200 m
- Package Level 2 Depth / Length:
- 1.120 m
- Package Level 2 Gross Weight:
- 28 kg
Ordering
- Country of Origin:
- China (CN)
- Customs Tariff Number:
- 85371098
- Selling Unit of Measure:
- piece
- Minimum Order Quantity:
- 8 piece
- EAN:
- 8719874452076
- ETIM 8:
- EC002883 - Charging device E-Mobility
- UNSPSC:
- 25175002
- IDEA Granular Category Code (IGCC):
- 1311 >> Electric vehicle charging station
Additional Information
- Declaration of Conformity - CE:
- 9AKK107991A0511
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- Declaration:
- CE, UL
- Standards:
- EN 61851-1
EN 61851-23
EN 61000-6-2
EN 61000-6-3
EN 301 908-2
IEC 60721-3-2: IE23
RoHS
Datasheet - PDF
