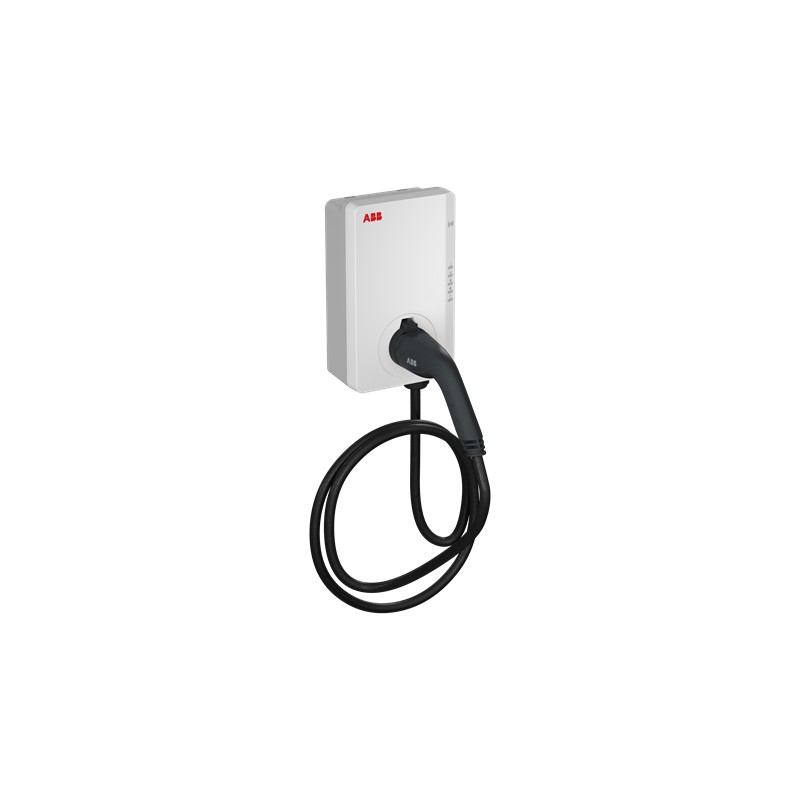

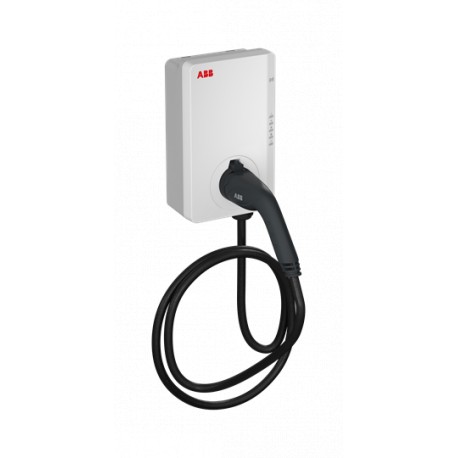

6AGC082155 ABB TAC-7.4kW,cable 5m,1F32A,RFiD
6AGC082155
ABB
TAC-7.4kW,cable 5m,1F32A,RFiD
TAC-W7-G5-R-0 Terra AC wallbox type 2, cable 5m, 1-phase/32 A, with RFID
Industrial socket/plug applications > Charging device E-Mobility
AC chargers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| EV Connectors | (AC Type 2) 1 piece |
| Number of Socket Outlets | Cable only |
| Cable Length | 5 m |
| Output Power | Nominal 7 kW |
| Output Voltage (Uout) | AC 1-phase 184 ... 276 V |
| Output Current Maximum (Iout) | AC 1-phase 32 A |
| Connection Power | Nominal 7 kW |
| Input Voltage (Uin) | AC 1-phase 184 ... 276 V |
| Input Current | 1-phase 32 A |
| Frequency (f) | 50 ... 60 Hz |
| Number of Phases | 1-phase |
| Connection Configuration | TT, TN |
| Number of RCDs Electric Vehicle Supply Equipment | Resid. Curr. Monitor |
| Number of Miniature Circuit Breakers (MCBs) | Integrated brreaker |
| Surge Suppression | Included |
| Overvoltage Category | III |
| Overload Protection | Overcurrent protection at 40 A |
| Cross-Section (Across) | 6 … 6 mm² |
| Ambient Air Temperature | Operation -30 ... +50 °C |
| Storage -50 ... +80 °C | |
| Maximum Operating Altitude Permissible | 2000 m |
| Communication Interface | Wi-Fi |
| Ethernet | |
| Bluetooth | |
| Modbus | |
| Communication Protocol | OCPP 1.6 |
| Load Management Method | OCPP - Based |
| Authentication Method | RFID |
| App | |
| Free Vending | |
| Energy Meter Type | AC |
| Enclosure Type | indoor, outdoor |
| Mounting Type | Wall mounting |
| Housing Material | Plastic |
| Degree of Protection | acc. to IEC 60529 IP54 |
| Impact Resistance Rating | IK08 |
| Technical Information | Features: DC residual current detection |
| Contactor welding detection | |
| Networkable via LAN | |
| Networkable via Wi-Fi | |
| Long-Term Evolution (LTE) | |
| Static load management integrated | |
| Suitable for dynamic load management | |
| With Display | |
| Operation and configuration by app | |
| Export of charging logs | |
| Backend included in delivery | |
| Dimensions | |
| Product Net Width | 195 mm |
| Product Net Depth / Length | 320 mm |
| Product Net Height | 110 mm |
| Product Net Weight | 4.1 kg |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Width | 350 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 450 mm |
| Package Level 1 Gross Weight | 5.6 kg |
| Package Level 1 EAN | 8719874450935 |
| Package Level 2 Units | pallet (lift) 18 piece |
| Package Level 2 Width | 830 mm |
| Package Level 2 Height | 1150 mm |
| Package Level 2 Depth / Length | 1130 mm |
| Package Level 2 Gross Weight | 119.7 kg |
| Ordering | |
| Country or Territory of Origin | China |
| Customs Tariff Number | 85371091 |
| Selling Unit of Measure | piece |
| Minimum Order Quantity | 6 piece |
| Order Multiple | 6 piece |
| EAN | 8719874450935 |
| ETIM 9 | EC002883 - Charging device E-Mobility |
| UNSPSC | 25175002 |
| IDEA Granular Category Code (IGCC) | 1311 >> Electric vehicle charging station |
| Additional Information | |
| Declaration of Conformity - CE | 9AKK108467A2511 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Standards | EN 61851-1 |
| EN 61851-23 | |
| EN 61000-6-2 | |
| EN 61000-6-3 | |
| EN 301 908-2 | |
| IEC 60721-3-2: IE23 | |
| RoHS | |
