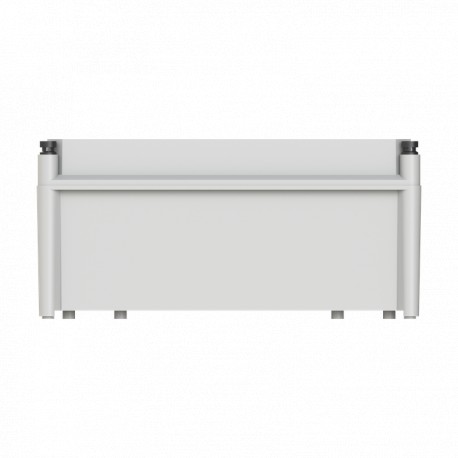

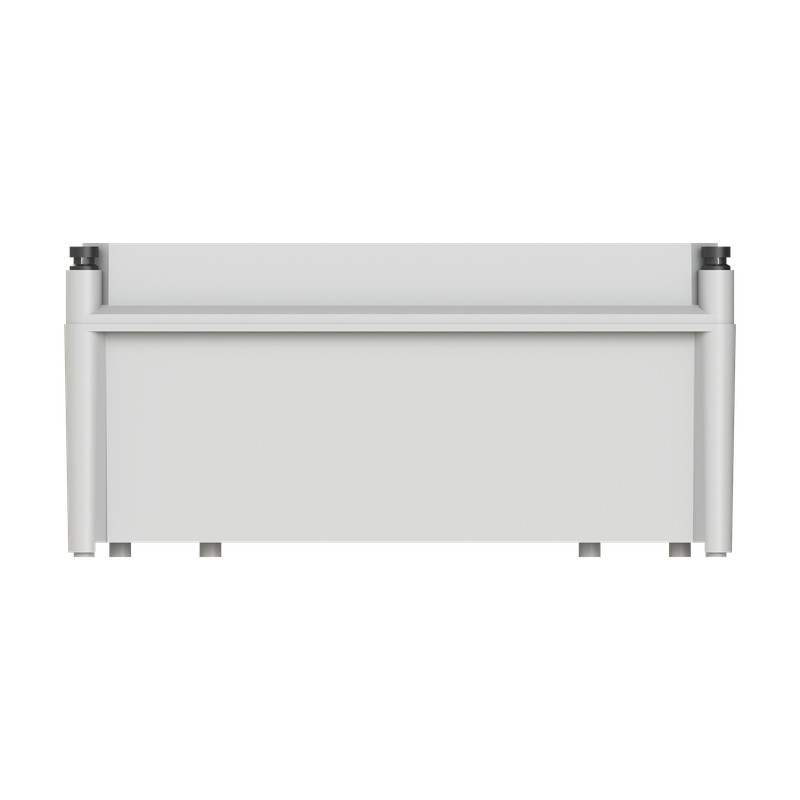

4TBO856055C0100 ABB APO 11 FULL GREY LID
4TBO856055C0100
ABB
APO 11 - FULL GREY LID
APO 11 BOX (GREY COVER) RAL7035;APO 11 Box (grey cover) RAL7035
Distribution boards > Empty cabinet
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Often bought together
▲Best sellers
▲More info
▲b'
General Information
AP11P
4TBO856055C0100
5411815248900
APO 11 Box (grey cover) RAL7035
APO 11 BOX (GREY COVER) RAL7035;APO 11 Box (grey cover) RAL7035
Ordering
5411815248900
1 piece
8538100090
Dimensions
372 mm
603 mm
175 mm
5.08 kg
Container Information
box 1 piece
372 mm
175 mm
603 mm
5.08 kg
5411815248900
Additional Information
Grey
Cover
IP67
Plastic
Surface mounted (plaster)
APO
APO 11 Box (grey cover) RAL7035 ; AP11P
856055
Untreated
Certificates and Declarations (Document Number)
Classifications
EC000058 - Empty cabinet
Product Not in WEEE Scope
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Type of covering (EF000339) | Cover |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | Single |
| Transparent cover/door (EF006244) | No |
| With lock (EF006306) | No |
| Height (EF000040) | 175 mm |
| Width (EF000008) | 372 mm |
| Depth (EF000049) | 603 mm |
| Built-in depth (EF000218) | 140 mm |
| Inner depth (EF001131) | 120 mm |
| Material plate thickness cabinet (EF009170) | 3.5 mm |
| Material plate thickness door/cover (EF009171) | 3 mm |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Extension possible (EF001088) | Yes |
| Number of conduit inlets (EF000437) | 0 |
| Housing material (EF001596) | Plastic |
| Surface protection (EF000139) | Untreated |
| With mounting plate (EF000118) | No |
| Suitable for outdoor use (EF003532) | Yes |
| Suitable for lightning protection (EF007800) | No |
| Degree of protection (IP) (EF005474) | IP67 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Protection class according to IEC 61140 (EF000004) | II |
| Impact strength (EF004293) | IK10 |
| Circuit integrity (EF001613) | None |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
