ABBBoxes and cabinets4TBO856053C0100 ABB APO 81 FULL CAP RAL7035

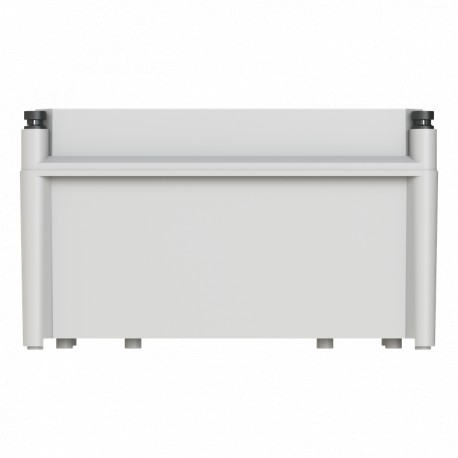

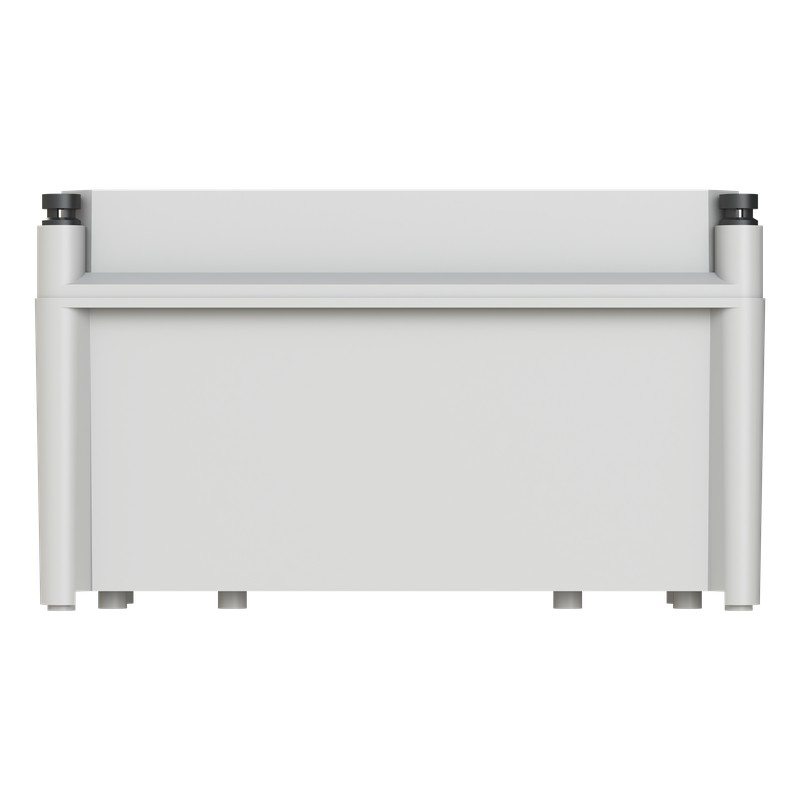

ABB 4TBO856053C0100 4TBO856053C0100 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

4TBO856053C0100 ABB APO 81 FULL CAP RAL7035

Reference: 4TBO856053C0100

Manufacturer: ABB

Description:

APO 81 FULL CAP RAL7035
APO 81 BOX (GREY COVER) RAL7035

Categories:

  • Distribution boards > Empty cabinet
  • ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 71,91 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Additional Information
Accessories AvailableYes
Built-In Depth (t2)140 mm
CAD Dimensional Drawing4TBO856053C0100STP
CN885381000
ColorGrey
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
Country or Territory of OriginPoland
Cover Plate TypeCover
Cover StyleClosed
Customs Tariff Number85381000
Data Sheet, Technical Information9AKK107680A5160
Declaration of Conformity - CE9AJK000581
Degree of ProtectionIP67
Door TypeSingle
EAN5411815248887
ETIM 10EC000058 - Empty cabinet
ETIM 7EC000058 - Empty cabinet
ETIM 8EC000058 - Empty cabinet
ETIM 9EC000058 - Empty cabinet
EU Data Act Applicability and ComplianceNot Applicable
Enclosure Type NEMAType12
Gross Weight4.6 kg
Housing MaterialPlastic
Impact Resistance RatingIK08
Interior Depth120 mm
Invoice DescriptionAPO 81 BOX (GREY COVER) RAL7035
Minimum Order QuantityBX 1 piece
Mounting TypeSurface mounted
Number of Conduit Inlets0
Package Level 1 Depth / Length560 mm
Package Level 1 EAN5411815248887
Package Level 1 Gross Weight4.6 kg
Package Level 1 Height262 mm
Package Level 1 Unitsbox 1 piece
Package Level 1 Width305 mm
Package Level 3 Depth / Length1200 mm
Package Level 3 Gross Weight181.1 kg
Package Level 3 Height1500 mm
Package Level 3 Unitspallet (lift) 40 piece
Package Level 3 Width800 mm
Product Main TypeAPO
Product NameAPO 81 BOX (GREY COVER) RAL7035 ; AP81P
Product Net Depth / Length558 mm
Product Net Height175 mm
Product Net Weight4.3 kg
Product Net Width302 mm
Protection ClassIsolated (Class II)
RAL NumberRAL 7035 - Light Grey
REACH Date20230911
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
Replaced Product ID (OLD)856053
RoHS Date20220616
RoHS Declaration9AJK000581
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Selling Unit of Measurepiece
Short DescriptionAPO 81 BOX (GREY COVER) RAL7035
Surface FinishingUntreated
ThicknessCabinet Plate 3.5 mm
Door Plate 3 mm
WEEE CategoryProduct Not in WEEE Scope
eClassV11.0 : 27142408
Product KeywordsNot Available

ETIM for 4TBO856053C0100 Distribution boards (EC000058)

Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameType of covering (EF000339)
Feature valueCover
Feature nameCover model (EF009212)
Feature valueClosed
Feature nameType of door (EF004464)
Feature valueSingle
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameHeight (EF000040)
Feature value175 mm
Feature nameWidth (EF000008)
Feature value302 mm
Feature nameDepth (EF000049)
Feature value558 mm
Feature nameBuilt-in depth (EF000218)
Feature value140 mm
Feature nameInner depth (EF001131)
Feature value120 mm
Feature nameMaterial plate thickness cabinet (EF009170)
Feature value3.5 mm
Feature nameMaterial plate thickness door/cover (EF009171)
Feature value3 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameExtension possible (EF001088)
Feature valueYes
Feature nameNumber of conduit inlets (EF000437)
Feature value0
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameSuitable for outdoor use (EF003532)
Feature valueYes
Feature nameSuitable for lightning protection (EF007800)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameDegree of protection (NEMA) (EF011959)
Feature value12
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueII
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameCircuit integrity (EF001613)
Feature valueNone
