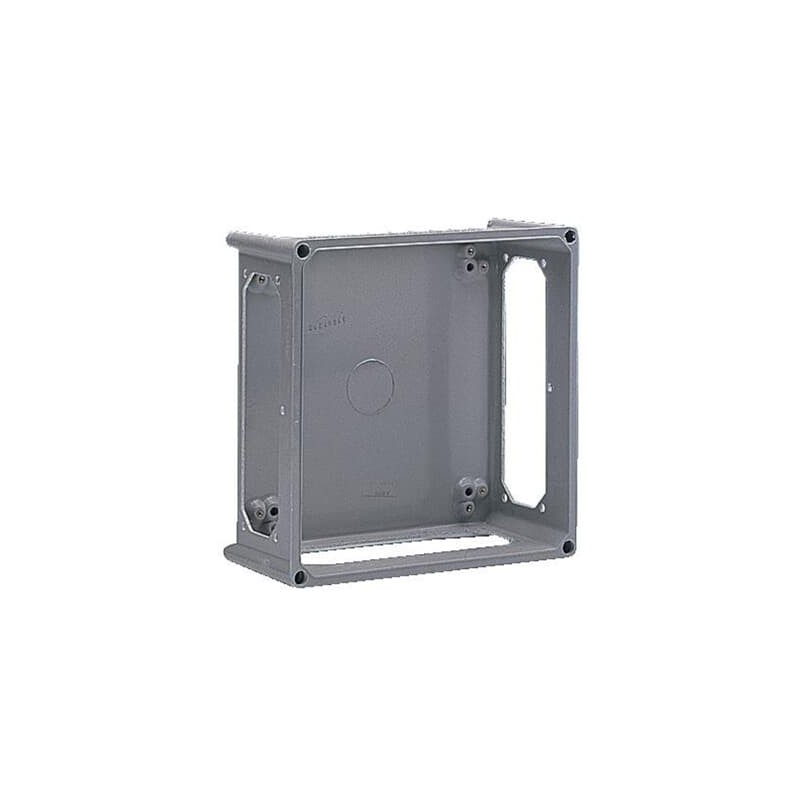

ABB 4TBO856019C0100 4TBO856019C0100 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

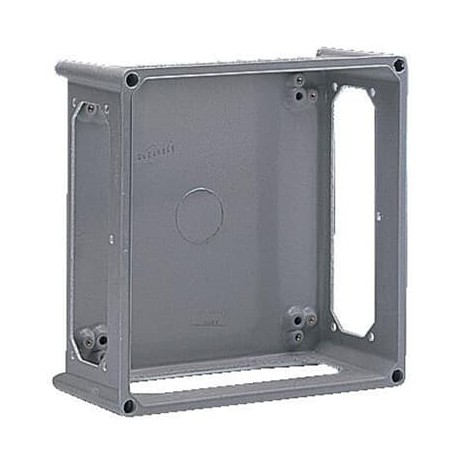

4TBO856019C0100 ABB APO 71 Base 4 open sides RAL7035

Reference: 4TBO856019C0100

Manufacturer: ABB

Description:

APO 71 Base 4 open sides RAL7035
APO 71 BASE 4 OPEN SIDES RAL7035

Categories:

  • Distribution boards > Empty cabinet
  • ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 27,59 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Number of Flange Openings4
Number of Conduit Inlets0
Cover Plate TypeOptional
Enclosure Type NEMAType12
Door TypeWithout Door
Accessories AvailableYes
Design
Surface FinishingUntreated
Housing MaterialPlastic
RAL NumberRAL 7035 - Light Grey
ColorGrey
Material Compliance
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Environmental
Degree of ProtectionIP67
Protection ClassIsolated (Class II)
Dimensions
Product Net Width302 mm
Product Net Height131 mm
Product Net Depth / Length372 mm
Product Net Weight0.1 kg
Built-In Depth (t2)120 mm
ThicknessCabinet Plate 3.5 mm
Door Plate 3 mm
Ordering
Package Level 1 Unitsbox 4 piece
Package Level 1 Gross Weight0.4 kg
Replaced Product ID (OLD)856019
Certificates and Declarations
Installation
Mounting TypeSurface mounted
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC000058 - Empty cabinet
ETIM 10EC000058 - Empty cabinet
eClassV11.0 : 27142408

ETIM for 4TBO856019C0100 Distribution boards (EC000058)

Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameType of covering (EF000339)
Feature valueOptional
Feature nameCover model (EF009212)
Feature valueNone
Feature nameType of door (EF004464)
Feature valueNone
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameHeight (EF000040)
Feature value131 mm
Feature nameWidth (EF000008)
Feature value302 mm
Feature nameDepth (EF000049)
Feature value372 mm
Feature nameBuilt-in depth (EF000218)
Feature value120 mm
Feature nameInner depth (EF001131)
Feature value120 mm
Feature nameMaterial plate thickness cabinet (EF009170)
Feature value3.5 mm
Feature nameMaterial plate thickness door/cover (EF009171)
Feature value3 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameNumber of openings for flange plates (EF009554)
Feature value4
Feature nameExtension possible (EF001088)
Feature valueYes
Feature nameNumber of conduit inlets (EF000437)
Feature value0
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameSuitable for outdoor use (EF003532)
Feature valueNo
Feature nameSuitable for lightning protection (EF007800)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameDegree of protection (NEMA) (EF011959)
Feature value12
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueII
Feature nameImpact strength (EF004293)
Feature valueOther
Feature nameCircuit integrity (EF001613)
Feature valueNone
