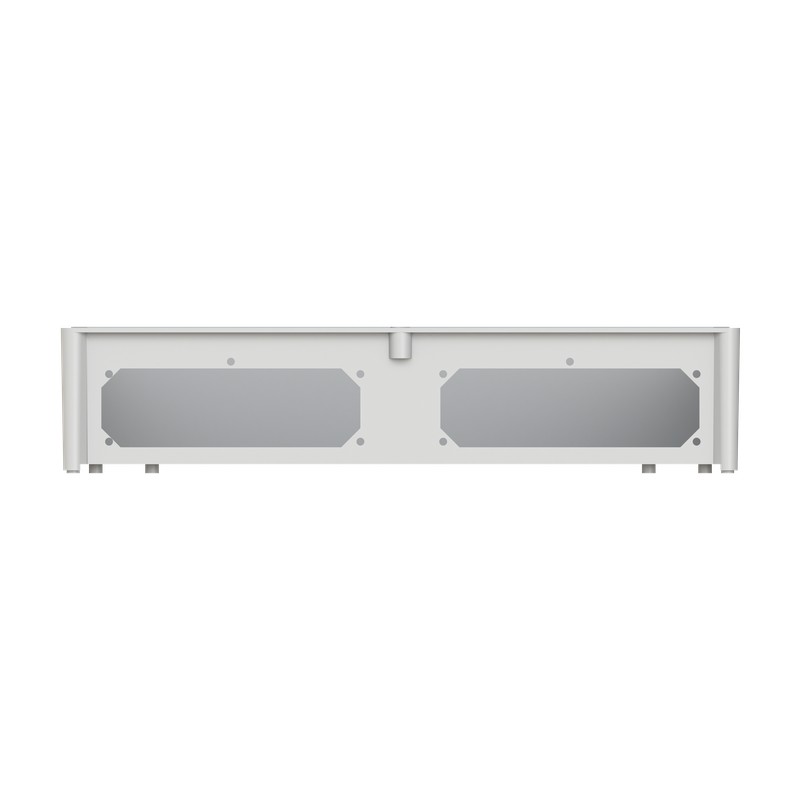

ABB 4TBO856016C0100 4TBO856016C0100 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

4TBO856016C0100 ABB APO 12 BASE 2 OPEN WALLS

Reference: 4TBO856016C0100

Manufacturer: ABB

Description:

APO 12 - BASE 2 OPEN WALLS

APO 12 BASE 2 OPEN SIDES RAL7035

Categories:

Distribution boards > Empty cabinet
ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

Unit Price: 66,08 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Technical
Number of Flange Openings	2
Number of Conduit Inlets	0
Cover Plate Type	Optional
Enclosure Type NEMA	Type12
Door Type	Without Door
Accessories Available	No
Design
Surface Finishing	Untreated
Housing Material	Plastic
RAL Number	RAL 7035 - Light Grey
Color	Grey
Material Compliance
REACH Declaration	9AJK000617
REACH Information	False - does not contain substances > 0.1 mass percentage
REACH Date	20230911
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
WEEE Category	Product Not in WEEE Scope
Environmental
Degree of Protection	IP67
Protection Class	Isolated (Class II)
Dimensions
Product Net Width	603 mm
Product Net Height	131 mm
Product Net Depth / Length	603 mm
Product Net Weight	4.1 kg
Built-In Depth (t₂)	140 mm
Thickness	Cabinet Plate 3.5 mm
	Door Plate 3 mm
Ordering
Package Level 1 Units	box 2 piece
Package Level 1 Gross Weight	8.7 kg
Replaced Product ID (OLD)	856016
Certificates and Declarations
Installation
Mounting Type	Surface mounted
Popular Downloads
Data Sheet, Technical Information	9AKK107680A5160
External Classifications and Standards
ETIM 9	EC000058 - Empty cabinet
ETIM 10	EC000058 - Empty cabinet
eClass	V11.0 : 27142408
