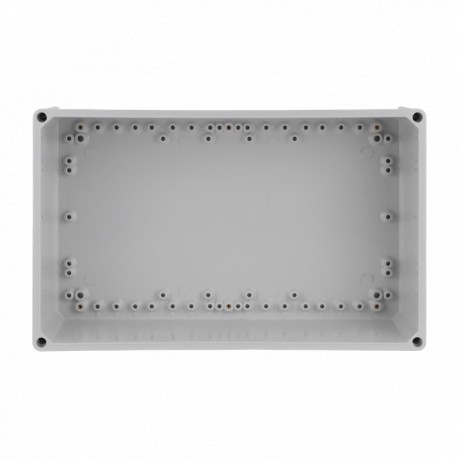

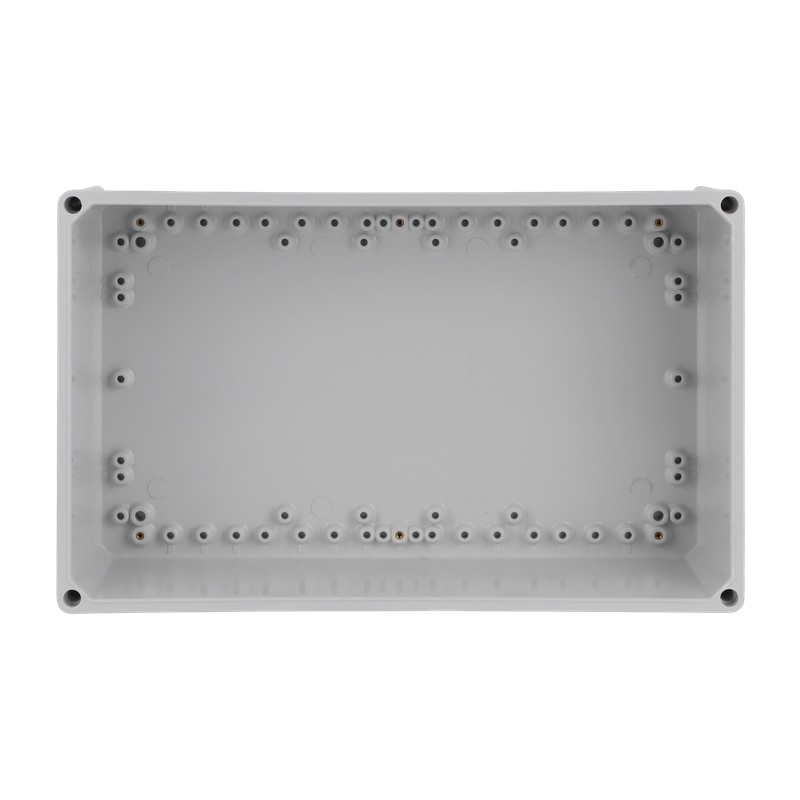

4TBO856004C0100 ABB APO 51 BASE FULL WALLS
4TBO856004C0100
ABB
APO 51 - BASE FULL WALLS
APO 51 BASE RAL7035
Distribution boards > Empty cabinet
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Additional Information | |
|---|---|
| Accessories Available | No |
| Built-In Depth (t2) | 140 mm |
| CAD Dimensional Drawing | 4TBO856004C0100STP |
| CN8 | 85381000 |
| Color | Grey |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Poland |
| Cover Plate Type | Optional |
| Customs Tariff Number | 85381000 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| Degree of Protection | IP67 |
| Door Type | Without Door |
| E-Number (Norway) | 2521675 |
| EAN | 5411815248399 |
| ETIM 10 | EC000058 - Empty cabinet |
| ETIM 7 | EC000058 - Empty cabinet |
| ETIM 8 | EC000058 - Empty cabinet |
| ETIM 9 | EC000058 - Empty cabinet |
| EU Data Act Applicability and Compliance | Not Applicable |
| Enclosure Type NEMA | Type12 |
| Gross Weight | 1.1 kg |
| Housing Material | Plastic |
| Impact Resistance Rating | IK08 |
| Interior Depth | 120 mm |
| Invoice Description | APO 51 BASE RAL7035 |
| Minimum Order Quantity | BX 2 piece |
| Mounting Type | Surface mounted |
| Number of Conduit Inlets | 0 |
| Package Level 1 Depth / Length | 490 mm |
| Package Level 1 EAN | 5411815248399 |
| Package Level 1 Gross Weight | 2.2 kg |
| Package Level 1 Height | 262 mm |
| Package Level 1 Units | box 2 piece |
| Package Level 1 Width | 305 mm |
| Package Level 3 Depth / Length | 1200 mm |
| Package Level 3 Gross Weight | 51.99 kg |
| Package Level 3 Height | 1790 mm |
| Package Level 3 Units | pallet (lift) 48 piece |
| Package Level 3 Width | 800 mm |
| Product Main Type | APO |
| Product Name | Box |
| Product Net Depth / Length | 488 mm |
| Product Net Height | 131 mm |
| Product Net Weight | 1.1 kg |
| Product Net Width | 302 mm |
| Protection Class | Isolated (Class II) |
| RAL Number | RAL 7035 - Light Grey |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 856004 |
| Selling Unit of Measure | piece |
| Short Description | APO 51 BASE RAL7035 |
| Surface Finishing | Untreated |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 3 mm | |
| WEEE Category | Product Not in WEEE Scope |
| eClass | V11.0 : 27142408 |
| Product Keywords | Not Available |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Type of covering (EF000339) | Optional |
| Cover model (EF009212) | None |
| Type of door (EF004464) | None |
| Transparent cover/door (EF006244) | No |
| With lock (EF006306) | No |
| Height (EF000040) | 131 mm |
| Width (EF000008) | 302 mm |
| Depth (EF000049) | 488 mm |
| Built-in depth (EF000218) | 140 mm |
| Inner depth (EF001131) | 120 mm |
| Material plate thickness cabinet (EF009170) | 3.5 mm |
| Material plate thickness door/cover (EF009171) | 3 mm |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Extension possible (EF001088) | Yes |
| Number of conduit inlets (EF000437) | 0 |
| Housing material (EF001596) | Plastic |
| Surface protection (EF000139) | Untreated |
| With mounting plate (EF000118) | No |
| Suitable for outdoor use (EF003532) | No |
| Suitable for lightning protection (EF007800) | No |
| Degree of protection (IP) (EF005474) | IP67 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Protection class according to IEC 61140 (EF000004) | II |
| Impact strength (EF004293) | Other |
| Circuit integrity (EF001613) | None |
