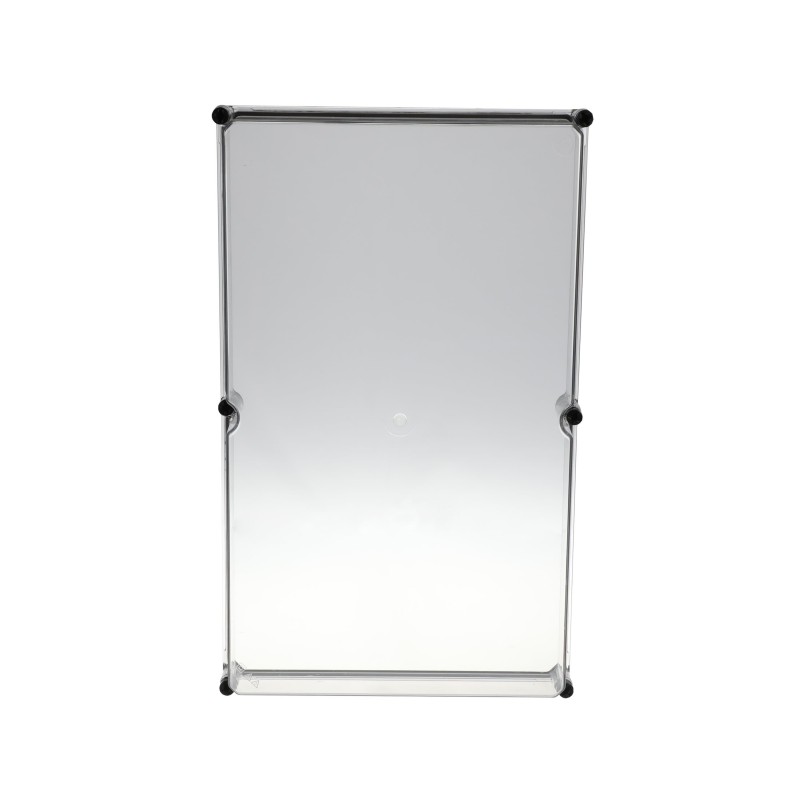

4TBO851290C0100 ABB TRANSPARENT COVER APO-11 600x370x80
4TBO851290C0100
ABB
TRANSPARENT COVER APO-11 600x370x80
APO 11 COVER (Polycarbonate)
Distribution boards > Cover for distribution board
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Additional Information | |
|---|---|
| Accessories Available | No |
| CAD Dimensional Drawing | 4TBO851290C0100STP |
| CN8 | 8538909999 |
| Color | Grey |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Belgium |
| Customs Tariff Number | 8538909999 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| Degree of Protection | IP67 |
| E-Number (Norway) | 2521697 |
| EAN | 5411815247255 |
| ETIM 10 | EC000775 - Cover for distribution board |
| ETIM 7 | EC000775 - Cover for distribution board |
| ETIM 8 | EC000775 - Cover for distribution board |
| ETIM 9 | EC000775 - Cover for distribution board |
| EU Data Act Applicability and Compliance | Not Applicable |
| Gross Weight | 1.6 kg |
| Invoice Description | APO 11 COVER (Polycarbonate) |
| Material | Plastic |
| Minimum Order Quantity | BX 2 piece |
| Package Level 1 Depth / Length | 605 mm |
| Package Level 1 EAN | 5411815247255 |
| Package Level 1 Gross Weight | 3.2 kg |
| Package Level 1 Height | 165 mm |
| Package Level 1 Units | box 2 piece |
| Package Level 1 Width | 375 mm |
| Package Level 3 Depth / Length | 1200 mm |
| Package Level 3 Gross Weight | 75.79 kg |
| Package Level 3 Height | 1200 mm |
| Package Level 3 Units | pallet (lift) 48 piece |
| Package Level 3 Width | 800 mm |
| Product Main Type | APO |
| Product Name | APO 11 COVER (Polycarbonate) ; AP11TC |
| Product Net Depth / Length | 603 mm |
| Product Net Height | 80 mm |
| Product Net Weight | 1.5 kg |
| Product Net Width | 372 mm |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 851290 |
| SCIP | b1100f0e-e5fe-4352-9d3d-da58240984c9 Belgium |
| Selling Unit of Measure | piece |
| Short Description | APO 11 COVER (POLYCARBONATE) |
| WEEE Category | Product Not in WEEE Scope |
| eClass | V11.0 : 27142414 |
| Product Keywords | Not Available |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 80 mm |
| Width (EF000008) | 372 mm |
| Depth (EF000049) | 603 mm |
| Material (EF002169) | Plastic |
| Hinging (EF001076) | No |
| Quick locking (EF001146) | No |
| Degree of protection (IP) (EF005474) | IP67 |
| Colour (EF000007) | Grey |
| Transparent (EF006243) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
