4TBO851123C0100 ABB EASEL (Bag 10 pcs)
4TBO851123C0100
ABB
EASEL (Bag 10 pcs)

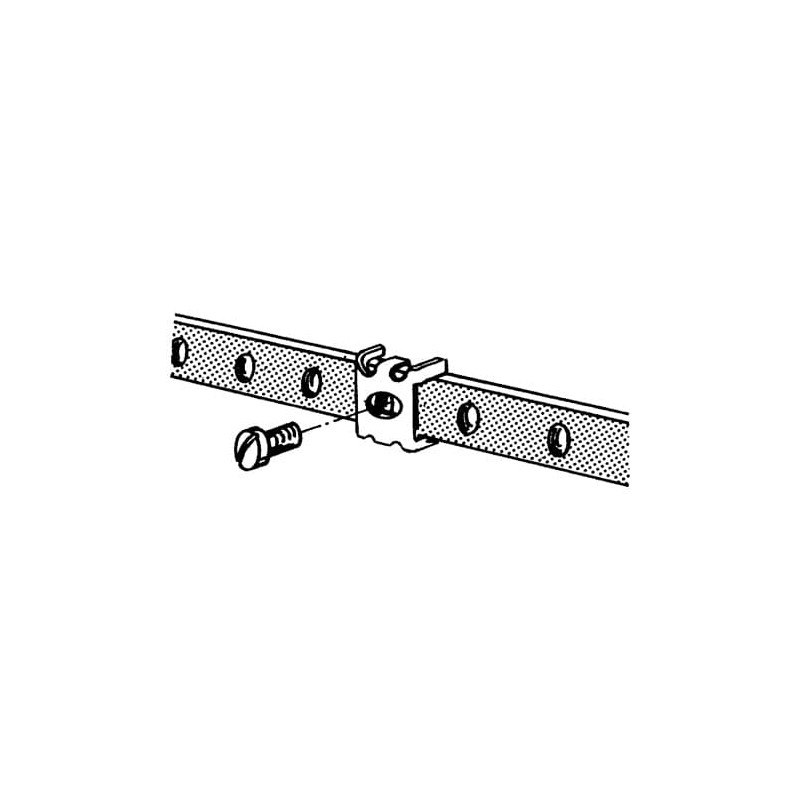

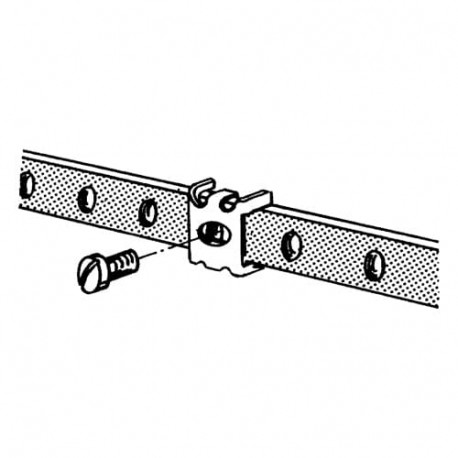

CONNECTOR FOR BARS 12 x 5
Energy distribution systems > Earthing rail for distribution board
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Accessories Available | No |
| Design | |
| Material | Copper |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Dimensions | |
| Product Net Width | 13 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 50 mm |
| Product Net Weight | 0.1 kg |
| Thickness | 5 mm |
| Ordering | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Gross Weight | 0.2 kg |
| Replaced Product ID (OLD) | 851123 |
| Installation | |
| Popular Downloads | |
| External Classifications and Standards | |
| ETIM 9 | EC000329 - Earthing rail for distribution board |
| ETIM 10 | EC000329 - Earthing rail for distribution board |
| eClass | V11.0 : 27400605 |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Copper |
| Rail width (EF003704) | 13 mm |
| Horizontal mounting (EF006051) | No |
| Vertical mounting (EF024092) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
| 4TBO851123C0100 4TBO851123C0100 EN_4TBO851123C0100.pdf | 92 Kbytes |
|
