ABBBoxes and cabinets4TBA831809C0100 ABB WARDROBE ARIA 54 2SEVERAL 3mm

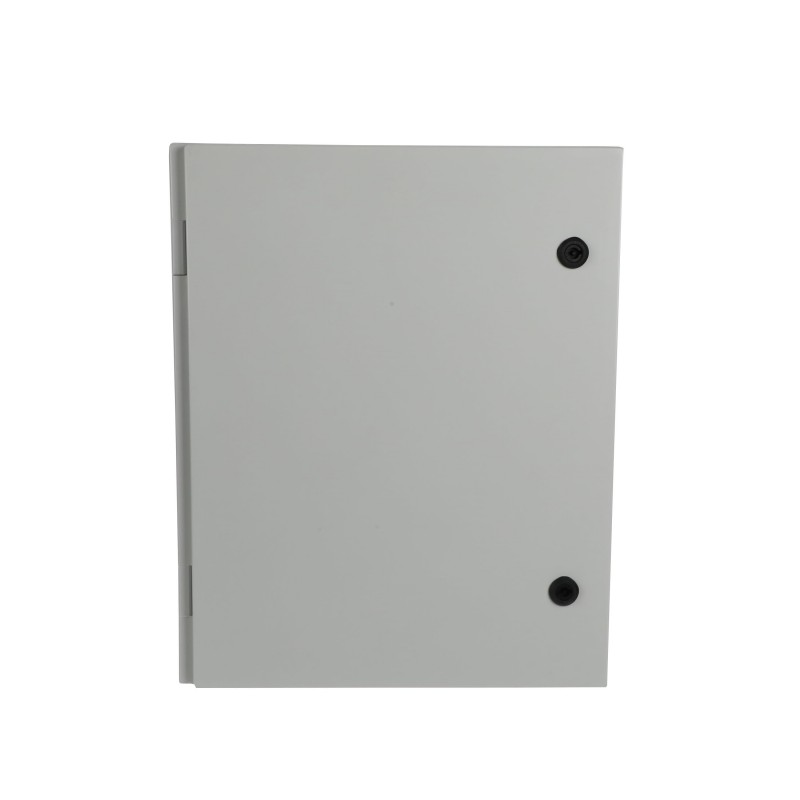

ABB 4TBA831809C0100 4TBA831809C0100 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

4TBA831809C0100 ABB WARDROBE ARIA 54 2SEVERAL 3mm

Reference: 4TBA831809C0100

Manufacturer: ABB

Description:

WARDROBE ARIA 54 2SEVERAL 3mm
ARIA 54 CABINET 2PLS DB 3MM

Categories:

  • Distribution boards > Empty cabinet
  • ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 131,89 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Maximum Load CapacityEnclosure 1334.16 N
Door(s) 78.48 N
Mounting Plate 1334.16 N
Number of Flange Openings0
Number of Conduit Inlets0
Number of Doors1
Number of Rows0
Cover Plate TypeDoor
Enclosure Type NEMAType12
Door TypeSingle
Accessories AvailableYes
Impact Resistance RatingIK08
Electrical
Power LossTotal 40 W
Δt = 20K - Enclosures 40 W
Design
Surface FinishingUntreated
Housing MaterialPlastic
MaterialGRP (Glass fibre reinforced plastic)
Cover StyleClosed
RAL NumberRAL 7035 - Light Grey
ColorGrey
Number of Modules0
Material Compliance
RoHS Declaration9AJK000579
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20220302
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Environmental
Degree of ProtectionIP65
Protection ClassIsolated (Class II)
Dimensions
Width in Number of Modular Spacings0
Product Net Width415 mm
Product Net Height515 mm
Product Net Depth / Length230 mm
Product Net Weight7 kg
ThicknessCabinet Plate 3 mm
Door Plate 3 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight7.4 kg
Replaced Product ID (OLD)831809
Certificates and Declarations
Declaration of Conformity - CE9AJK000579
Installation
Mounting TypeSurface mounted
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
2CKA000001A1855
External Classifications and Standards
ETIM 9EC000261 - Enclosure/cabinet (empty)
ETIM 10EC000261 - Enclosure/cabinet (empty)
UNSPSC39121103
eClassV11.0 : 27142408

ETIM for 4TBA831809C0100 Distribution boards (EC000058)

Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameType of covering (EF000339)
Feature valueDoor
Feature nameCover model (EF009212)
Feature valueClosed
Feature nameType of door (EF004464)
Feature valueSingle
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameWith lock (EF006306)
Feature valueYes
Feature nameHeight (EF000040)
Feature value515 mm
Feature nameWidth (EF000008)
Feature value415 mm
Feature nameDepth (EF000049)
Feature value230 mm
Feature nameInner depth (EF001131)
Feature value208 mm
Feature nameMaterial plate thickness cabinet (EF009170)
Feature value3 mm
Feature nameMaterial plate thickness door/cover (EF009171)
Feature value3 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameNumber of modules (EF004427)
Feature value0
Feature nameNumber of rows (EF000266)
Feature value0
Feature nameWidth in number of modular spacings (EF002950)
Feature value0
Feature nameNumber of openings for flange plates (EF009554)
Feature value0
Feature nameExtension possible (EF001088)
Feature valueNo
Feature nameNumber of conduit inlets (EF000437)
Feature value0
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameSuitable for outdoor use (EF003532)
Feature valueYes
Feature nameSuitable for lightning protection (EF007800)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature value12
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueII
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameCover with overpressure release (EF015940)
Feature valueNo
