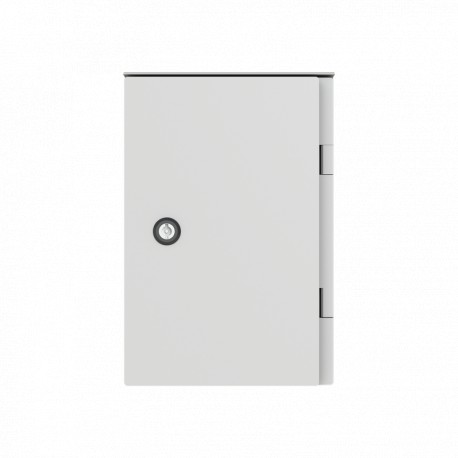

4TBA831025C0100 ABB ARIA 32 WARDROBE
4TBA831025C0100
ABB
ARIA 32 WARDROBE
ARIA 32
Distribution boards > Empty cabinet
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Technical | |
|---|---|
| Maximum Load Capacity | Enclosure 784.8 N |
| Door(s) 29.43 N | |
| Mounting Plate 784.8 N | |
| Number of Flange Openings | 0 |
| Number of Connection Holes | 0 |
| Number of Conduit Inlets | 0 |
| Number of Doors | 1 |
| Number of Rows | 0 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type4X |
| Door Type | Single |
| Accessories Available | Yes |
| Impact Resistance Rating | IK08 |
| Electrical | |
| Power Loss | Total 16 W |
| Δt = 20K 16 W | |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Material | GRP (Glass fibre reinforced plastic) |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 0 |
| Material Compliance | |
| RoHS Declaration | 9AJK000579 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220302 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP66 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 0 |
| Product Net Width | 215 mm |
| Product Net Height | 315 mm |
| Product Net Depth / Length | 170 mm |
| Product Net Weight | 2.8 kg |
| Thickness | Cabinet Plate 3 mm |
| Door Plate 3 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 2.9 kg |
| E-Number (Norway) | 2521500 |
| Replaced Product ID (OLD) | 831025 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000579 |
| Installation | |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| 2CKA000001A1855 | |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| UNSPSC | 39121103 |
| eClass | V11.0 : 27142408 |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | Single |
| Transparent cover/door (EF006244) | No |
| With lock (EF006306) | Yes |
| Height (EF000040) | 315 mm |
| Width (EF000008) | 215 mm |
| Depth (EF000049) | 170 mm |
| Inner depth (EF001131) | 148 mm |
| Material plate thickness cabinet (EF009170) | 3 mm |
| Material plate thickness door/cover (EF009171) | 3 mm |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Number of modules (EF004427) | 0 |
| Number of rows (EF000266) | 0 |
| Width in number of modular spacings (EF002950) | 0 |
| Number of openings for flange plates (EF009554) | 0 |
| Extension possible (EF001088) | No |
| Number of conduit inlets (EF000437) | 0 |
| Housing material (EF001596) | Plastic |
| Surface protection (EF000139) | Untreated |
| With mounting plate (EF000118) | No |
| Suitable for outdoor use (EF003532) | Yes |
| Suitable for lightning protection (EF007800) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Protection class according to IEC 61140 (EF000004) | II |
| Impact strength (EF004293) | IK08 |
| Circuit integrity (EF001613) | None |
| Cover with overpressure release (EF015940) | No |
