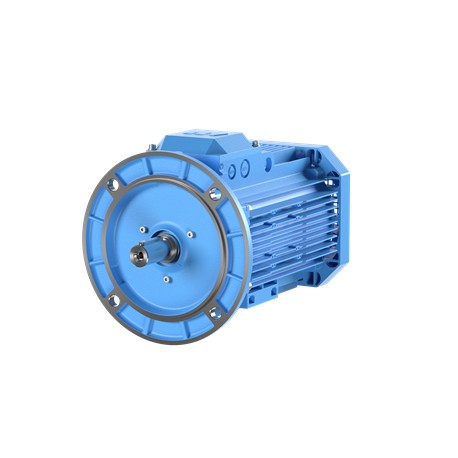

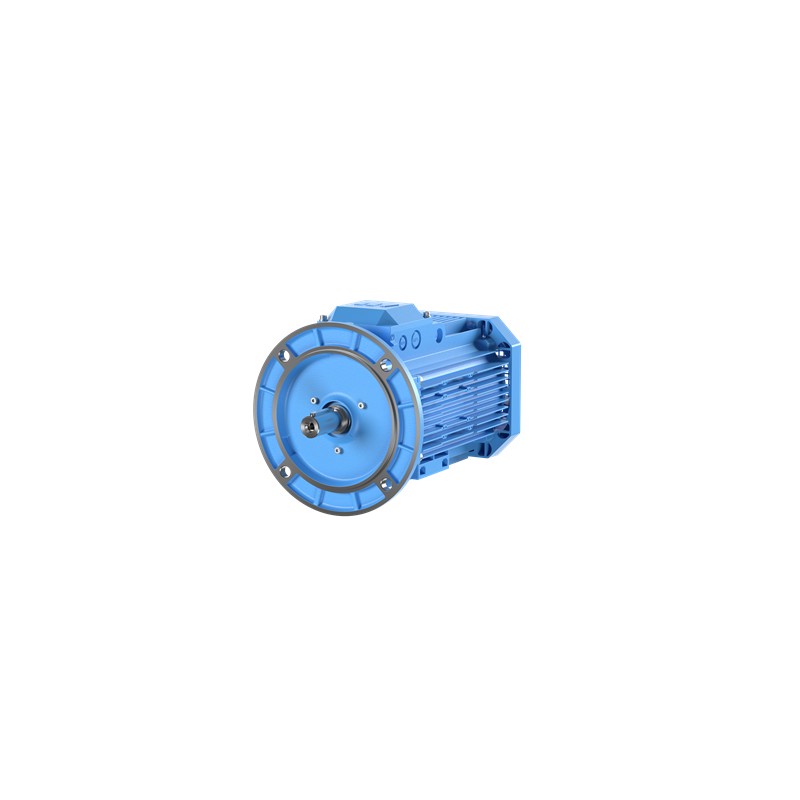

3-Phase squirrel cage motor 1 532.54 532.54 Type code: M3AA 100LE 4 Export control number (ECN): - M3AA 100LE 4 2.20 kW, 1455 r/min, 400 V D, 50 Hz, 4.30 A, cos. phi 0.83 TCLB, 45°C, 1000 m IEC, IP55, IMB5/IM3001, IC411, ICLF 50 Hz: IE3 86.7 (100%) 86.9 (75%) 86.3 (50%) +053 Metal fan cover. +067 External earthing (grounding) bolt. +096 Compliance with Lloyd’s Register of Shipping (LR) requirements, without certificate (non-essential service only). +451 Motor equipped with space heaters for 220–240 V.

More details


Cast iron M2BA and aluminium M3AA motors > M3AA IE3

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $901.21
Unit price: $901.21
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General Information

Product ID:
3GAA102550-BDK
ABB Type Designation:
M3AA 100LE 4
Catalog Description:
IE3 Premium Efficiency Aluminum Motors, 2.2 kW, 400 V (3GAA102550-BDK)

Ordering

ABB Type Designation:
M3AA 100LE 4
M3AA 100LE 4
Invoice Description:
M3AA 100LE 4
Product Name:
3-Phase squirrel cage motor
Product Type:
3AA3__M3AA_IE3_AA
Country or Territory of Origin:
China
Finland
Romania
China
Finland
Romania
Customs Tariff Number:
85015220
85015220
Stocked At (Warehouses):
Menden, Germany
Sant Quirze del Vallés - BCN, Spain
Medium Description:
2.2kW, 4 Poles, Frame Size 100, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GAA102550-BDK)
Short Description:
2.2kW, 4P, Frame Size 100, 3PH, 400V, 50Hz, IP55, IMB5/IM3001

Electrical

Electrical Data:
ConnTemp ClassNetwork FreqNetwork VoltagePowerSpeedCurrentPower FactorEfficiencyTorqueIS/IN
Y
--
50 Hz
690 V
2.20 kW
1455 r/min
2.50 A
0.830
86.70 %
14.40 N·m
8.10
D
--
50 Hz
400 V
2.20 kW
1455 r/min
4.30 A
0.830
86.70 %
14.40 N·m
8.10
Y
--
50 Hz
660 V
2.20 kW
1449 r/min
2.50 A
0.860
86.70 %
14.50 N·m
7.40
D
--
50 Hz
380 V
2.20 kW
1449 r/min
4.40 A
0.860
86.70 %
14.50 N·m
7.40
D
--
50 Hz
415 V
2.20 kW
1459 r/min
4.10 A
0.830
86.70 %
14.40 N·m
8.80
D
--
60 Hz
460 V
2.20 kW
1760 r/min
3.70 A
0.810
89.50 %
11.90 N·m
9.40
Connection Configuration:
D
Temperature Class Default:
--
--
Input Voltage (Uin):
400 V
Frequency (f):
50 Hz
Output Power:
2.2 kW
Altitude:
1000 m
Ambient Temperature:
40 °C
IC Class:
IC411
IE Class Data (50 Hz):
IE Class IE3
Full Load (100%) 86.7 %
Partial Load (75%) 86.6 %
Partial Load (50%) 85.6 %
IE Class IE3
Full Load (100%) 86.7 %
Partial Load (75%) 86.6 %
Partial Load (50%) 85.6 %
IE Class Data (60 Hz):
IE Class IE3
Full Load (100%) 89.5 %
Partial Load (75%) 89.2 %
Partial Load (50%) 87.4 %
IE Class IE3
Full Load (100%) 89.5 %
Partial Load (75%) 89.2 %
Partial Load (50%) 87.4 %
IP Class:
IP55
IP55
Insulation Class:
ICLF
ICLF
Direction of Rotation:
Both sides
Both sides
Number of Poles (High):
4
4
Two Speed Motor:
No
No
Type of Duty:
S1
S1
Voltage Code:
D
D

Mechanical

Frame Material:
Aluminum
Aluminum
Frame Size:
100
100
Bearing:
6306-2Z/C3
6306-2Z/C3
Bearing NDE:
6205-2Z/C3
6205-2Z/C3
IM Class:
IMB5 IM3001
IMB5 IM3001
Terminator Box Location:
D-End top
D-End top

Dimensions

Product Net Depth / Length:
432 mm
432 mm
Product Net Height:
237 mm
237 mm
Product Net Width:
200 mm
200 mm
Product Net Weight:
36 kg
36 kg
Gross Weight:
41 kg
41 kg

Environmental

WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
5. Small Equipment (No External Dimension More Than 50 cm)
SCIP:
27ac6190-e1ce-4080-8654-6552aaabbe58 Finland
27ac6190-e1ce-4080-8654-6552aaabbe58 Finland

External Classifications and Standards

UNSPSC:
26101100
26101100

Datasheet - PDF

▲
