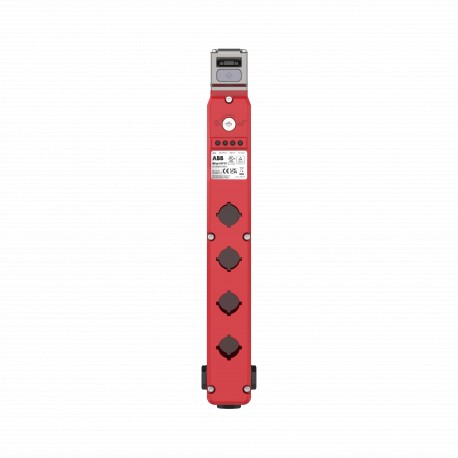

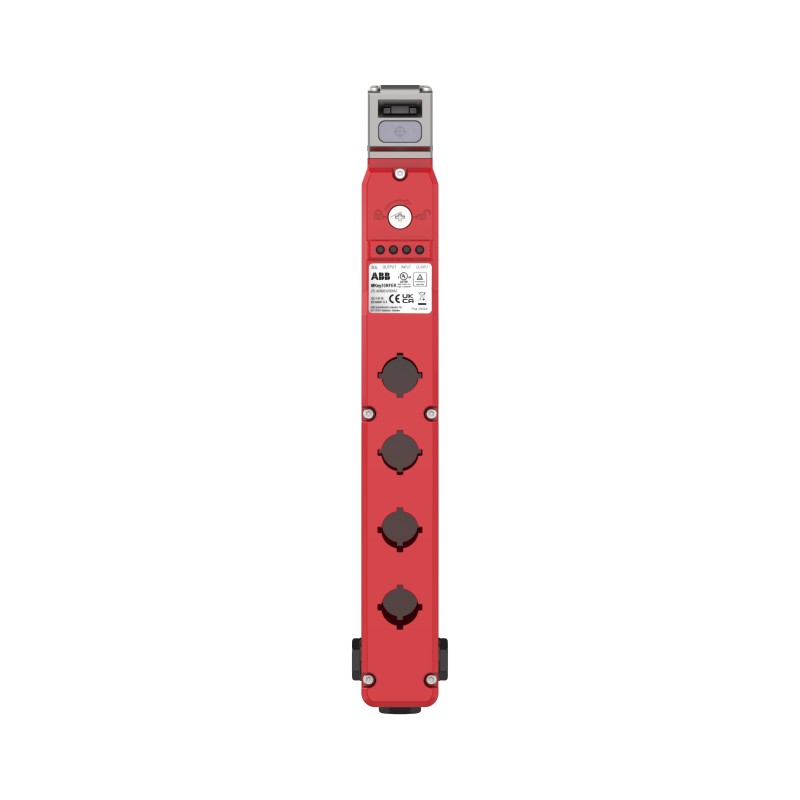

2TLA050012R0652 ABB MKey10RFER without actuator fund. M20 Esc
2TLA050012R0652
ABB
MKey10RFER without actuator fund. M20 Esc
MKey10RFER Die-ca M20 Switch
Fences and rolling doors
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- MKey10RFER Die-ca M20
- Product ID:
- 2TLA050012R0652
- EAN:
- 7350024486902
- Catalog Description:
- MKey10RFER Die-ca M20 Switch
- Long Description:
- Solenoid safety switch with RFID technology reaching PL e or SIL 3 for the interlock function, die cast housing and stainless steel head, 3xM20 conduit entries, 24 V DC power to unlock. Safe lock function reaching PL e or SIL 3 in combination with a suitable accessory. Two safe OSSD inputs and two safe OSSD outputs. The housing can be fitted with up to four 22 mm pilot devices. Equipped with an escape release. Delivered without RFID key.
MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 8536500700
- Product Main Type:
- MKey
- Product Name:
- Switch
- Function:
- Safety mechanical switch for interlocking with locking (Safety)
- Special Functions:
- No key supplied; With auxiliary release; Escape release button; RFID
Popular Downloads
- Data Sheet, Technical Information:
- 2TLC010001C0202
- Instructions and Manuals:
- 2TLC010088M0201
Dimensions
- Product Net Depth / Length:
- 157mm
- Product Net Height:
- 380mm
- Product Net Width:
- 47mm
- Product Net Weight:
- 1.5kg
Safety Information
- Performance Level (PL):
- Up to e
- Safety Integrity Level (SIL):
- 1
2
3
Technical
- Communication Interface:
- OSSD
- Number of Contacts NC:
- 0
- Number of Contacts NO:
- 0
- Rated Control Supply Voltage (Us):
- 24 V DC
Environmental
- Ambient Air Temperature:
- Operation -25 ... 40 °C
- Degree of Protection:
- IP65
- Material:
- Die cast
Certificates and Declarations
- Declaration of Conformity - CCC:
- No declaration needed
- Declaration of Conformity - CE:
- 2TLC010210D0201
- Declaration of Conformity - UKCA:
- 2TLC010211D0201
- UL Certificate:
- 2TLC010020D0201
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 420 mm
- Package Level 1 Depth / Length:
- 70 mm
- Package Level 1 Height:
- 140 mm
- Package Level 1 Gross Weight:
- 1.6 kg
- Package Level 1 EAN:
- 7350024486902
Classifications
- eClass:
- V11.0 : 27270611
- ETIM 7:
- EC002593 - Position switch with guard locking
- ETIM 8:
- EC002593 - Position switch with guard locking
- ETIM 9:
- EC002593 - Position switch with guard locking
- Object Classification Code:
- B
- E-Number (Sweden):
- 3861559
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG SAFETY EN.pdf | 28 Mbytes |
|
| 2TLA050012R0652 2TLA050012R0652 EN_2TLA050012R0652.pdf | 191 Kbytes |
|
