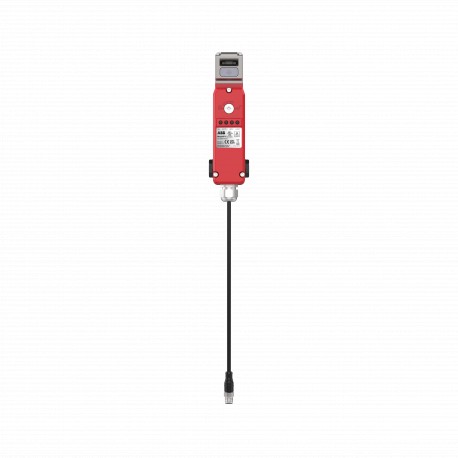

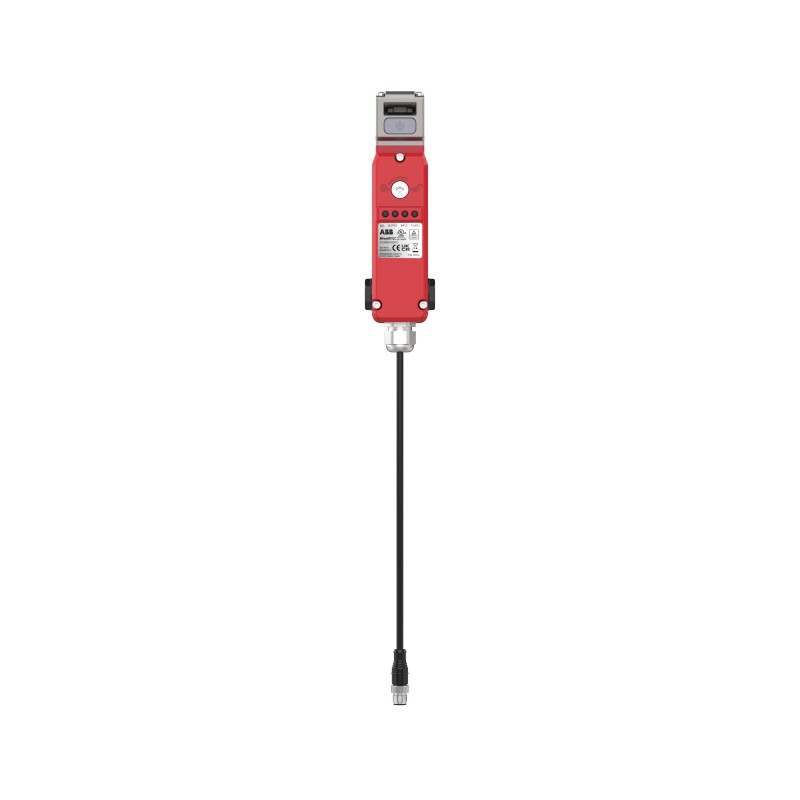

2TLA050011R2612 ABB MKey8RFQC without actuator, cast M12
2TLA050011R2612
ABB
MKey8RFQC without actuator, cast M12
MKey8RFQC Die-cas M12 Switch
Sensors > Position switch with guard locking
Fences and rolling doors
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536500700 |
| Product Main Type | MKey |
| Product Name | Switch |
| Function | Safety mechanical switch for interlocking with locking (Safety) |
| Special Functions | No key supplied; With auxiliary release; RFID |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| EPLAN Data | 9AAC170159_EPLAN |
| Installation | |
| Instructions and Manuals | 2TLC010088M0201 |
| Dimensions | |
| Product Net Depth / Length | 48 mm |
| Product Net Height | 190 mm |
| Product Net Width | 46 mm |
| Product Net Weight | 0.9 kg |
| Safety Information | |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 1 |
| 2 | |
| 3 | |
| Technical | |
| Communication Interface | OSSD |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 40 °C |
| Degree of Protection | IP67 |
| Material | Die cast |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2TLC010210D0201 |
| Declaration of Conformity - UKCA | 2TLC010211D0201 |
| UL Certificate | 2TLC010020D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 260 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Gross Weight | 1 kg |
| Package Level 1 EAN | 7350024486865 |
| External Classifications and Standards | |
| eClass | V11.0 : 27270611 |
| ETIM 7 | EC002593 - Position switch with guard locking |
| ETIM 8 | EC002593 - Position switch with guard locking |
| ETIM 9 | EC002593 - Position switch with guard locking |
| Object Classification Code | B |
| E-Number (Finland) | 2314993 |
| E-Number (Sweden) | 3861557 |
| Feature Name | Feature Value |
|---|---|
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| Guard locking force (EF007552) | 3000 N |
| With escape release (EF007172) | No |
| Type of guard locking (EF012608) | Operating current principle |
| With auxiliary release (EF011964) | Yes |
| Rated control supply voltage magnet drive DC (EF007070) | 24 V |
| Width sensor (EF007094) | 46 mm |
| Height of sensor (EF007283) | 190 mm |
| Length of sensor (EF007334) | 48 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Type of switching contact (EF003591) | Slow-action switch |
| Construction type housing (EF004008) | Special construction |
| Housing material (EF001596) | Metal |
| Coating housing (EF001601) | Powder coated |
| Type of interface (EF006977) | Other |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Other |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP67 |
| Degree of protection (NEMA) (EF011959) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG SAFETY EN.pdf | 42 Mbytes |
|
| 2TLA050011R2612 2TLA050011R2612 EN_2TLA050011R2612.pdf | 151 Kbytes |
|
